Ordering code
Specification
| Model | Working Pressure |
Working Media |
Voltage | Current | Temperature Level |
Relative Humidity |
Diaphragm life |
Diameter | Port Size |
|
| AMF-Y-76S | 0.3~0.85MPa | Clean air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | overone million cycles | Φ76 | G3″ |
| AMF-Z-20 | 0.3~0.85MPa | Clean air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | overone million cycles | Φ20 | G3/4″ |
| AMF-Z-25 | 0.3~0.85MPa | Clean air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | overone million cycles | Φ25 | G1″ |
| AMF-Z-40S | 0.3~0.85MPa | Clean air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | overone million cycles | Φ40 | G1 1/2″ |
| AMF-Z-50S | 0.3~0.85MPa | Clean air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | overone million cycles | Φ50 | G2″ |
| AMF-Z-62S | 0.3~0.85MPa | Clean air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | overone million cycles | Φ62 | G2 1/2″ |
| AMF-Q-20,25 | 0.3~0.85MPa | Clean air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | overone million cycles | Φ20,Φ25 | G3/4″ G1″ |
| AMF-Q-40S | 0.3~0.85MPa | Clean air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | overone million cycles | Φ40 | G1 1/2″ |

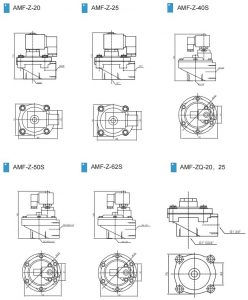

AMF Dimension
