Ordering code
Specification
| Model | Working Pressure |
Working Media |
Voltage | Current | Temperature Level |
Relative Humidity |
Diaphragm life |
Diameter | Port Size |
|
| DMF-Y-25 | 0.1~0.8MPa | Clean Air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | Overone million cycles |
Φ25 | G1″ |
| DMF-Y-40S | 0.1~0.8MPa | Clean Air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | Overone million cycles |
Φ40 | G11/2″ |
| DMF-Y-50S | 0.1~0.8MPa | Clean Air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | Overone million cycles |
Φ50 | G2″ |
| DMF-Y-62S | 0.1~0.8MPa | Clean Air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | Overone million cycles |
Φ62 | G21/2″ |
| DMF-Y-76S | 0.1~0.8MPa | Clean Air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | Overone million cycles |
Φ76 | G3″ |
| DMF-Y-90S | 0.1~0.8MPa | Clean Air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | Overone million cycles |
Φ90 | G31/2″ |
| DMF-Y-102S | 0.1~0.8MPa | Clean Air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | Overone million cycles |
Φ102 | G4″ |
| DMF-Y-112S | 0.1~0.8MPa | Clean Air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | Overone million cycles |
Φ102 | G4″ |
| Model | Working Pressure |
Working Media |
Voltage | Current | Temperature Level |
Relative Humidity |
Diaphragm life |
Diameter | Port Size |
|
| DMF-Z-20 | 0.1~0.8MPa | Clean Air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | Overone million cycles |
Φ20 | G3/4″ |
| DMF-Z-25 | 0.1~0.8MPa | Clean Air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | Overone million cycles |
Φ25 | G1″ |
| DMF-Z-40S | 0.1~0.8MPa | Clean Air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | Overone million cycles |
Φ40 | G11/2″ |
| DMF-Z-50S | 0.1~0.8MPa | Clean Air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | Overone million cycles |
Φ50 | G2″ |
| DMF-Z-62S | 0.1~0.8MPa | Clean Air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | Overone million cycles |
Φ62 | G21/2″ |
| DMF-Z-76S | 0.1~0.8MPa | Clean Air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | Overone million cycles |
Φ76 | G3″ |
| DMF-Z-90S | 0.1~0.8MPa | Clean Air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | Overone million cycles |
Φ90 | G31/2″ |
| DMF-Z-102S | 0.1~0.8MPa | Clean Air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | Overone million cycles |
Φ102 | G4″ |
| DMF-ZL-B | 0.1~0.8MPa | Clean Air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | Overone million cycles |
Φ20 | G3/4″ |
| DMF-ZF-25 | 0.1~0.8MPa | Clean Air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | Overone million cycles |
Φ25 | G1″ |
| DMF-ZF-40S | 0.1~0.8MPa | Clean Air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | Overone million cycles |
Φ40 | G11/2″ |
| DMF-ZM-20 | 0.1~0.8MPa | Clean Air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | Overone million cycles |
Φ20 | G3/4″ |
| DMF-ZM-25 | 0.1~0.8MPa | Clean Air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | Overone million cycles |
Φ25 | G1″ |
| DMF-ZM-40S | 0.1~0.8MPa | Clean Air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | Overone million cycles |
Φ40 | G21/2″ |
| Model | Working Pressure |
Working Media |
Voltage | Current | Temperature Level |
Relative Humidity |
Diaphragm life |
Diameter | Port Size |
|
| DMF-T-20 | 0.1~0.8MPa | Clean Air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A±10% |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | Overone million cycles |
Φ20 | G3/4″ |
| DMF-T-25S | 0.1~0.8MPa | Clean Air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A±10% |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | Overone million cycles |
Φ25 | G1″ |
| DMF-T-40S | 0.1~0.8MPa | Clean Air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A±10% |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | Overone million cycles |
Φ40 | G11/2″ |
| DMF-T-50S | 0.1~0.8MPa | Clean Air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A±10% |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | Overone million cycles |
Φ50 | G2″ |
| DMF-T-62S | 0.1~0.8MPa | Clean Air | AC110V AC220V DC24V |
0.46A 0.23A 0.8A±10% |
1 -25~80℃ -13°F~176°F |
2 -25~230℃ -13°F~446°F |
≤85% | Overone million cycles |
Φ62 | G21/2″ |

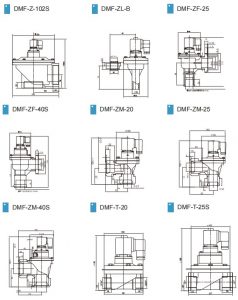

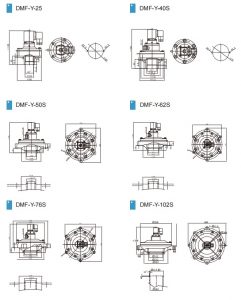

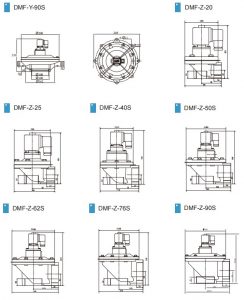

DMF Dimension
