Product Details

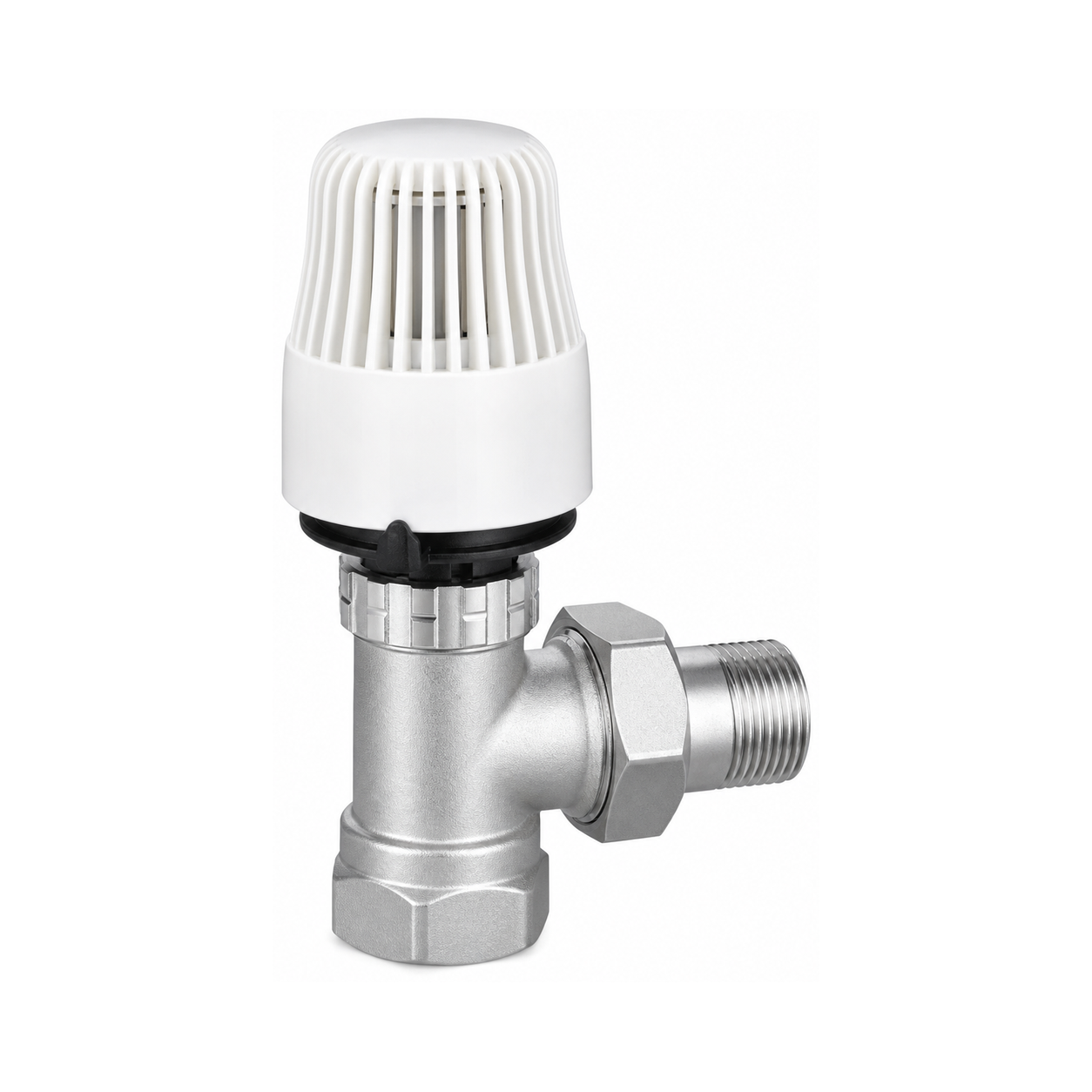

The Angle Type Automatic Thermostatic Control Valve is a radiator-system control valve for automatic room temperature regulation. The angle silver valve body, white thermostatic head, bottom connection, and male threaded side outlet support compact heating-loop installation where space is limited.

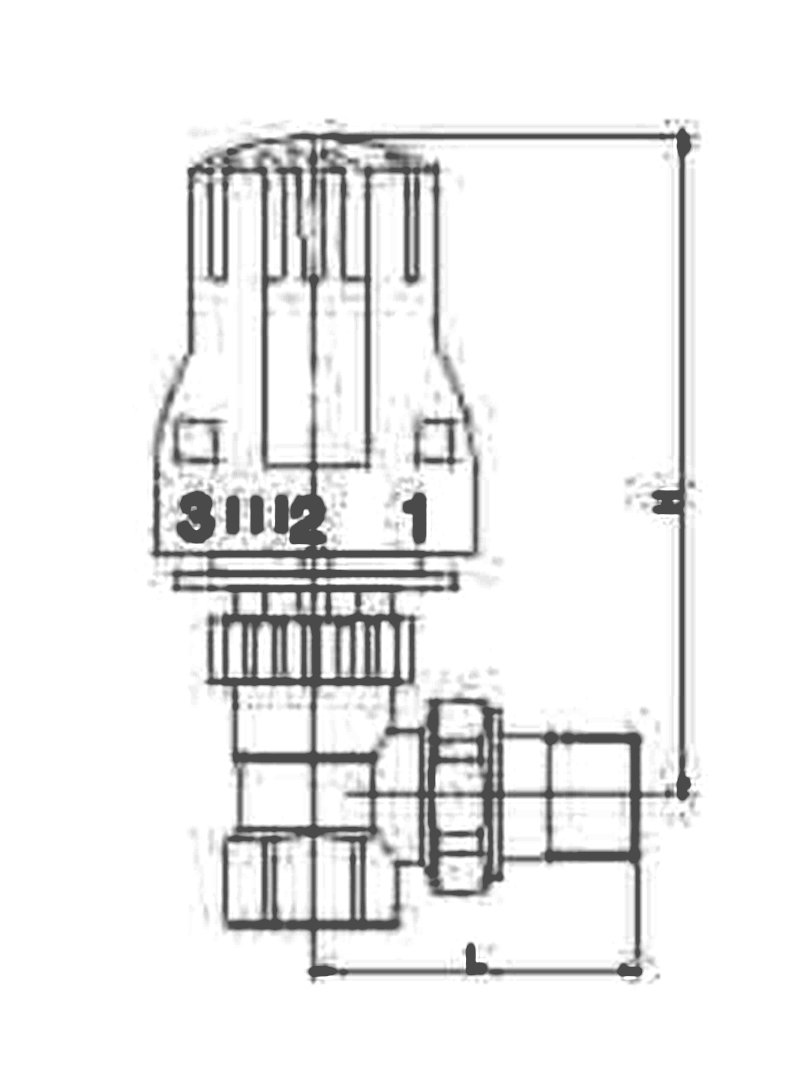

Main Dimensions
| DN | Size | L | d | H | D |
|---|---|---|---|---|---|
| 15 | 1/2" | 54 | 112 | ||
| 20 | 3/4" | 61 | 116 |
Technical Standard
| Item | Specification |
|---|---|
| Normal Pressure | 1.6 MPa |
| Working Medium | Water, heating |
| Working Temperature | T <= 120 C |
| Thread Standard | ISO 228 |
