Specification
• Investment Casting Body, Stainless steel 304 or Stainless steel 316
• Hand Wheel-operated, Locking Device Handle Available
• Thread standard: NPT, BSP, BSPT, DIN259/2999, Rc, Rp
• Working pressure: 200PSI
• Applicable temperature: -29°C~150°C(300°C)
• Applicable Medium: Water, oil, gas Etc

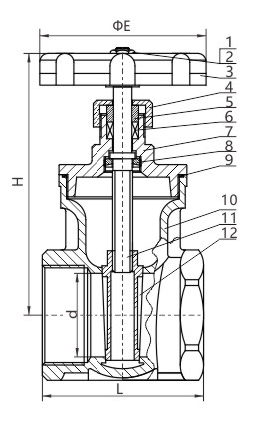

Thread End Gate Valve Dimension
| SIZE | d | L | H | φE | |
| 1/2″ | DN15 | 15 | 54 | 96 | 65 |
| 3/4″ | DN20 | 20 | 58 | 104 | 65 |
| 1″ | DN25 | 25 | 65 | 115 | 72 |
| 1-1/4″ | DN32 | 32 | 73 | 125 | 79 |
| 1-1/2″ | DN40 | 38 | 77 | 147 | 95 |
| 2″ | DN50 | 50 | 90 | 165 | 108 |
| 2-1/2″ | DN65 | 65 | 110 | 207 | 127 |
