Ordering code
Specification

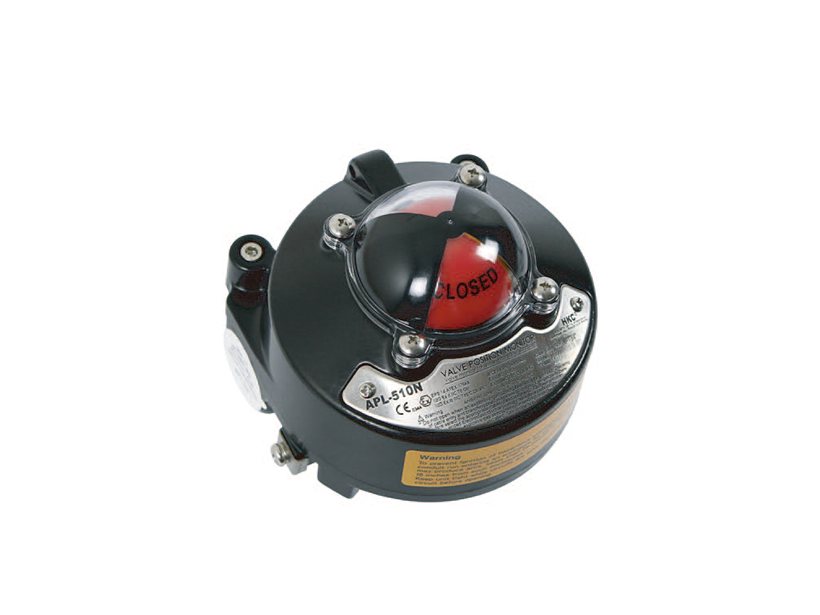

| Model | APL-510N |
| Material | Standard: Aluminium Alloy Option: Stainless steel 316 |
| Enclosure | Standard: Ex db IIC T6, Ex ia IIC T6, Ex tb IIIC T85° / IP66, 67, Type 4X, 6 Option: watertight enclosure: IP68 (10 m, 72 hours) |
| Certifications | IECEx (Ex db IIC T6 Gb, Ex ia IIC T6 Gb, Ex tb IIIC T85°C Gb) ATEX (II 2G Ex db IIC T6 Gb, II 2G Ex ia IIC T6 Gb, II 2G Ex tb IIIC T85°C Gb) CSA (Class I, Division 1, Groups B,C,D T6; Class II, Division 1, Groups E,F,G; Class III) EAC (1 Ex d IIC T6 Gb) NEPSI (Ex d IIC T6 Gb, Ex tD A21 IP66/67) KCs (Ex d IIC T6 IP67, Ex tD A21 IP67 T85°C) CCC (Ex d IIC T6 Gb, Ex ia IIC T6 Gb, Ex tD A21 IP67 T85°C) SIL 2/3 ABS, RMRS, RINA type approval |
| Travel angle | Standard: 0 – 90° Option: 0 – 120°, 135° |
| Ambient temperature | Standard: -20 to +80 °C Low temp. option: -40 to +60 °C (APL-51X) -25 to +60 °C (APL-52X) -40 to +60 °C (APL-53X) -50 to +60 °C (APL-5HX) |
| Cable entry | 2 x NPT3/4″, NPT1/2″, M20 |
| Switches | 2-4 x Mechanical switches or proximity sensors |
| Terminal strips | Standard: 8 points Option: 10, 12 points |
| Shaft | Standard: Stainless steel 304 Option: Stainless steel 316 |
| Control | PIU: Potentiometer (1 kΩ, 10 kΩ) CPT: Current position transmitter(output: 4-20 mA DC) |
| Indicator | No indicator 3-way, T-port, green (open) / red (close) 2-way, yellow (open) / red (close) 3-way, L-port, yellow (open) / red (close) 2-way, green (open) / red (close) 3-way, L-port, green (open) / red (close) 3-way, T-port, yellow (open) / red (close) Flag type( Stainless steel 316, 316L option) |
| Weight | Standard: 1.2 kg (without bracket) Stainless steel 316: 3.1 kg (without bracket) Stainless steel 316 & flag type indicator: 3.4 kg (without bracket) |
Dimension
