Specification
|

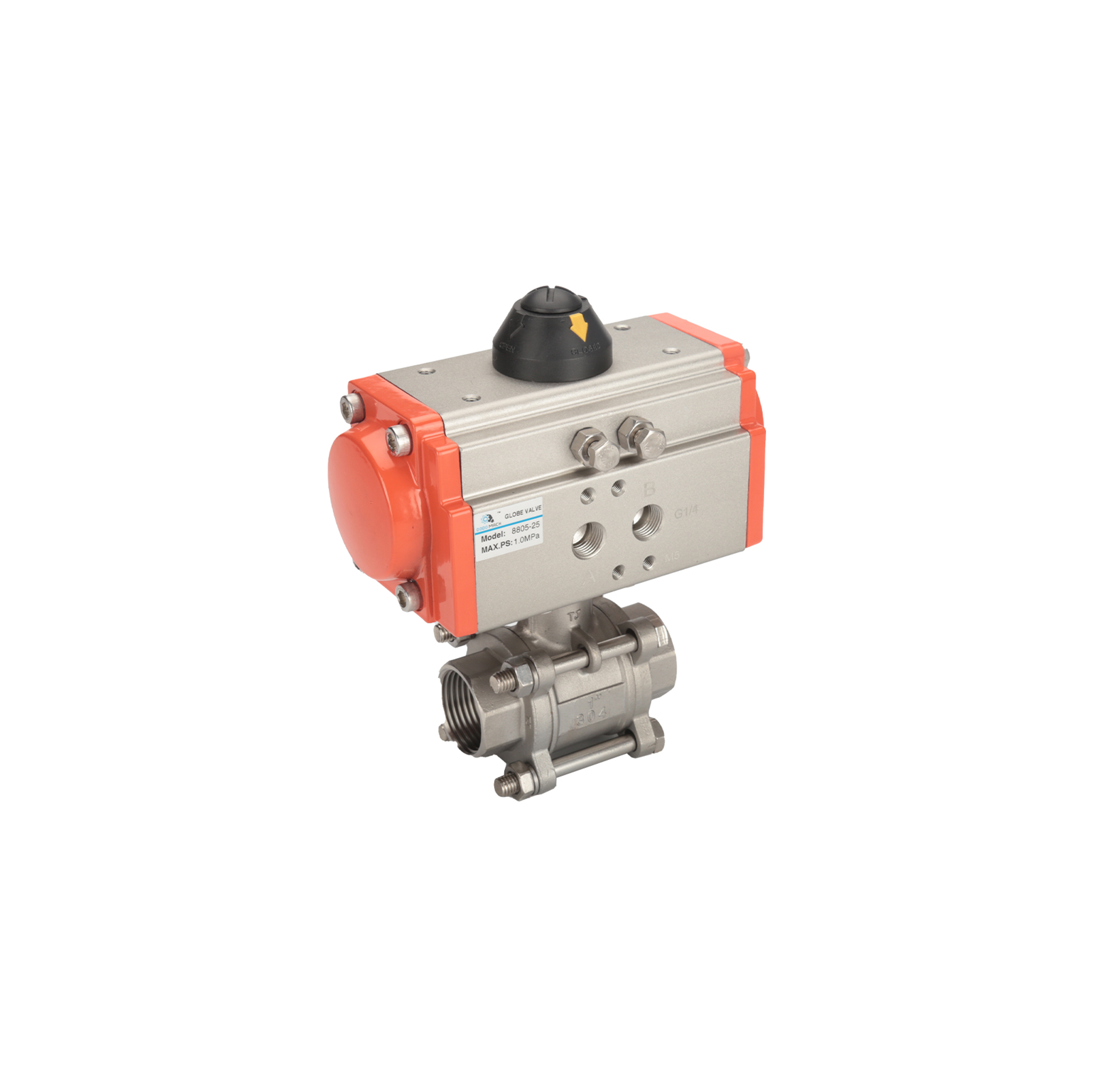

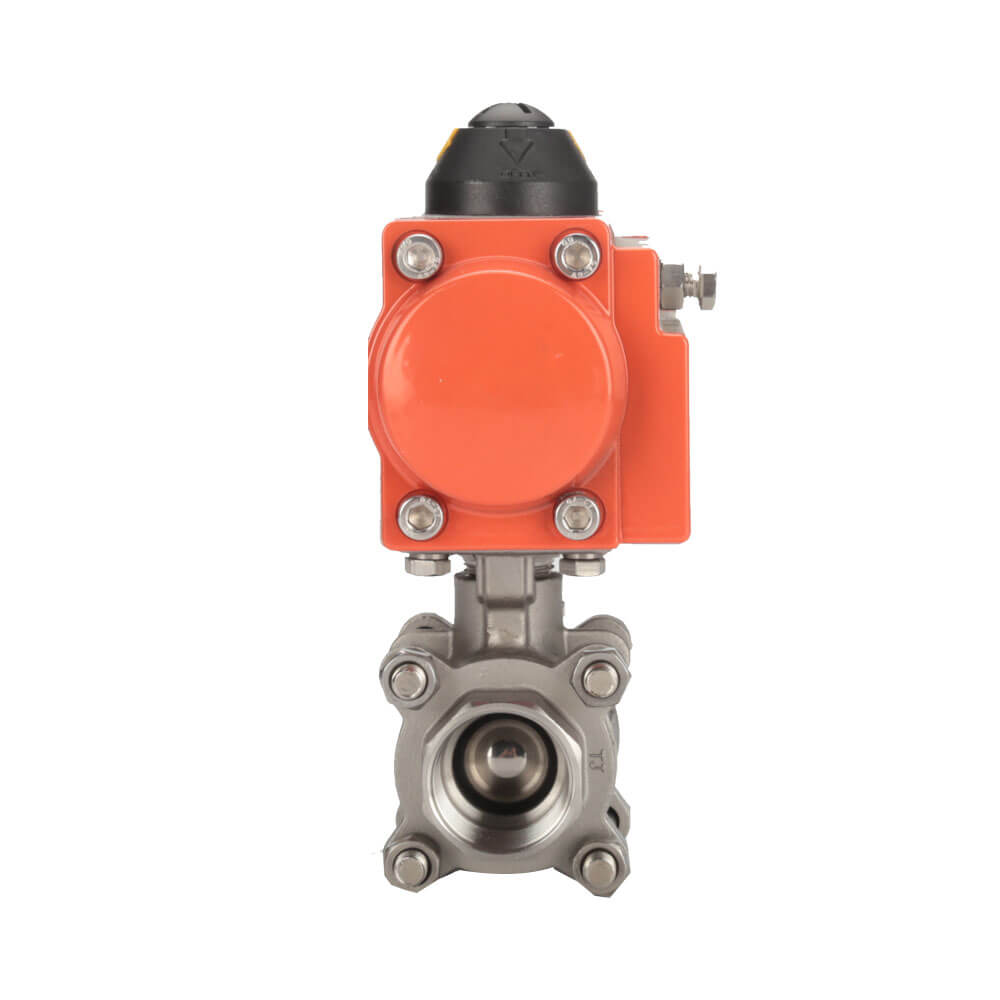

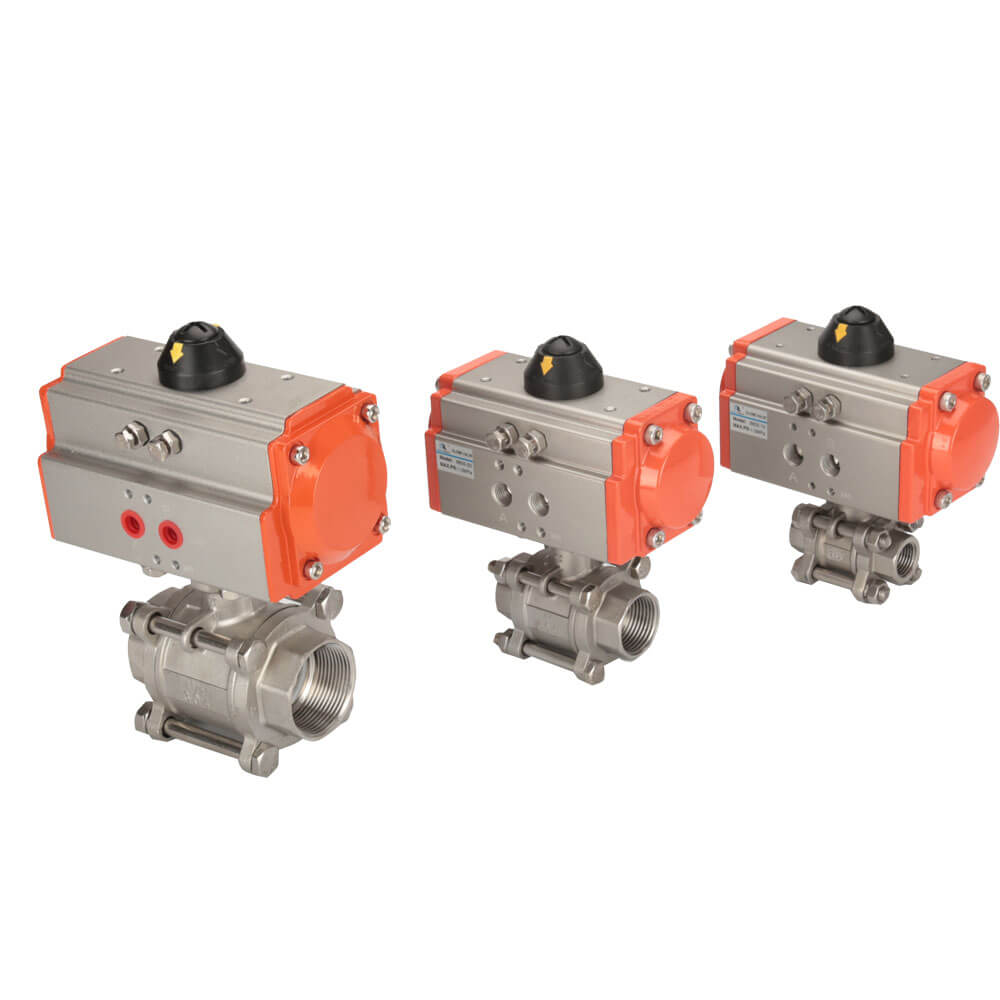

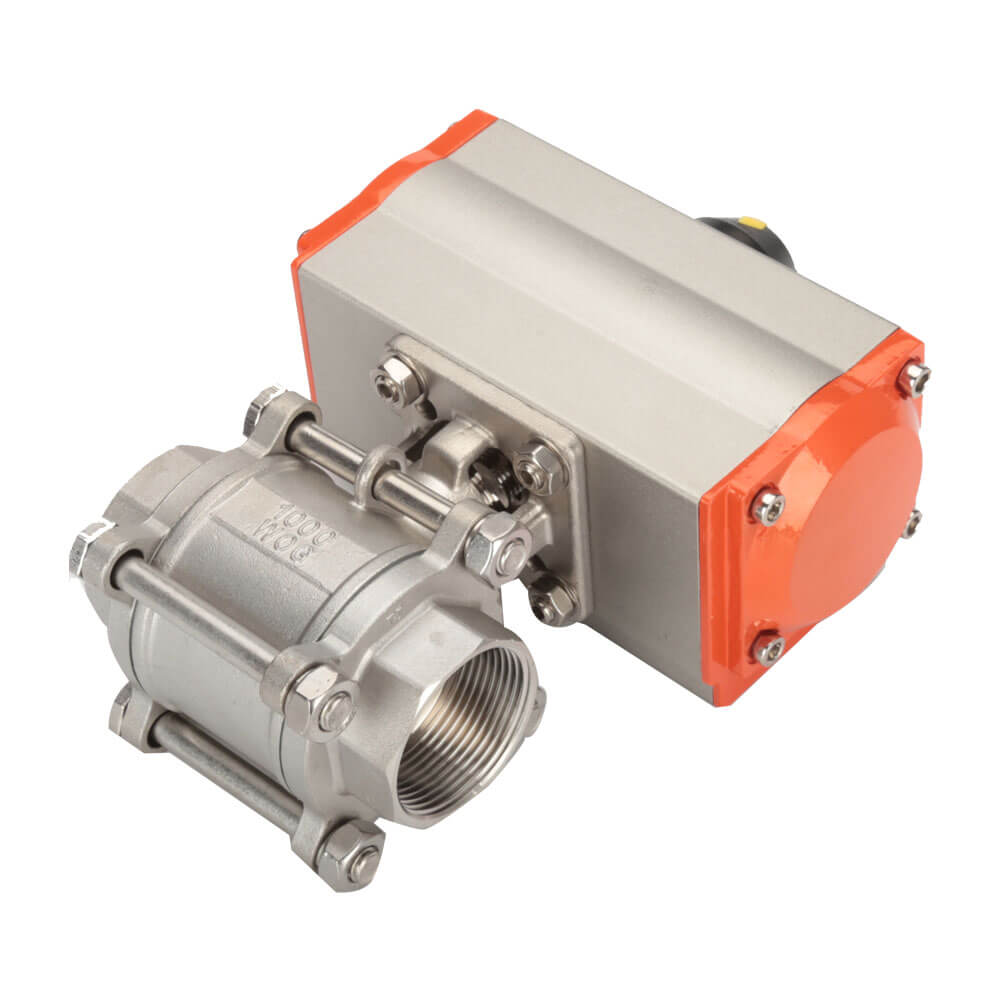

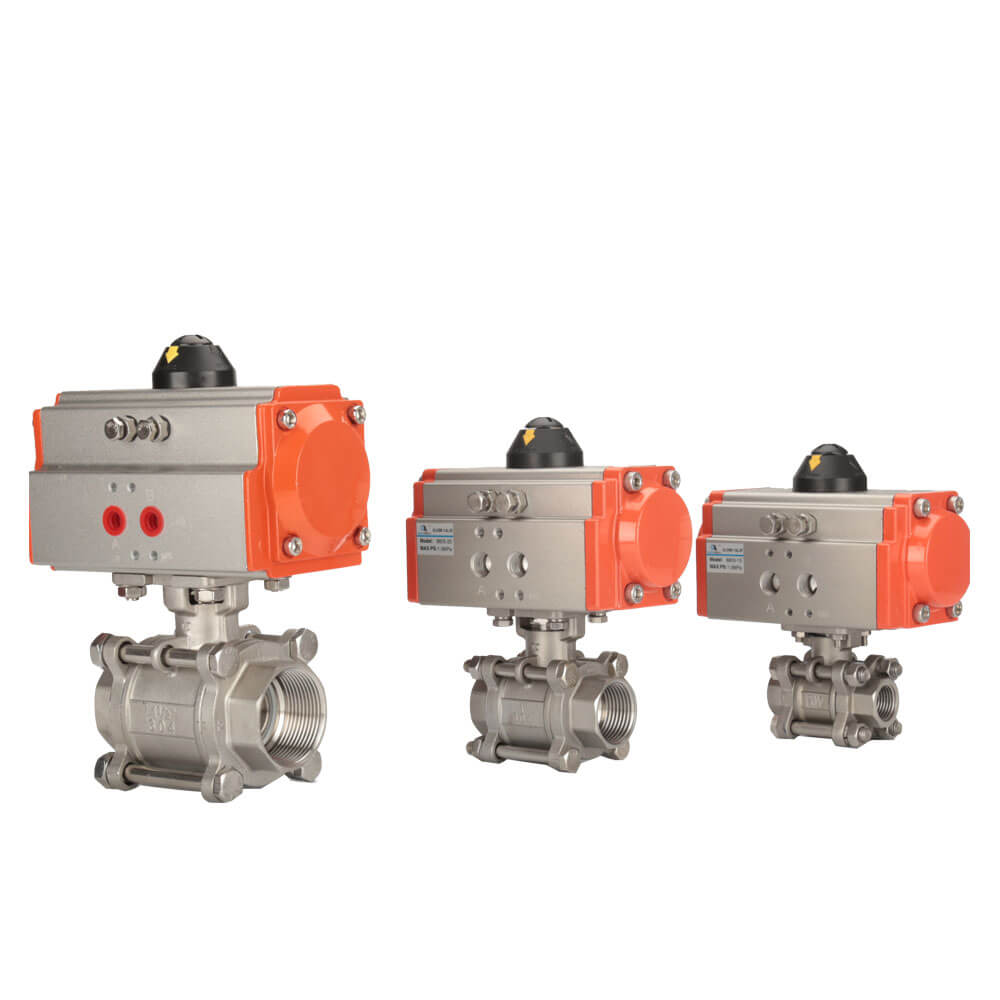

Pneumatic ball valve
|
Electric ball valve
|
|||
|
Air pressure:0.4~0.8Mpa
|
elector actuator power :AC380V,AC220V 50/60Hz,AC110,DC24 Electric actuator input:4-20mA,DC
|
|||
|
Control medium:Neutral gas,air
|
||||
|
Ambient temperature:-20℃~60℃
|
||||
|
medium temperature：-20℃~+180℃；UPVC ball valve:-10℃~+45℃；CPVC ball valve:-15℃~+90℃
|
||||
|
Nomal sealing’working temperature：F(PTFE):-20℃~+180℃，T(TFM):-30℃~+230℃
|
||||
|
Manufacturing standard:GB,ISO,ANSI,BS,DIN
|
||||

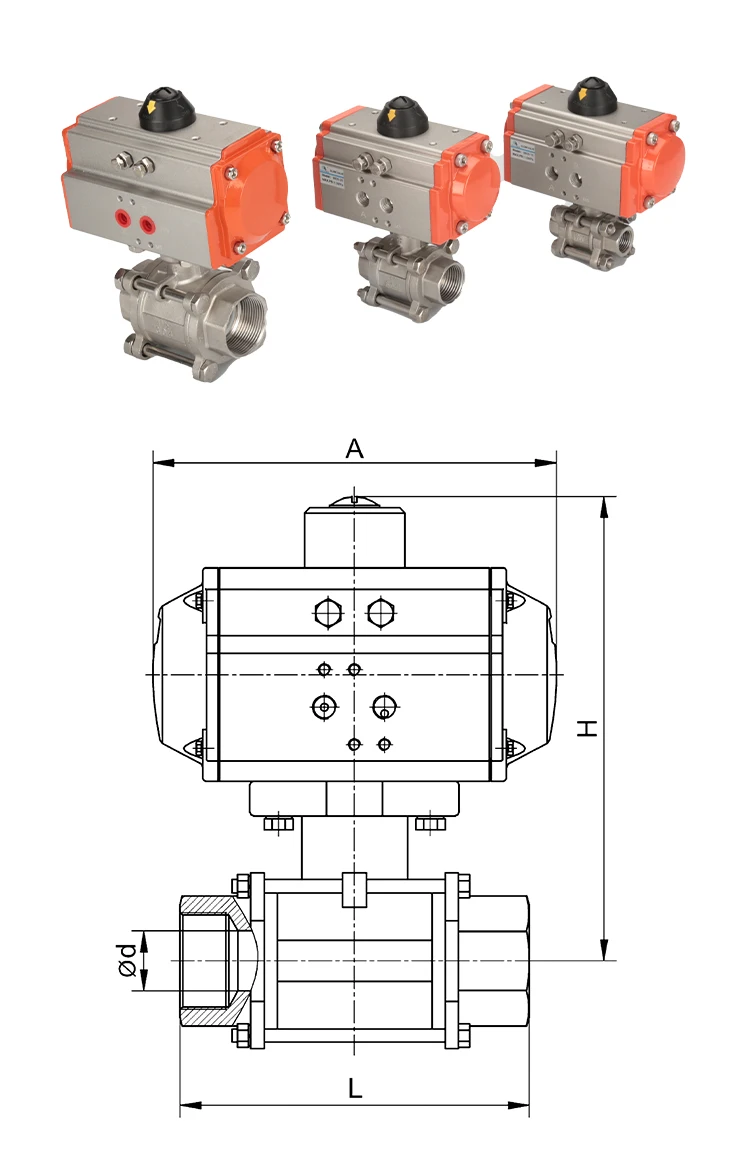

Dimension
|
Port size
|
d
|
L
|
A
|
H
|
|
|
1/2″
|
15
|
72
|
146
|
139
|
|
|
3/4″
|
20
|
79
|
146
|
142
|
|
|
1″
|
25
|
90
|
146
|
146
|
|
|
1-1/4″
|
32
|
105
|
167
|
169
|
|
|
1-1/2″
|
38
|
112
|
167
|
181
|
|
|
2″
|
50
|
130
|
213
|
206
|
|
|
2-1/2″
|
65
|
180
|
250
|
240
|
|
|
3″
|
78
|
210
|
268
|
262
|
|
|
4″
|
98
|
266
|
349
|
315
|
|
