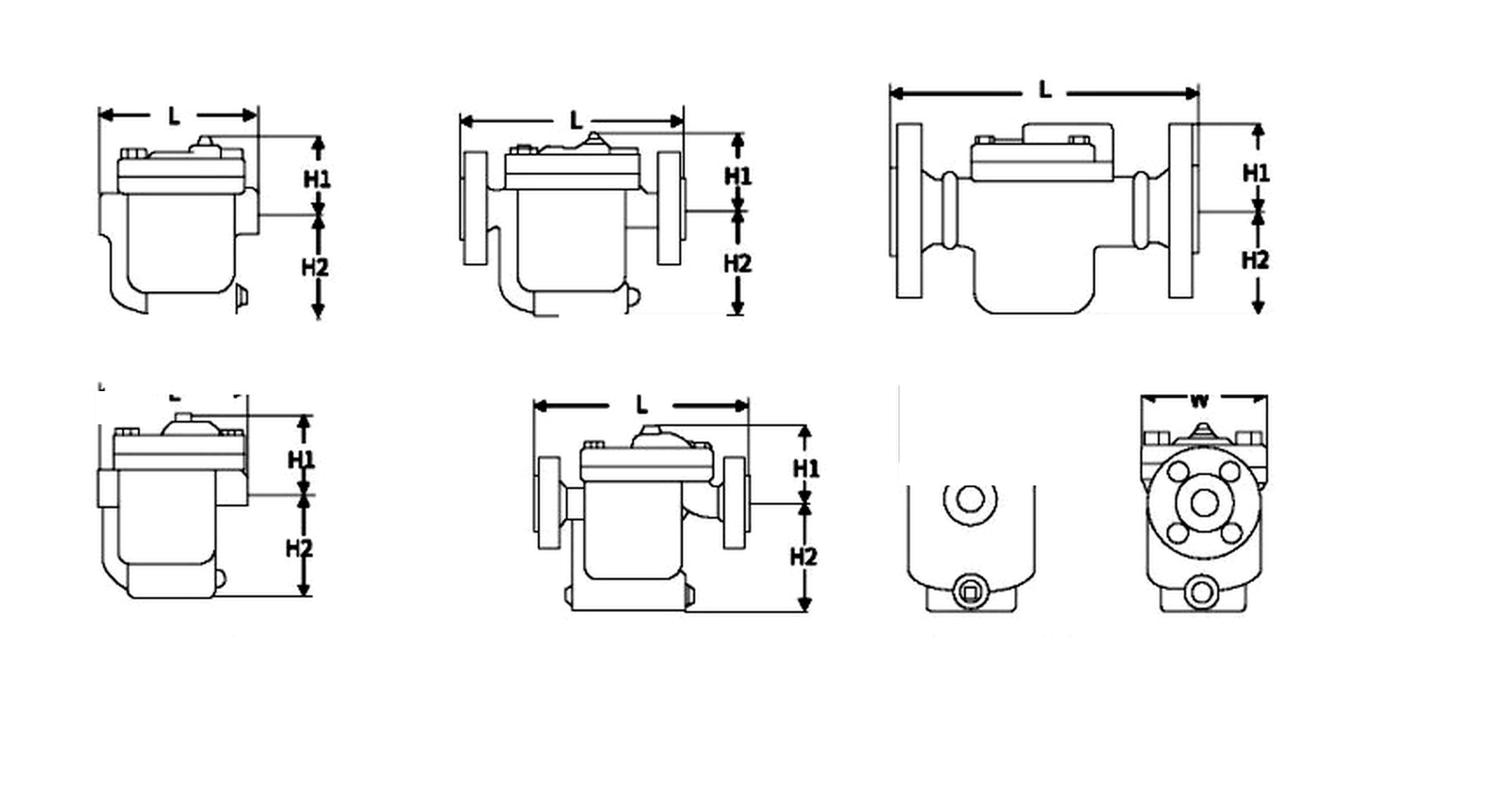

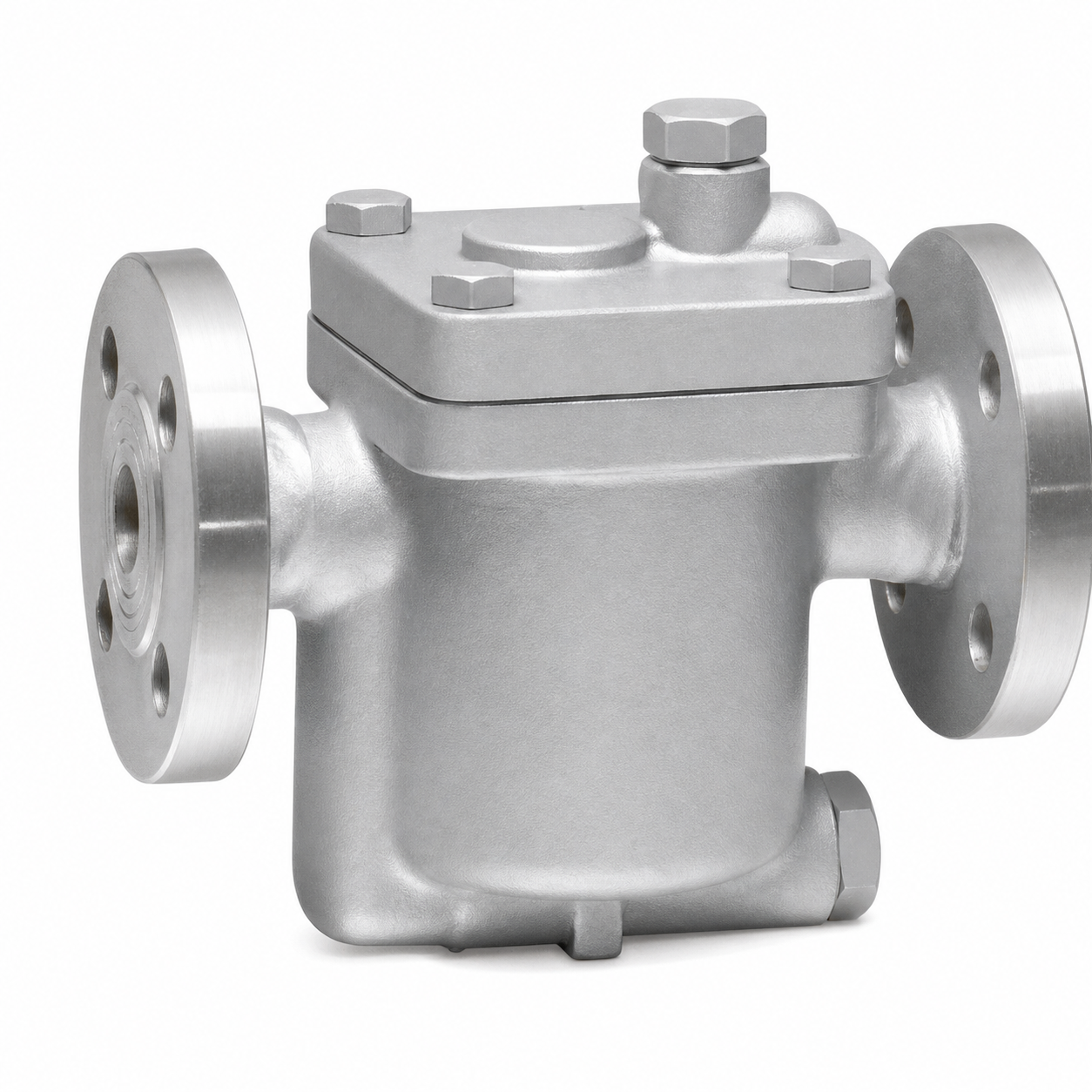

Bell Float Inverted Bucket Steam Trap dimension drawing

Part Name	Body & Cover	Valve Disc	Float & Bell	Control Frame
Material	WCB, WC6, Stainless Steel	304	304	304

Type	Nominal Diameter DN	Connection	Working Pressure (MPa)	Max. Allowable Temperature (C)	L (mm)	L1 (mm)	H (mm)	H2 (mm)
Type A	15-25	Threaded	0.01~1.6	350	135	85	90	100
Type B	15-20 / 25	Flanged	0.01~1.6	350	195 / 210	85	90	100
Type C	25-50	Threaded	0.01~1.6	350	200	105	140	120
Type D	15-25 / 32-50	Flanged	0.01~1.6	350	195, 215 / 270, 280, 290	105	140	120
Type E	15-25	Threaded	0.01~1.6	350	110	70	90	95
Type F	15-25	Flanged	0.01~1.6, 2.1	425	210	70	90	100
Type G	15-50	Flanged	0.01~1.6	350	290	105	140	120
Type H	15-25	Socket Weld	0.01~1.6	350	220	110	140	120
Type I	15-25	Socket Weld	0.01~2.1, 4.4	425	300	130	150	200
Type J	15-25	Flanged	0.01~2.1, 4.4	425	310	130	150	200
