Main Parts Material
| Part Name | Valve Body | Internal Parts & Bell Float |
|---|---|---|
| Material | WCB | 304 |
Technical Parameters

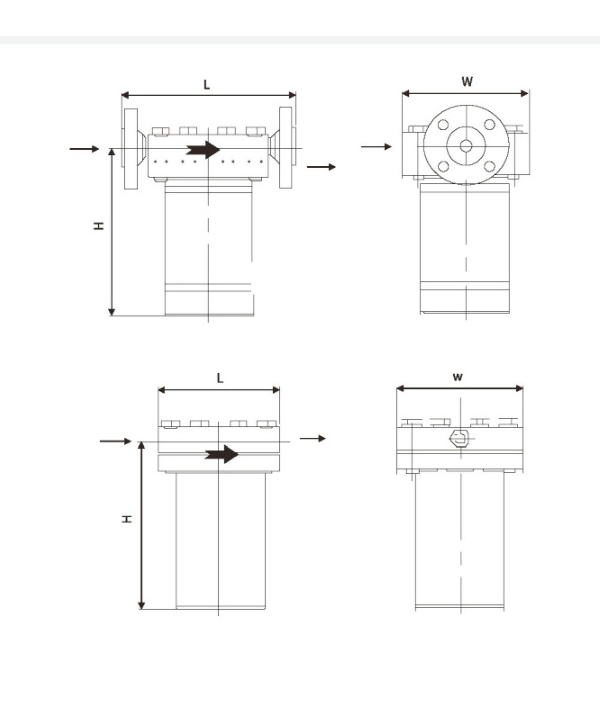

| Type | Nominal Diameter DN | Connection Standard | Working Differential Pressure Range (MPa) | Nominal Pressure PN | PMA/TMA (MPa/C) | Body Material | L (mm) | H (mm) | W (mm) |
|---|---|---|---|---|---|---|---|---|---|
| Type A | 15-25 | Socket Weld (GB, ANSI, JIS) | 0.01~6.5 | PN100 | 7.4/500 | 15CrMo | 220 | 328 | 225 |
| Type B | 15-32 / 40-50 | Flanged (GB, ANSI, JIS) | 0.01~6.5 | PN100 | 7.4/500 | 15CrMo | 310 / 320 | 328 | 225 |
| Type C | 15-25 | Socket Weld (GB, ANSI, JIS) | 0.01~6.5 | PN100 | 7.4/500 | 15CrMo | 240 | 330 | 250 |
| Type D | 15-50 | Flanged (GB, ANSI, JIS) | 0.01~6.5 | PN100 | 7.4/500 | 15CrMo | 350 | 330 | 250 |
