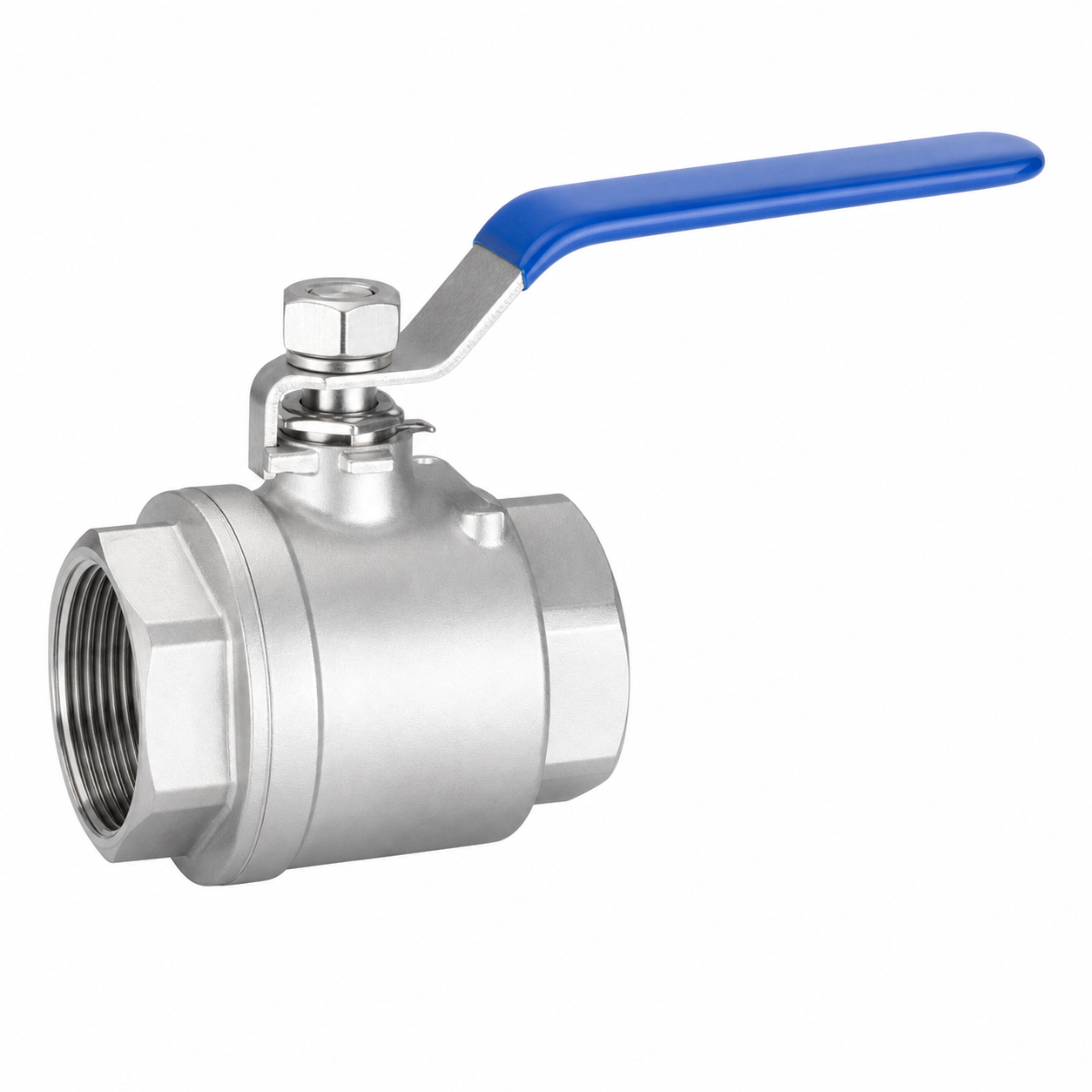

The Stainless Steel Two Piece Ball Valve is a full-port manual shut-off valve for threaded fluid-control pipelines. The two-piece body design, PTFE sealing structure, stainless steel trim and lever handle provide reliable on/off control for water, oil, air and general industrial media.
Main Parts Material
| Part | Stainless Steel Type | Carbon Steel Type |
|---|---|---|
| Body | Stainless Steel | Carbon Steel |
| Ball | Stainless Steel | Stainless Steel |
| Seat Seal | PTFE | PTFE |
| Bonnet | Stainless Steel | Carbon Steel |
| Stem | Stainless Steel | Stainless Steel |
| Thrust Washer | PTFE | PTFE |
| Packing | PTFE | PTFE |
| Stem Nut | Stainless Steel | Stainless Steel |

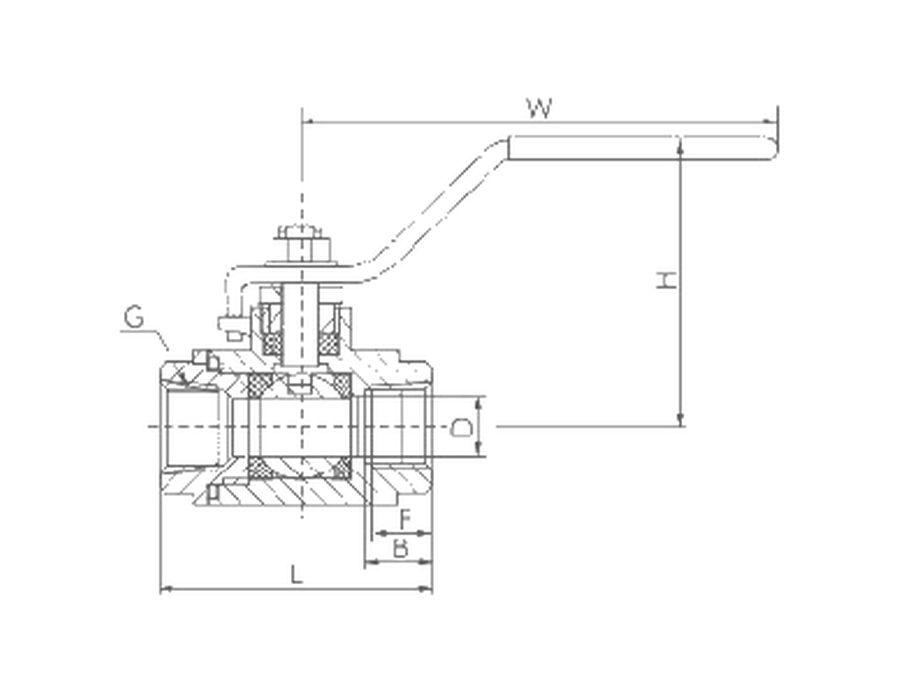

Dimensions and Weight – Heavy Type
| Size | 1/4″ | 3/8″ | 1/2″ | 3/4″ | 1″ | 1-1/4″ | 1-1/2″ | 2″ | 2-1/2″ | 3″ | 4″ |
|---|---|---|---|---|---|---|---|---|---|---|---|
| D | 11.6 | 12.7 | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 80 | 100 |
| L | 54 | 54 | 62 | 71 | 86 | 100 | 107 | 125 | 150 | 174 | 214 |
| H | 50 | 50 | 60 | 64 | 71 | 78 | 86 | 95 | 130 | 148 | 180 |
| E | 100 | 100 | 130 | 130 | 165 | 165 | 190 | 190 | 250 | 250 | 280 |
| Weight (g) | 203 | 191 | 277 | 435 | 665 | 1187 | 1397 | 2104 | 3650 |
Dimensions and Weight – Medium Type
| Size | 1/4″ | 3/8″ | 1/2″ | 3/4″ | 1″ | 1-1/4″ | 1-1/2″ | 2″ | 2-1/2″ | 3″ | 4″ |
|---|---|---|---|---|---|---|---|---|---|---|---|
| D | 11.6 | 12.7 | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 80 | 100 |
| L | 52 | 52 | 55 | 61 | 75 | 84 | 97 | 106 | 144 | 167 | 206 |
| H | 40 | 40 | 54 | 65 | 72 | 83 | 94 | 107 | 130 | 148 | 200 |
| E | 120 | 120 | 120 | 130 | 154 | 154 | 185 | 185 | 250 | 250 | 260 |
| Weight (g) | 203 | 191 | 232 | 285 | 477 | 750 | 958 | 1421 | 1294 | 4700 | 8350 |
