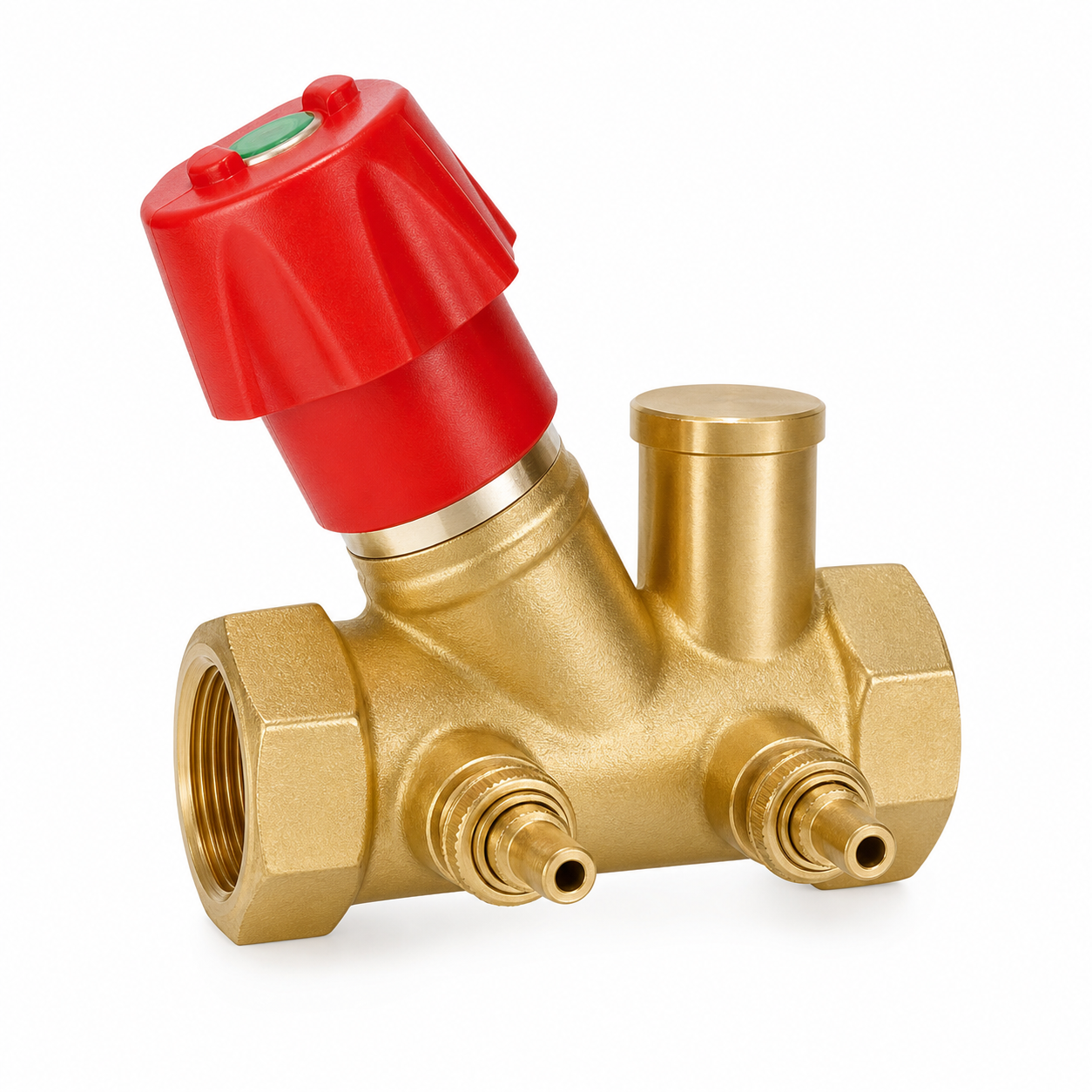

The Brass Balance Valve With Red Adjustment Cap is designed for water, oil, and heating service. The angled balancing structure includes threaded end connections, an upper service port, and lower test ports for heating system balancing.

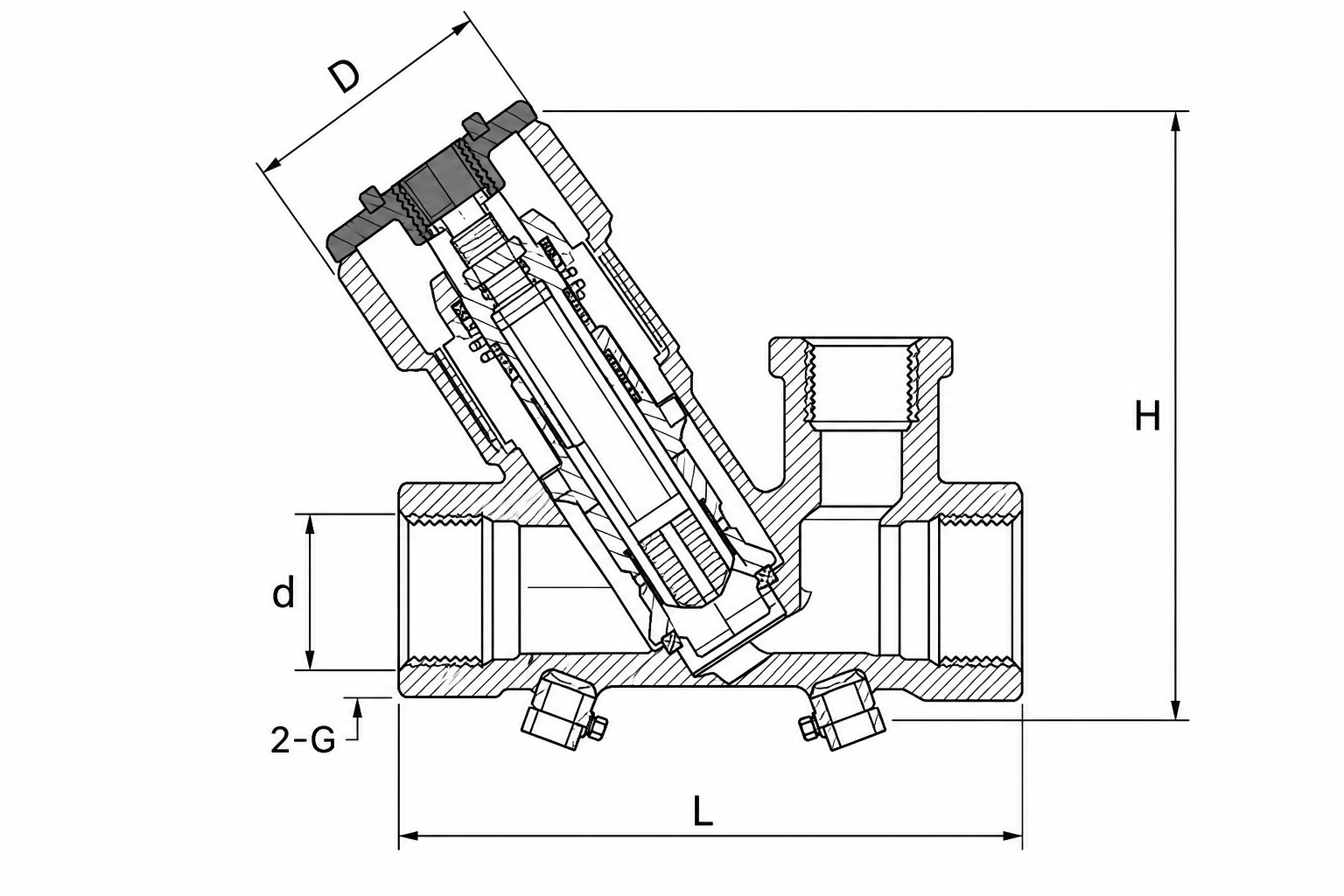

Main Dimensions
| DN | Size | L | d | H | D |
|---|---|---|---|---|---|
| 15 | 1/2" | ||||
| 20 | 3/4" | 75 | 14.5 | 98 | 50 |
| 25 | 1" | 83 | 17 | 100 | 50 |
Technical Standard
| Normal Pressure | 1.6 MPa |
|---|---|
| Working Medium | Water, oil, heating |
| Working Temperature | -20 C ≤ T ≤ 120 C |
| Thread Standard | ISO 228 |
