Product Details

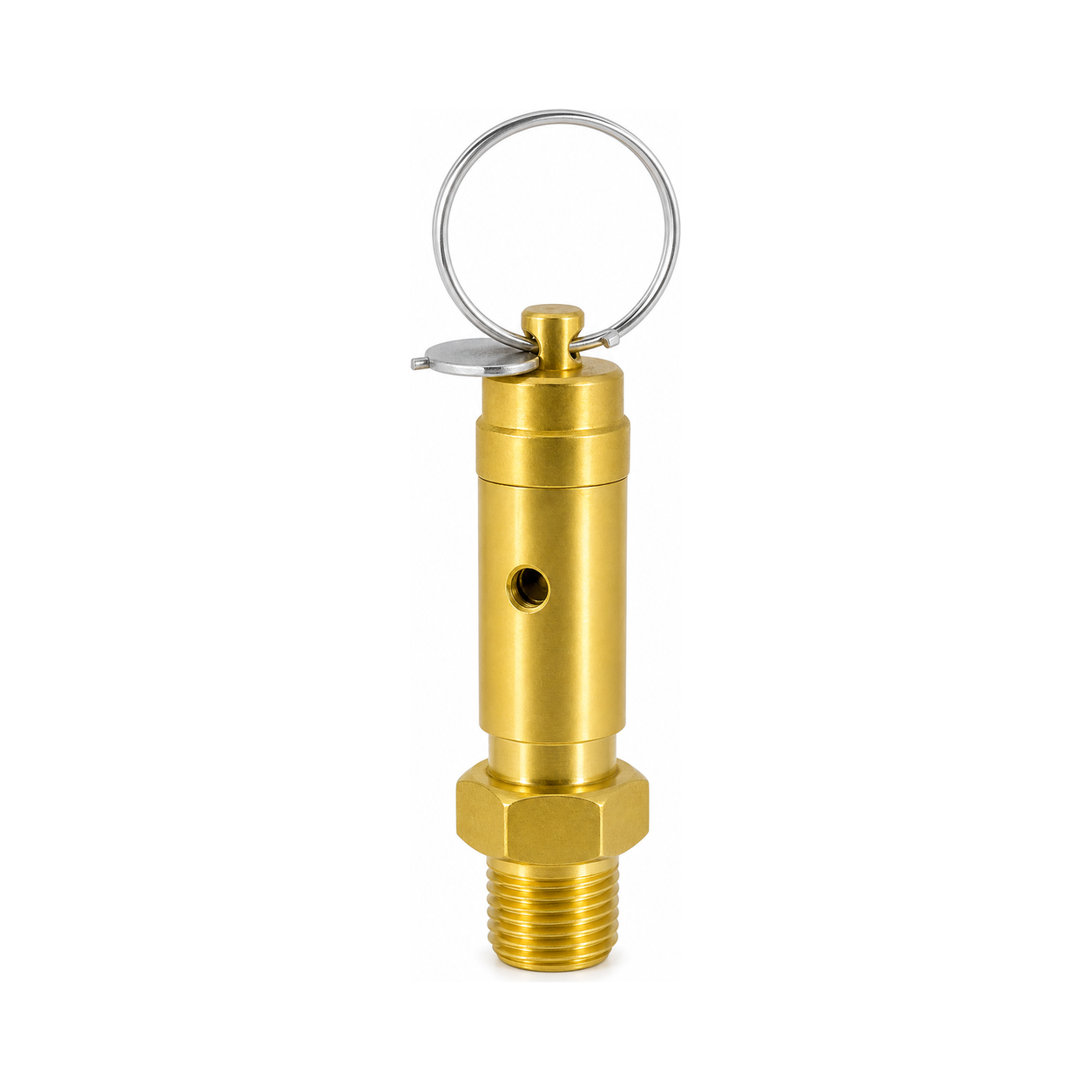

The Spring Full Lift Threaded Connection Safety Valve is a brass safety valve for pressure protection in threaded pipeline and boiler-related applications. The spring-loaded structure, pull-ring top, and threaded inlet connection provide compact over-pressure relief for small and medium line sizes.
Technical Parameters
| Thread | DN | do | H | S | W (kg/h) | M/min | PS |
|---|---|---|---|---|---|---|---|
| 3/8" | 10 | 8 | 70 | 25 | 338 | 4.69 | 0.9 |
| 1/2" | 15 | 10 | 73 | 25 | 528 | 9.3 | 0.9 |
| 3/4" | 20 | 12 | 80 | 30 | 760 | 10.5 | 0.9 |
| 1" | 25 | 20 | 115 | 40 | 2144 | 29.4 | 0.9 |
| 1-1/4" | 32 | 25 | 160 | 50 | 3300 | 45.8 | 0.9 |
| 1-1/2" | 40 | 32 | 168 | 60 | 5410 | 75 | 0.9 |
| 2" | 50 | 40 | 190 | 65 | 7320 | 118 | 0.9 |
