Product Details

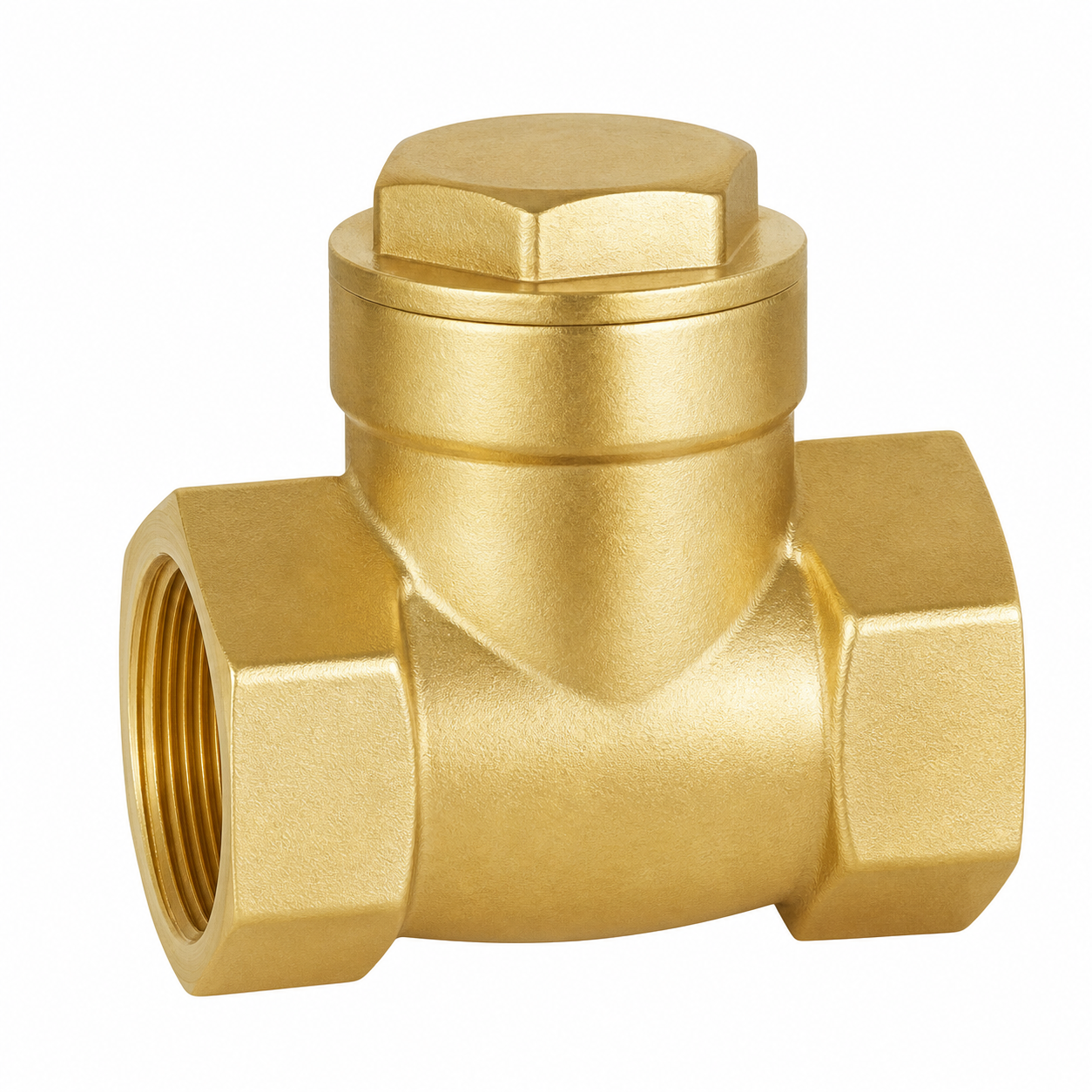

The Brass Engineering Horizontal Check Valve is a threaded check valve for controlling one-way flow in water and oil pipeline systems. The brass body, horizontal layout, and female threaded ends are suitable for compact supply-line installations.

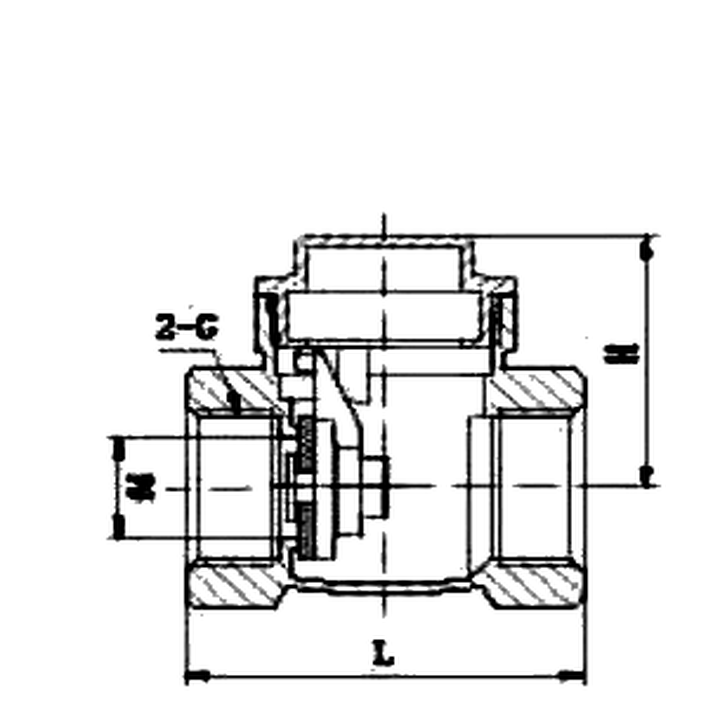

Main Dimensions
| DN | Size | L | d | H | D |
|---|---|---|---|---|---|
| 15 | 1/2" | 47.5 | 35.5 | ||
| 20 | 3/4" | 56 | 39 | ||
| 25 | 1" | 63 | 46.5 | ||
| 32 | 1-1/4" | 71 | 51 | ||
| 40 | 1-1/2" | 80.5 | 59.5 | ||
| 50 | 2" | 93 | 67 |
Technical Standard
| Item | Specification |
|---|---|
| Normal Pressure | 1.6 MPa |
| Working Medium | Water, oil |
| Working Temperature | -20掳C 鈮?T 鈮?100掳C |
| Thread Standard | ISO 228 |
