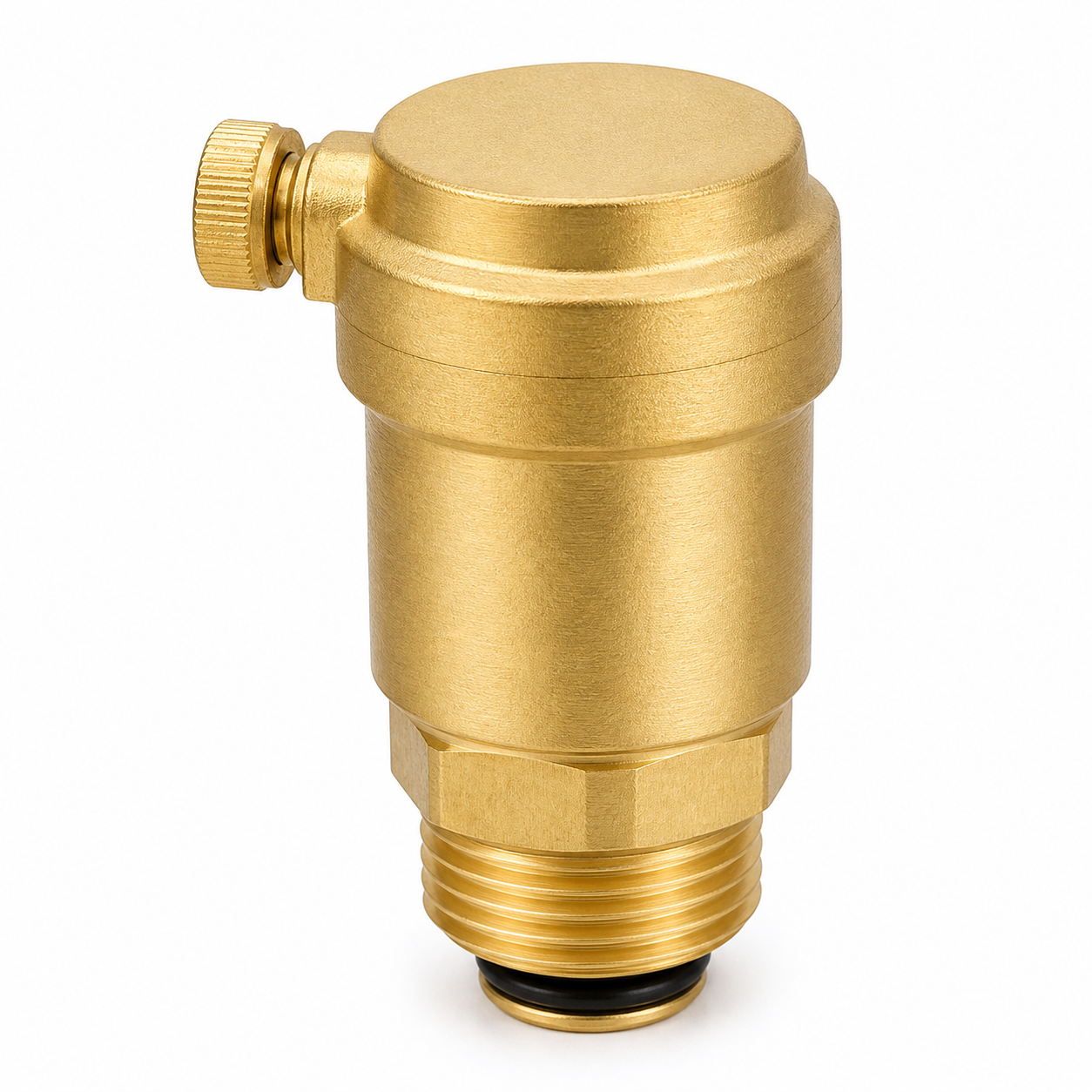

Brass exhaust valve with side vent cap for water, heating, and oil pipeline systems, with brass body, threaded connection, and compact automatic venting structure.

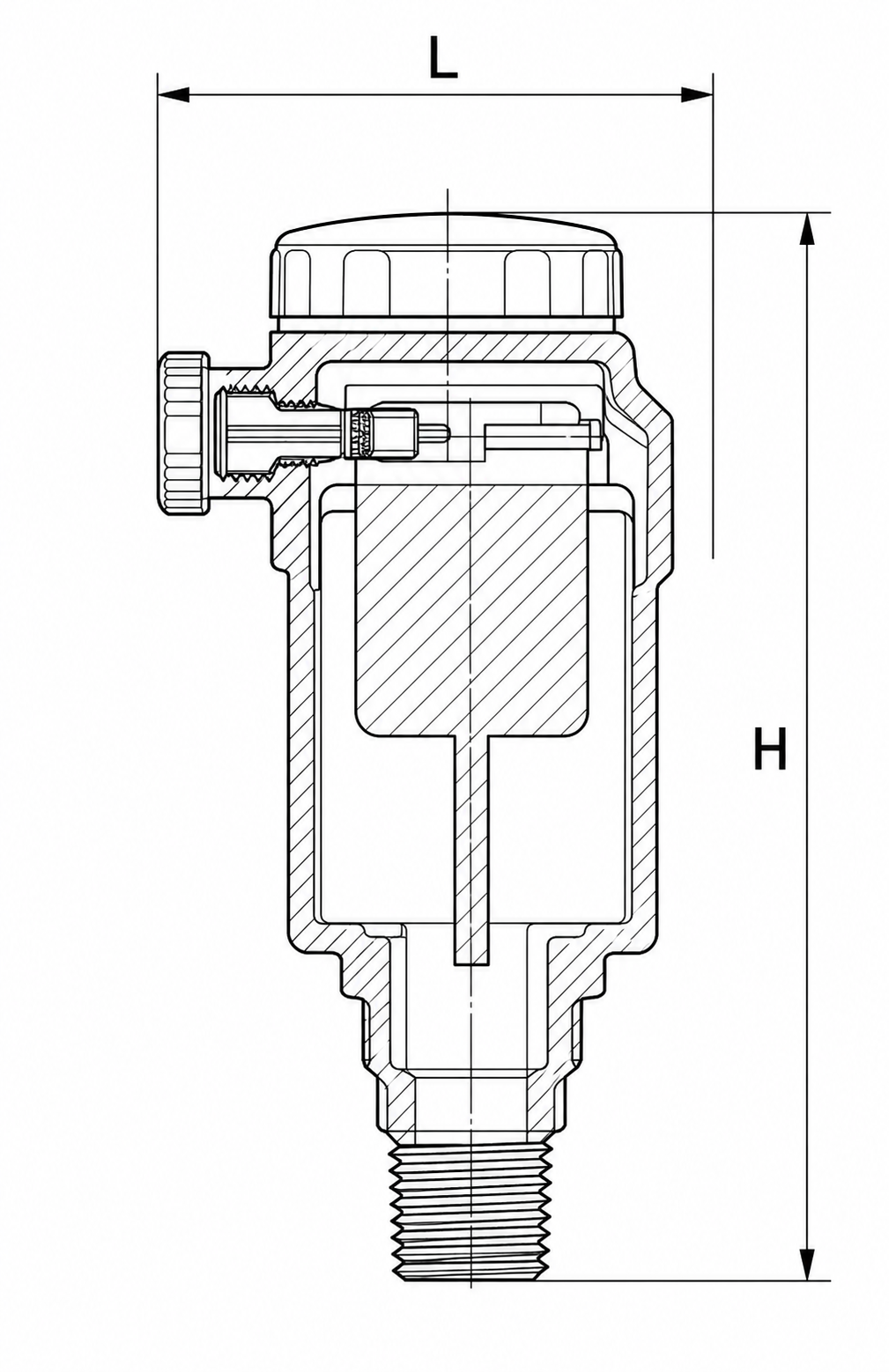

Main Dimensions
| DN | Size | L | d | H | D |
|---|---|---|---|---|---|
| 15 | 1/2" | 52 | 73.5 | ||
| 20 | 3/4" | 52 | 73.5 | ||
| 25 | 1" | 52 | 73.5 |
Technical Standard
| Normal Pressure | 1.6 MPa |
|---|---|
| Working Medium | Water, heating, oil |
| Working Temperature | -20 C <= T <= 100 C |
| Thread Standard | ISO 228 |
