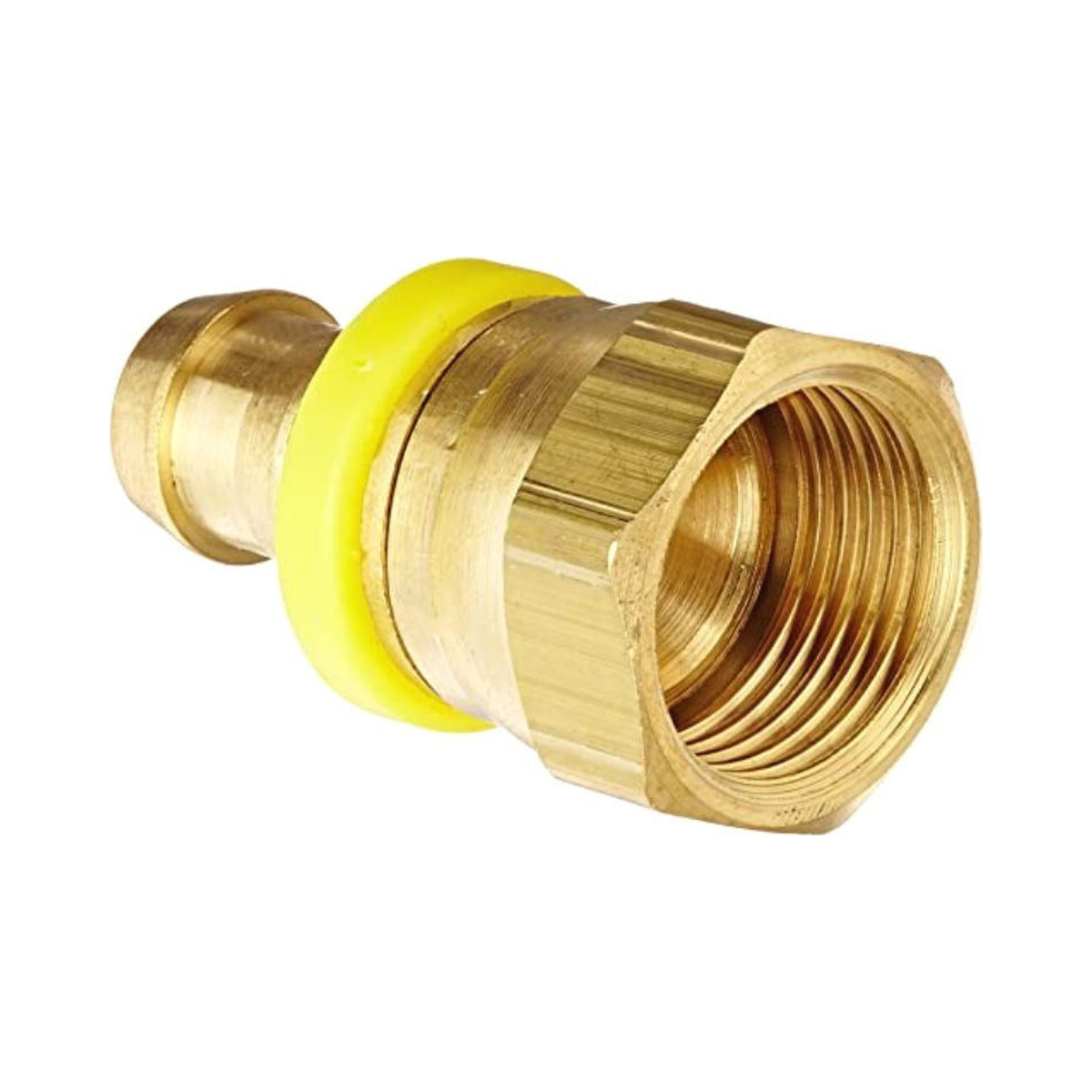

Brass Hose Barb x Female Ball Swivel
Brass hose barb x female ball swivel fitting for flexible hose-to-threaded connections.
Applications and Features
| Item | Details |
|---|---|
| Connection | Hose barb x female ball swivel thread |
| Application | Connects hose to male threaded fittings while the ball swivel helps align hose angle and reduce twisting. |
| Feature | Brass ball swivel end supports flexible hose routing in air, water, and general fluid assemblies. |
Specifications
| Part Number | Hose ID | Female Thread |
|---|---|---|
| D131-2A | 1/8 in | 1/8 in |
| D131-3A | 3/16 in | 1/8 in |
| D131-3B | 3/16 in | 1/4 in |
| D131-4A | 1/4 in | 1/8 in |
| D131-4B | 1/4 in | 1/4 in |
| D131-4C | 1/4 in | 3/8 in |
| D131-5B | 5/16 in | 1/4 in |
| D131-6B | 3/8 in | 1/4 in |
| D131-6C | 3/8 in | 3/8 in |
| D131-6D | 3/8 in | 1/2 in |
| D131-8C | 1/2 in | 3/8 in |
| D131-8D | 1/2 in | 1/2 in |
| D131-12E | 3/4 in | 3/4 in |
