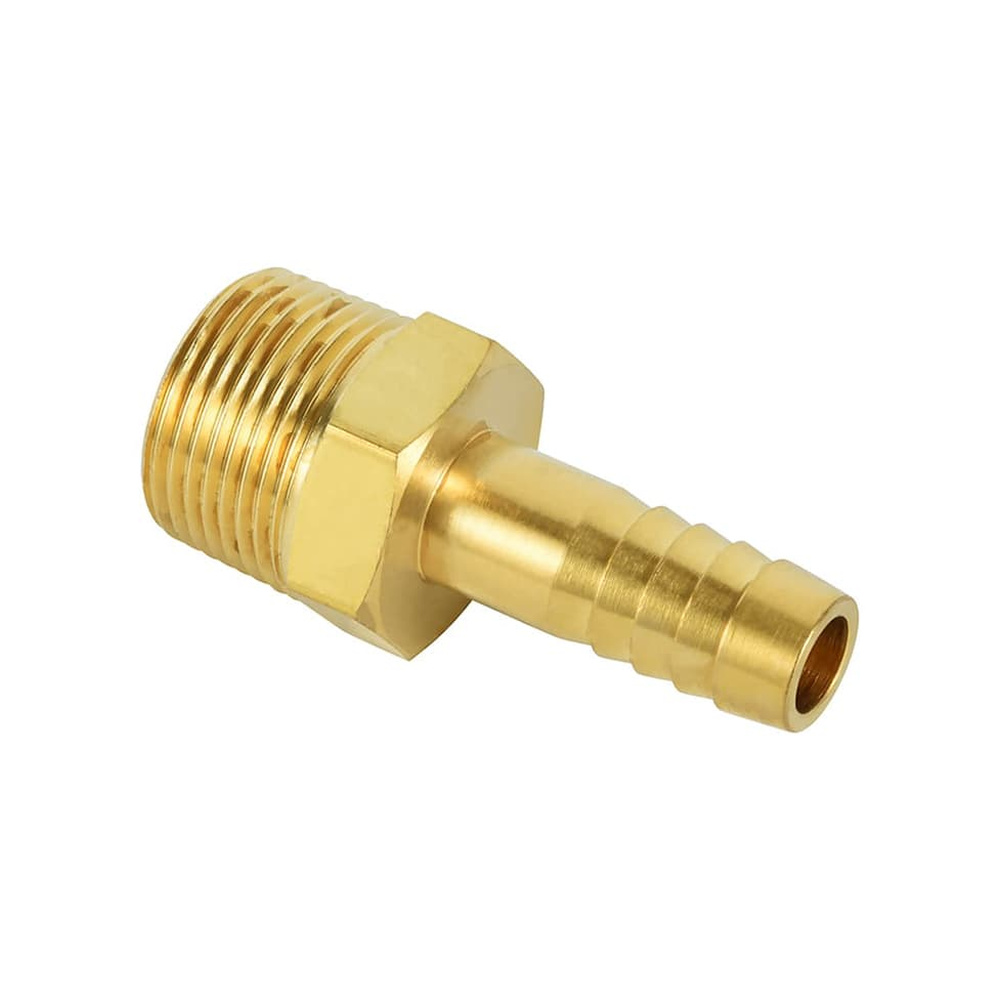

Brass Push-Lok MP NPT Male
Brass Push-Lok MP NPT male fitting for push-lok hose connections.
Applications and Features
| Item | Details |
|---|---|
| Connection | Push-Lok hose end x Male NPT |
| Application | Connects Push-Lok hose assemblies to female NPT ports in pneumatic, hydraulic, and fluid systems. |
| Feature | Male pipe thread Push-Lok brass fitting supports compact hose-to-port connection. |
Specifications
| Part Number | Hose Bore | Thread |
|---|---|---|
| PL04-02MP | 1/4 in | 1/8-27 |
| PL04-04MP | 1/4 in | 1/4-18 |
| PL04-06MP | 1/4 in | 3/8-18 |
| PL05-02MP | 5/16 in | 1/8-27 |
| PL05-04MP | 5/16 in | 1/4-18 |
| PL06-02MP | 3/8 in | 1/8-27 |
| PL06-04MP | 3/8 in | 1/4-18 |
| PL06-06MP | 3/8 in | 3/8-18 |
| PL06-08MP | 3/8 in | 1/2-14 |
| PL08-04MP | 1/2 in | 1/4-18 |
| PL08-06MP | 1/2 in | 3/8-18 |
| PL08-08MP | 1/2 in | 1/2-14 |
| PL08-12MP | 1/2 in | 3/4-14 |
| PL10-08MP | 5/8 in | 1/2-14 |
| PL10-12MP | 5/8 in | 3/4-14 |
| PL12-08MP | 3/4 in | 1/2-14 |
| PL12-12MP | 3/4 in | 3/4-14 |
| PL16-16MP | 1 in | 1-11-1/2 |
