Product Details

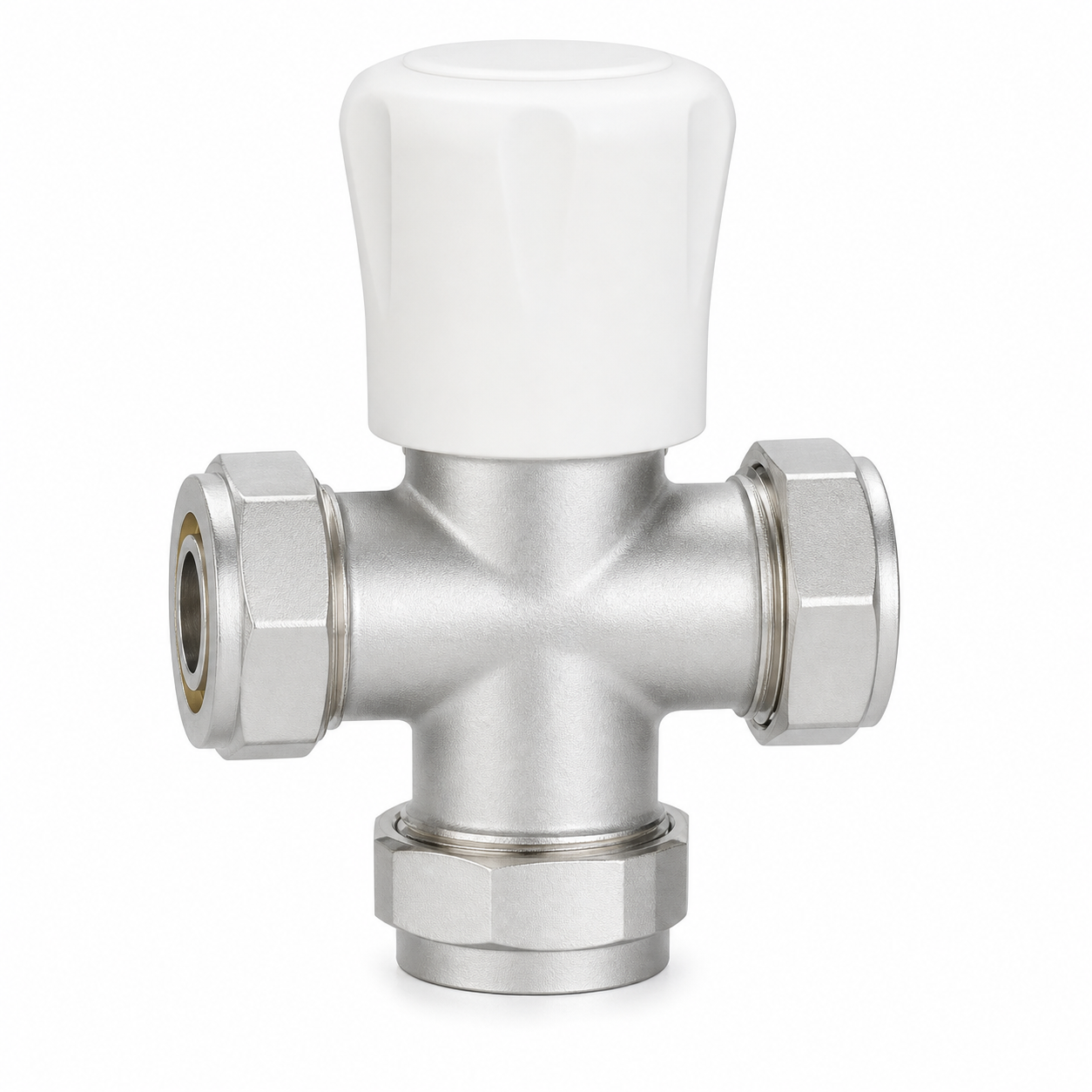

The Brass Three-Way Aluminum-Plastic Manual Regulating Valve is a compact three-way valve for heating and water pipeline systems. The silver valve body, white manual regulating knob, and three compression-style connections support multi-direction flow control with aluminum-plastic piping.

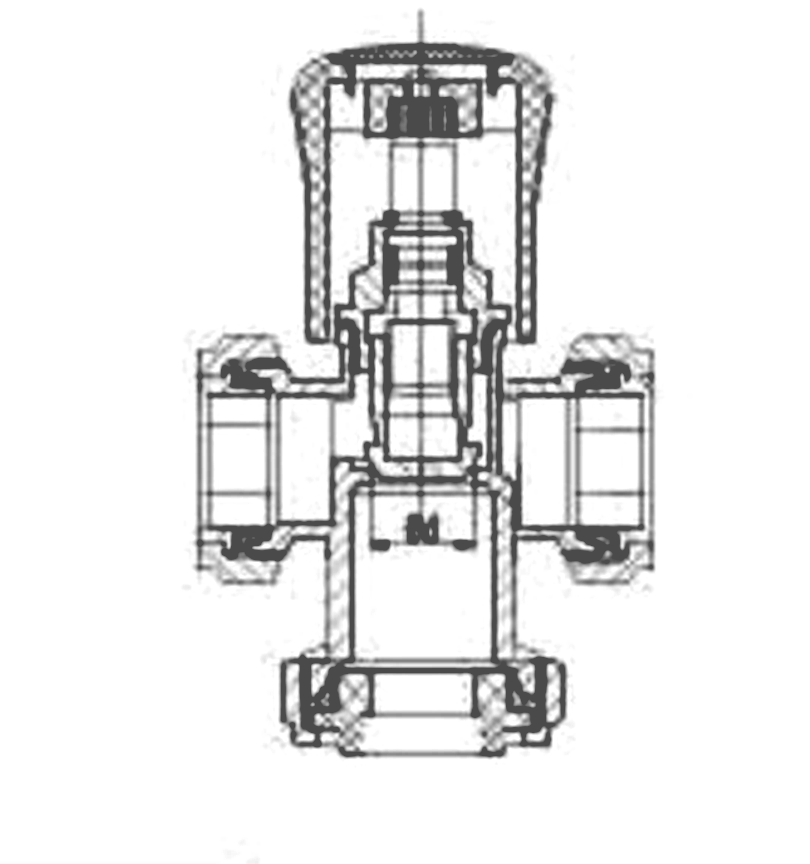

Main Dimensions
| DN | Size | L | B | H | D |
|---|---|---|---|---|---|
| 15 | 1/2" | 76 | 40 | 58 | 40 |
| 20 | 3/4" | 78 | 44 | 62 | 44 |
| 25 | 1" | 82.5 | 46 | 68 | 44 |
Technical Standard
| Item | Specification |
|---|---|
| Normal Pressure | 1.6 MPa |
| Working Medium | Water, heating |
| Working Temperature | T <= 120 C |
| Thread Standard | ISO 228 |
