Product Details

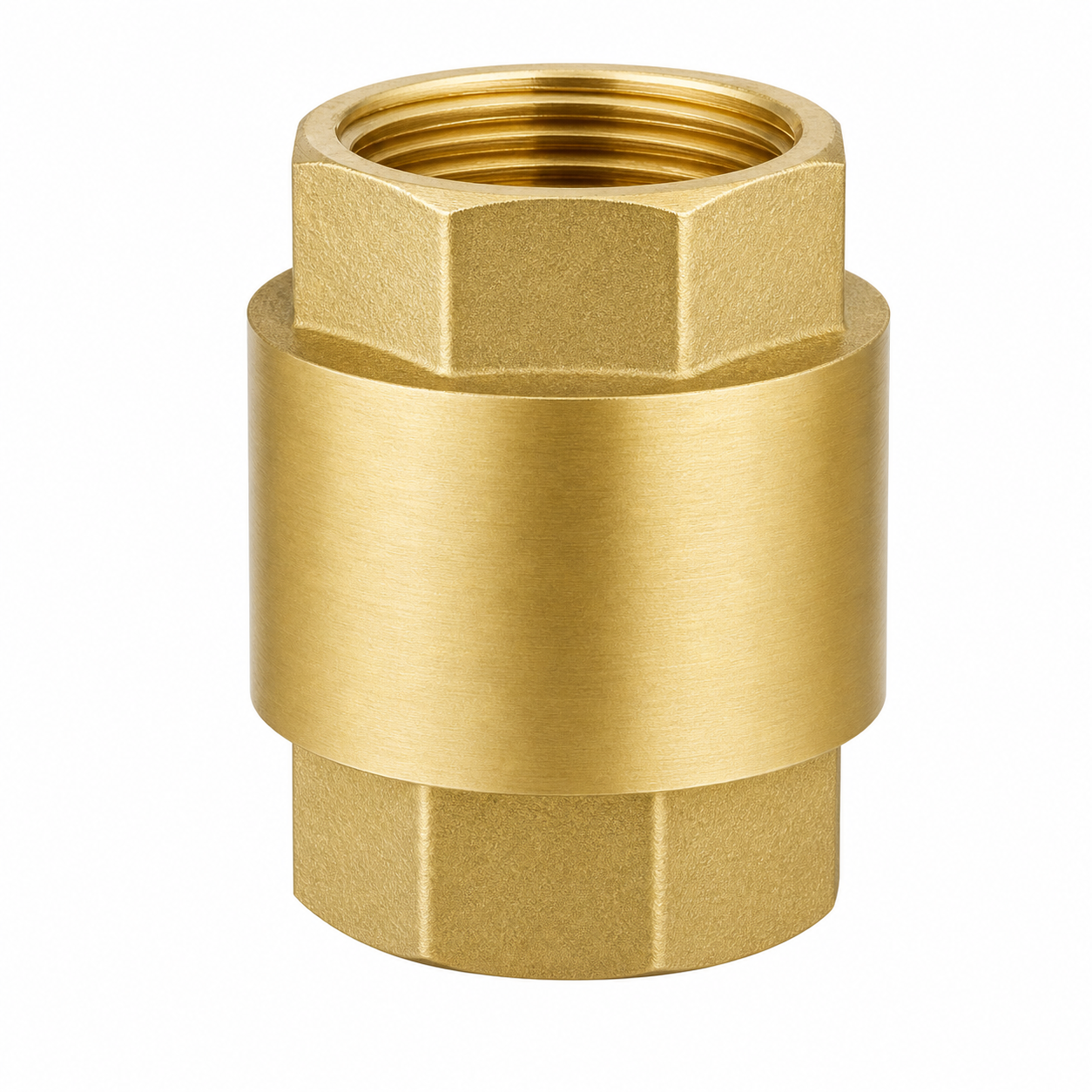

The Brass Vertical Check Valve is a compact threaded check valve for one-way flow control in water and oil systems. The vertical brass body and female threaded ends are suitable for space-limited pipeline installations.

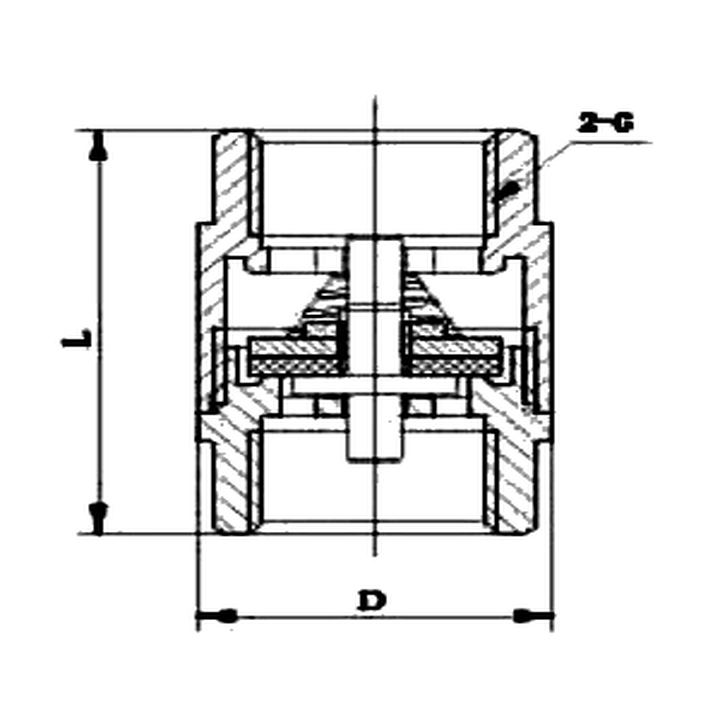

Main Dimensions
| DN | Size | L | d | H | D |
|---|---|---|---|---|---|
| 15 | 1/2" | 45.5 | 36 | ||
| 20 | 3/4" | 52 | 42 | ||
| 25 | 1" | 57.5 | 47 | ||
| 32 | 1-1/4" | 62.5 | 59.5 | ||
| 40 | 1-1/2" | 71 | 66.5 | ||
| 50 | 2" | 78.5 | 83 |
Technical Standard
| Item | Specification |
|---|---|
| Normal Pressure | 1.6 MPa |
| Working Medium | Water, oil |
| Working Temperature | -20掳C 鈮?T 鈮?100掳C |
| Thread Standard | ISO 228 |
