Ordering code
Specification
| Type | Pneumatic | Air-hydro | |||||||
| Size | 30 | 50 | 63 | 80 | 100 | 50 | 63 | 80 | 100 |
| Acting Type | Double acting | ||||||||
| Working Medium | Air (To be filtered by 40μm filter element ) | Hydraulic oil | |||||||
| Operating Pressure | 1~10 Bar | ||||||||
| Temperature Range | 0~60℃ | ||||||||
| Cushion Type | No | Not attached / Air cushion | No | ||||||
| Output (N·m) | 1.9 | 9.3 | 17 | 32 | 74 | 9.3 | 17 | 32 | 74 |
| Backlash | No | Within 1° | |||||||
| Tolerance in rotating angle | – | 0~4° | |||||||
Dimension

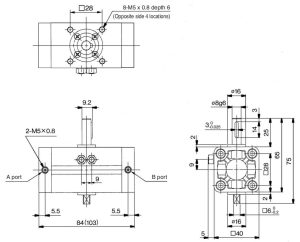

CRA1BW-30

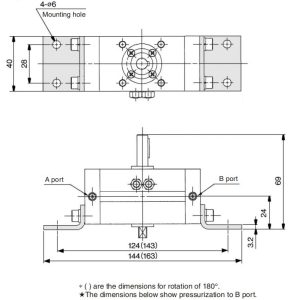

CRA1LW-30
