Cylinders

DODOMACH PNEUMATIC

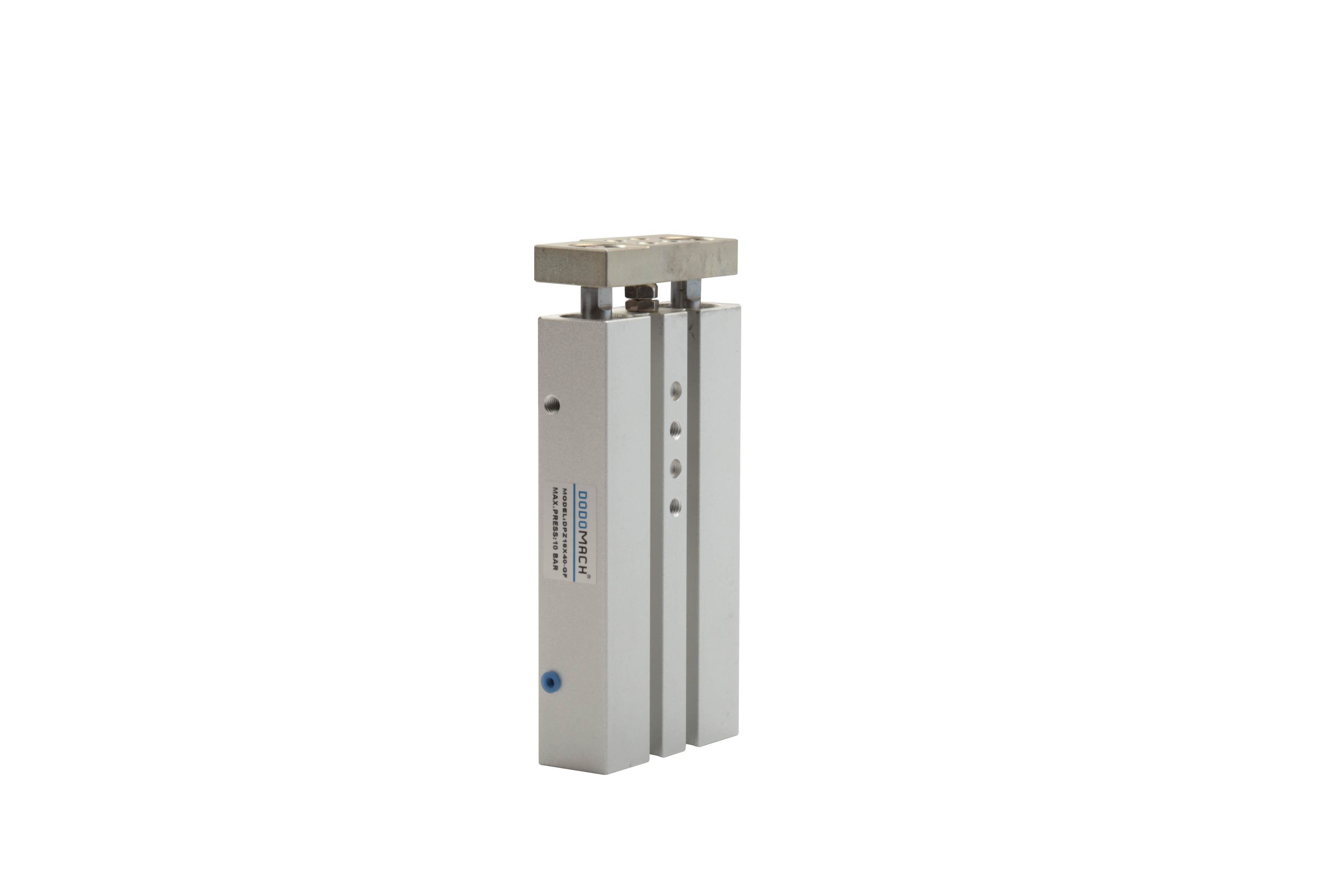

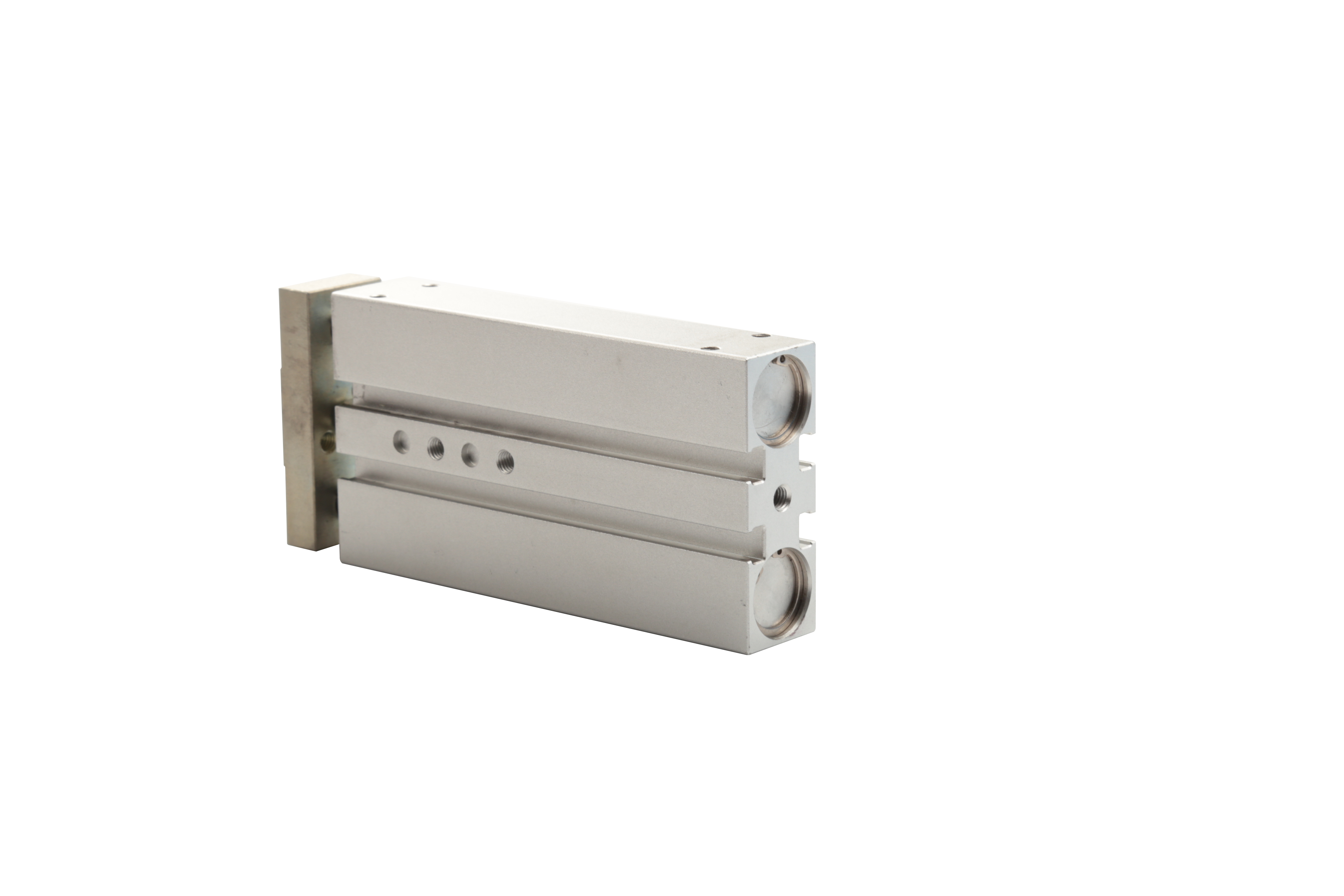

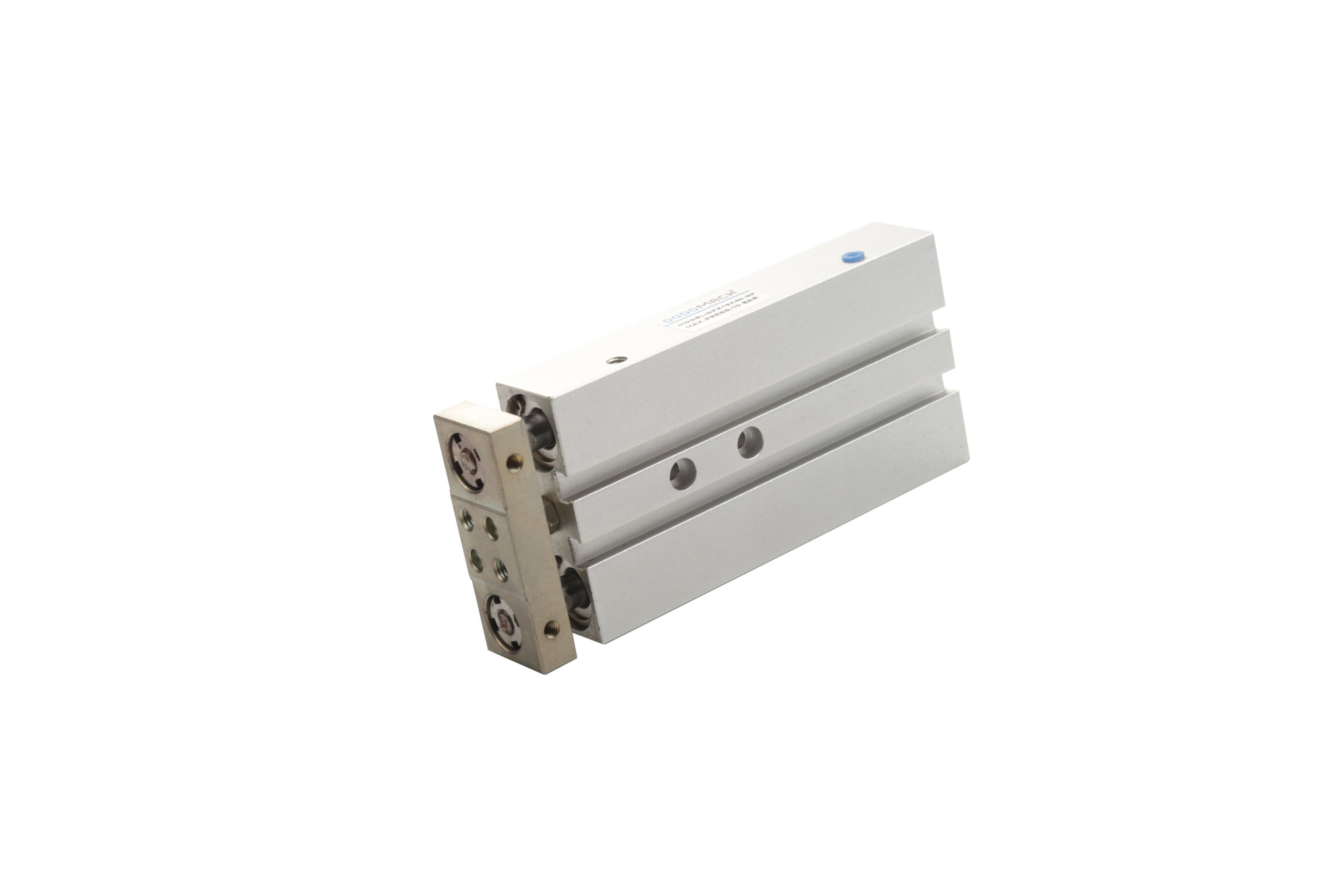

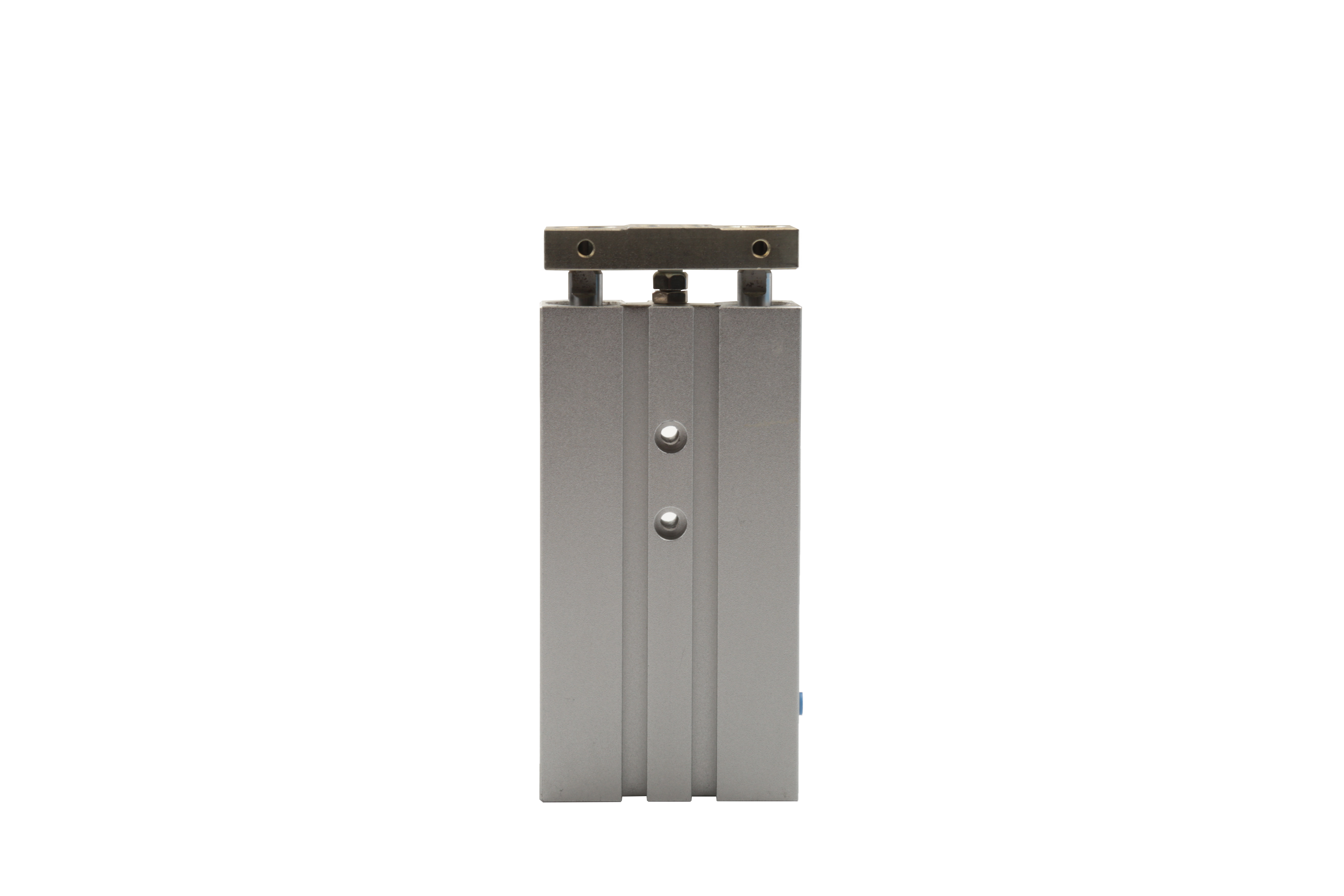

DPZ Series

DPZ

DPZ Series

Model: DPZ

Operating pressure: 1~10 Bar

Category Cylinders

Description
Related Products

Ordering code

DPZ ordering code

Specification

Bore(mm)	10	16	20	25	32
Acting type	Double acting
Working medium	Air (To be filtered by 40μm filter element)
Operating pressure	1~10 Bar
Proof Pressure	15 Bar
Temperature range	-20~+80 ℃
Cushion type	Elastic end-position cushioning
Protection against rotation/guide	Parallel pistons / plain-bearing or recirculating ball bearing guide
Port size	M5				G1/8

DPZ Dimension

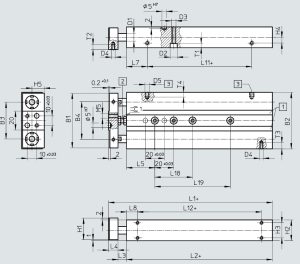

DPZ 10~16

DPZ 10~16

Bore	B1	B2	B3	B4	D1 Ø	D2 Ø	D3 Ø	D4	D5	H1	H2	H3	H4	H5	L1		L2
Bore	B1	B2	B3	B4	D1 Ø	D2 Ø	D3 Ø	D4	D5	H1	H2	H3	H4	H5	GF	KF	GF	KF
10	48	50	33	28	6	7.5	M5	M4	M5	20	19	13	4.5	11.5	89.6	100	71.6	82
16	58	60	39	40	8	7.5	M5	M4	M5	23	22	16	6	13	93.6	107	74.6	88

Bore	L3	L4	L5	L7		L8		L11		L12 ±0.2		T1	T2	T3	T4		Wrench 1
				GF	KF	GF	KF	GF	KF	GF	KF
10	8	10	30	23.4	40.7	13.1	30.8	24.8	24.4	45.5	44.2	4.4	6	5	5		7
16	9	10	30	22	38.9	11.6	25.5	30.6	30.6	51.4	54.4	4.4	5.5	6.5	5		8

Stroke	L18 ±0.03									L19 ±0.03
10	–									–
25	–									–
40	–									–
50	40									–
80	40									80
100	40									80

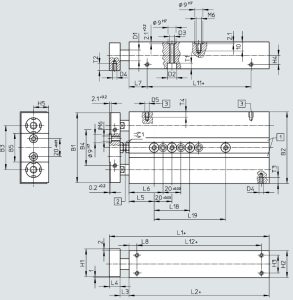

DPZ 20~32

DPZ 20~32

Bore	B1	B2	B3	B4	B5	D1 Ø	D2 Ø	D3 Ø	D4	D5	H1	H2	H3	H4	H5	L1		L2
Bore	B1	B2	B3	B4	B5	D1 Ø	D2 Ø	D3 Ø	D4	D5	H1	H2	H3	H4	H5	GF	KF	GF	KF
20	70	72	45.6	40	32	10	9	M6	M5	M5	25	24	16	7	14	98.6	115	76.6	93
25	78	80	49.2	40	32	12	10.5	6.4	M5	M5	31	30	20	10	17	98.6	116	76.6	94
32	96	98	57	40	35	16	10.5	6.4	M6	G1/8	39	38	26	11.5	21	110.1	130	80.1	100

Bore	L3	L4	L5	L6	L7		L8		L11		L12 ±0.2		T1	T2	T3	T4		Wrench 1
Bore	L3	L4	L5	L6	GF	KF	GF	KF	GF	KF	GF	KF	T1	T2	T3	T4		Wrench 1
20	10	12	30	–	22.8	43.4	12.9	33.5	31	30.7	50.8	50.5	5.7	6.5	7	6		10
25	10	12	28	38	20.2	40	8.7	28.8	36.2	33.8	59.2	56.5	6.4	8	7	6		10
32	15	15	35	45	25	44.9	10	26	30.1	30.1	60.1	64	6.4	8	9	9		10

Stroke	L18 ±0.03									L19 ±0.03
10	–									–
25	–									–
40	–									–
50	40									–
80	40									80
100	40									80
