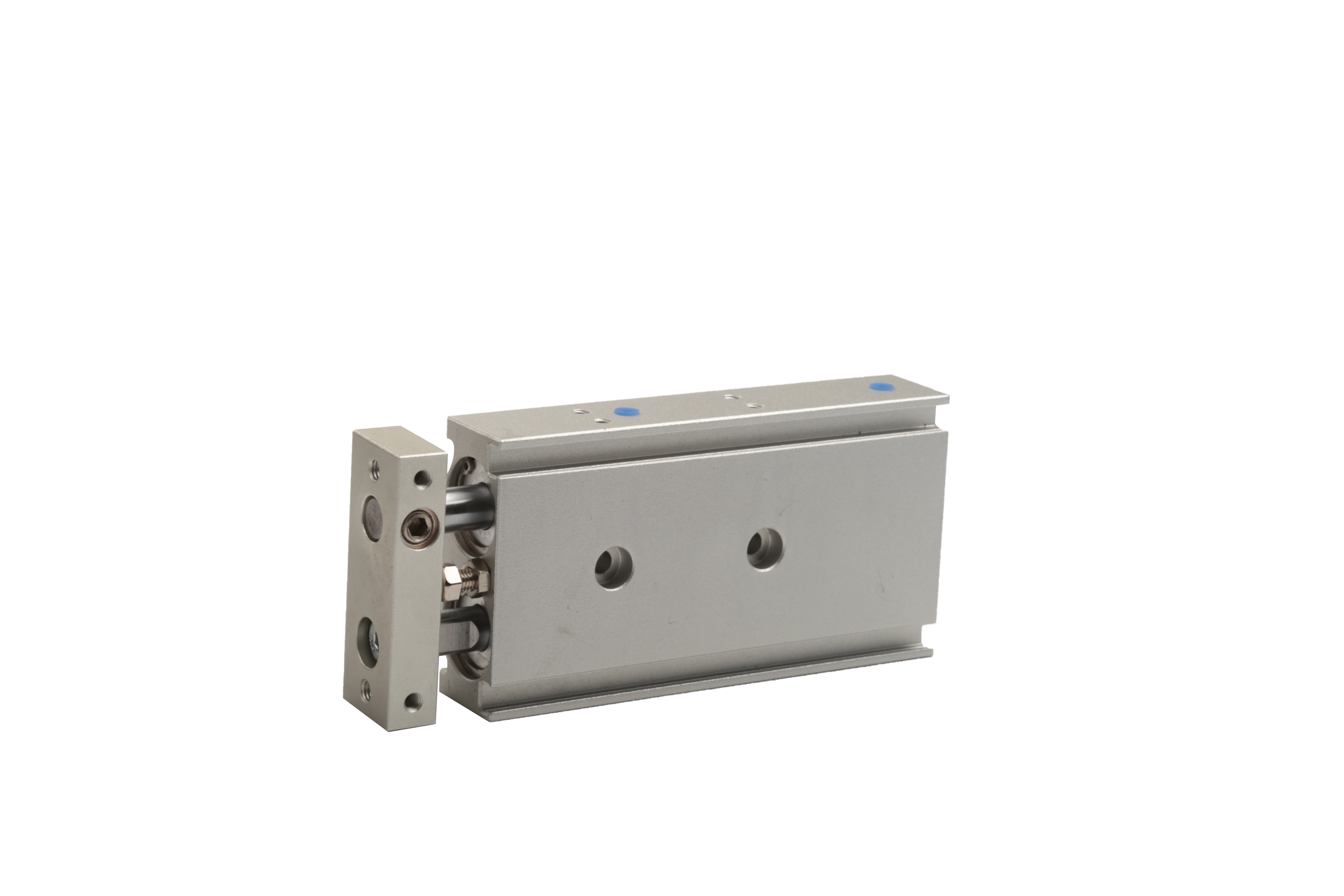

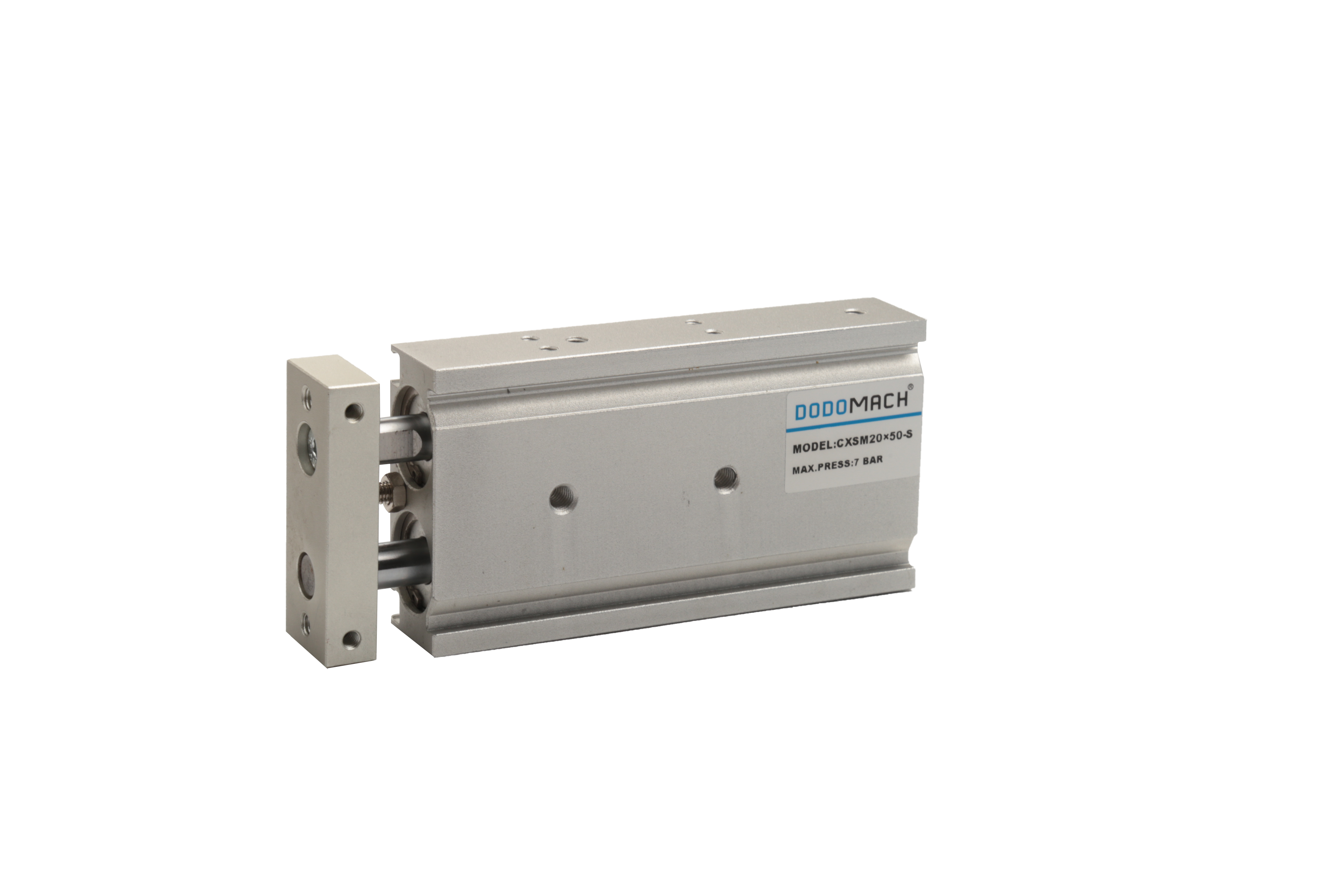

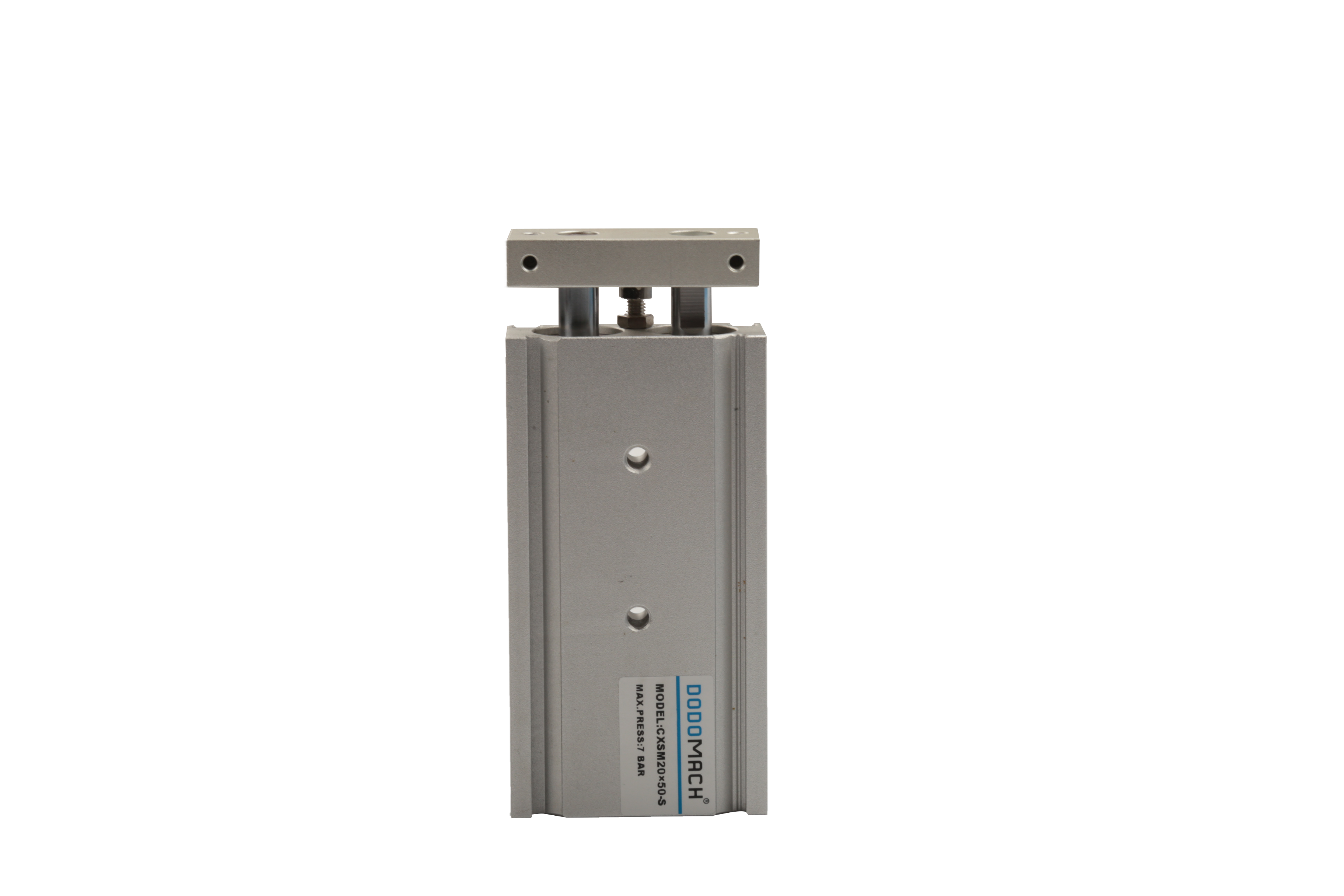

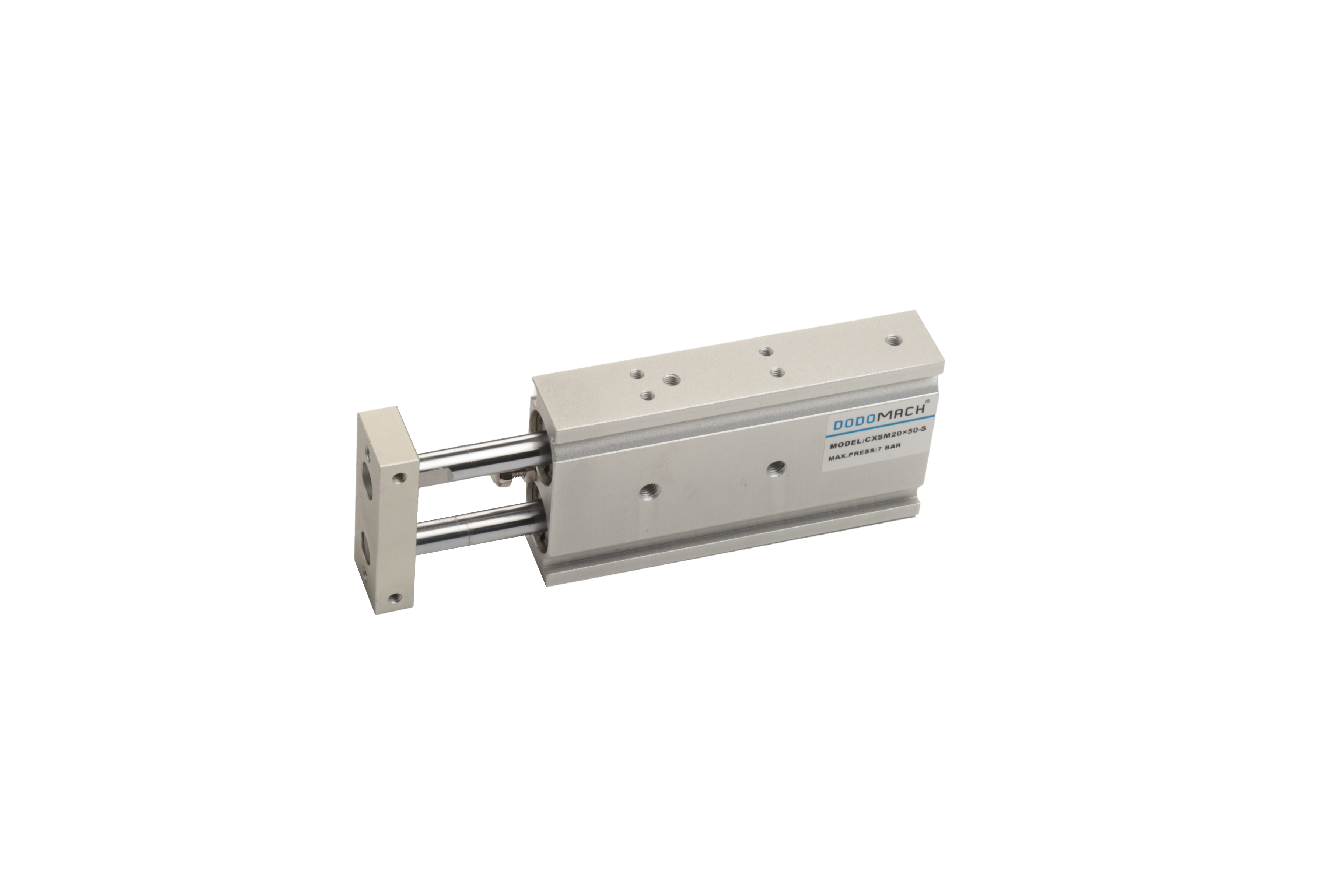

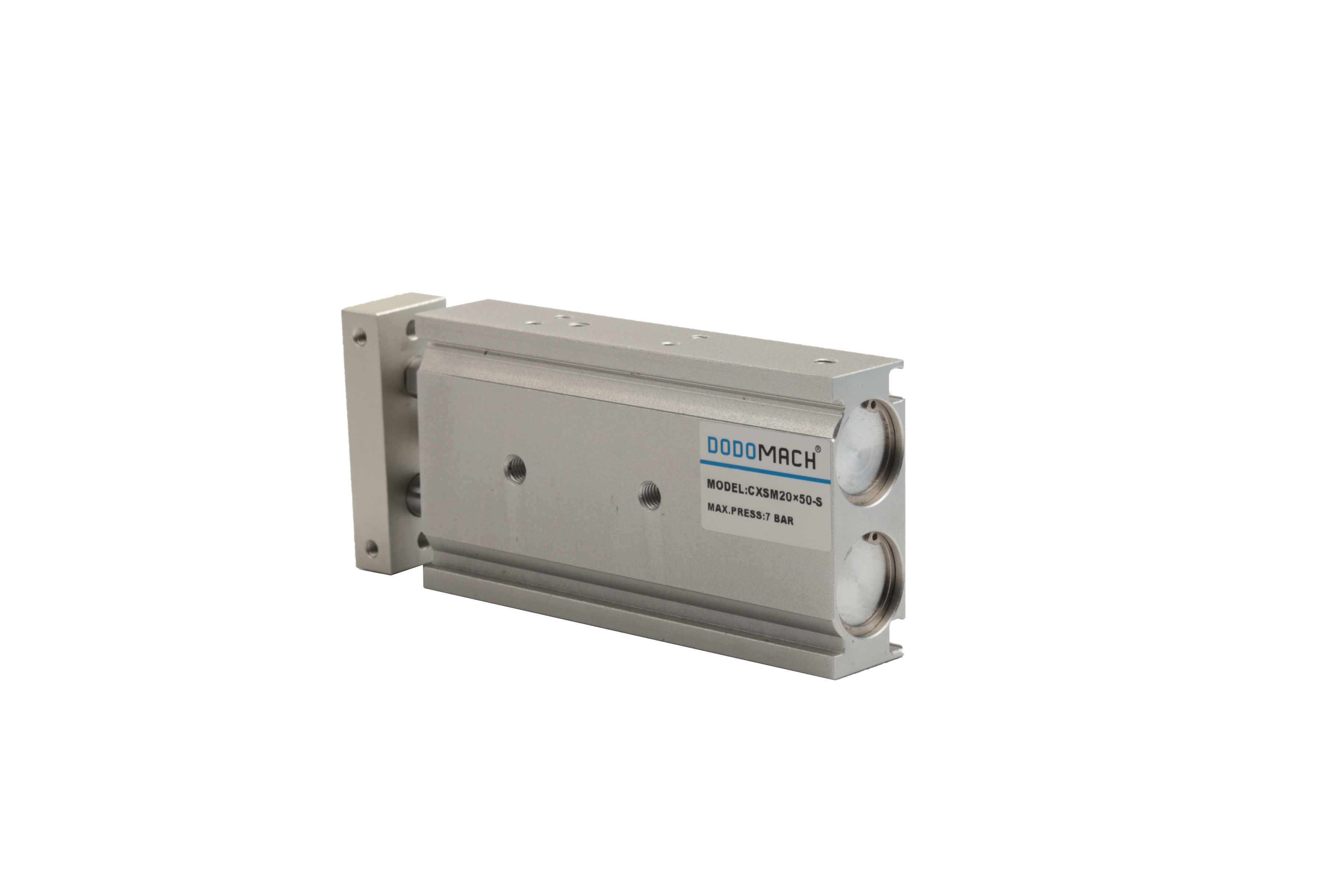

    CXS Series

    Model: CXS

    Operating pressure: 1~7 Bar

    Category

    Ordering code

    CXS ordering code

    Specification

    Bore(mm) 6 10 15 20 25 32
    Acting type Double acting
    Working medium Air(to be filtered by 40µm filter element)
    Operating pressure 1~7 Bar
    Proof pressure 10.5 Bar
    Temperature range -10~+60℃
    Operating speed range 30~300mm/s 30~800mm/s 30~700mm/s 30~600mm/s
    Cushion type Rubber bumper
    Stroke adjustable range 0 to –5 mm compared to the standard stroke
    Port size M5×0.8 G1/8″

    CXS Dimension

    CXS 6

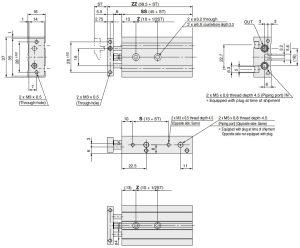

    CXS 6 dimension



    Model Stroke Z S SS ZZ
    CXS□6-10 10 15 23 55 68.5
    CXS□6-20 20 20 33 65 78.5
    CXS□6-30 30 25 43 75 88.5
    CXS□6-40 40 30 53 85 98.5
    CXS□6-50 50 35 63 95 108.5



    CXS 10~15

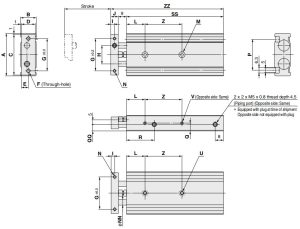

    CXS 10~15 dimension

    Model A B C D E F G H I J L M N NN P Q QQ R U V
    CXS□10 46 17 44 15 7.5 2xM4x0.7 35 20 4 8 20 2 x Ø3.4 through
    2 x Ø6.5 counter-
    bore depth 3.3    		 2xM3x0.5
    thread depth 5    		 Ø6 33.6 8.5 7 30 2xM4x0.7
    thread depth 7    		 4xM3x0.5
    thread depth 4.5
    CXS□15 58 20 56 18 9 2xM5x0.8 45 25 5 10 30 2 x Ø4.3 through
    2 x Ø8 counter-
    bore depth 4.4    		 2xM4x0.7
    thread depth 6    		 Ø8 48 10 10 38.5 2xM5x0.8
    thread depth 8    		 4xM4x0.7
    thread depth 5



    Symbol SS Z ZZ
          Stroke
    Model    		 10 15 20 25 30 35 40 45 50 60 70 75 80 90 100 10,15
    20,25    		 30,35
    40,45,50    		 60,70,75 80 90,100 10 15 20 25 30 35 40 45 50 60 70 75 80 90 100
    CXS□10 65 70 75 80 85 90 95 100 105 115 125 130 – – – 30 40 50 – – 82 87 92 97 102 107 112 117 122 132 142 147 – – –
    CXS□15 70 75 80 85 90 95 100 105 110 120 130 135 140 150 160 25 35 45 45 55 89 94 99 104 109 114 119 124 129 139 149 154 159 169 179



    CXS 20~32

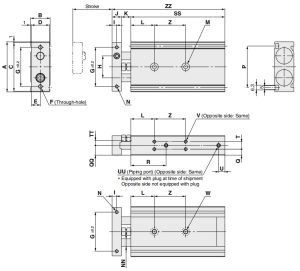

    CXS 20~32 dimension



    Model A B C D E F G H I J K L M N NN P
    CXS□20 64 25 62 23 11.5 2xM5x0.8 50 28 6 12 12 30 2xØ5.5 through
    2xØ9.5 counterbore depth 5.3    		 2xM4x0.7
    thread depth 6    		 Ø10 53
    CXS□25 80 30 78 28 14 2xM6x1.0 60 35 6 12 12 30 2xØ6.9 through
    2xØ11 counterbore depth 6.3    		 2xM5x0.8
    thread depth 7.5    		 Ø12 64
    CXS□32 98 38 96 36 18 2xM6x1.0 75 44 8 16 14 30 2xØ6.9 through
    2xØ11 counterbore depth 6.3    		 2xM5x0.8
    thread depth 8    		 Ø16 76



    Model Q QQ R T TT U UU V W
    CXS□20 7.75 12.5 45 9.5 6.5 8 4xM5x0.8 thread depth 4.5 8xM4x0.7 thread depth 5.5 2xM6x1.0 thread depth 10
    CXS□25 8.5 15 46 13 9 9 4xG1/8 thread depth 6.5 8xM5x0.8 thread depth 7.5 2xM8x1.25 thread depth 12
    CXS□32 9 19 20 20 11.5 10 4xG1/8 thread depth 6.5 8xM5x0.8 thread depth 7.5 2xM8x1.25 thread depth 12



    Symbol SS Z ZZ
                 Stroke
    Model    		 10 15 20 25 30 35 40 45 50 60 70 75 80 90 100 10,15
    20,25    		 30,35,40,45,50 60,70,75
    80,90,100    		 10 15 20 25 30 35 40 45 50 60 70 75 80 90 100
    CXS□20 80 85 90 95 100 105 110 115 120 130 140 145 150 160 170 30 40 60 104 109 114 119 124 129 134 139 144 154 164 169 174 184 194
    CXS□25 82 87 92 97 102 107 112 117 122 132 142 147 152 162 172 30 40 60 106 111 116 121 126 131 136 141 146 156 166 171 176 186 196
    CXS□32 92 97 102 107 112 117 122 127 132 142 152 157 162 172 182 40 50 70 122 127 132 137 142 147 152 157 162 172 182 187 192 202 212
