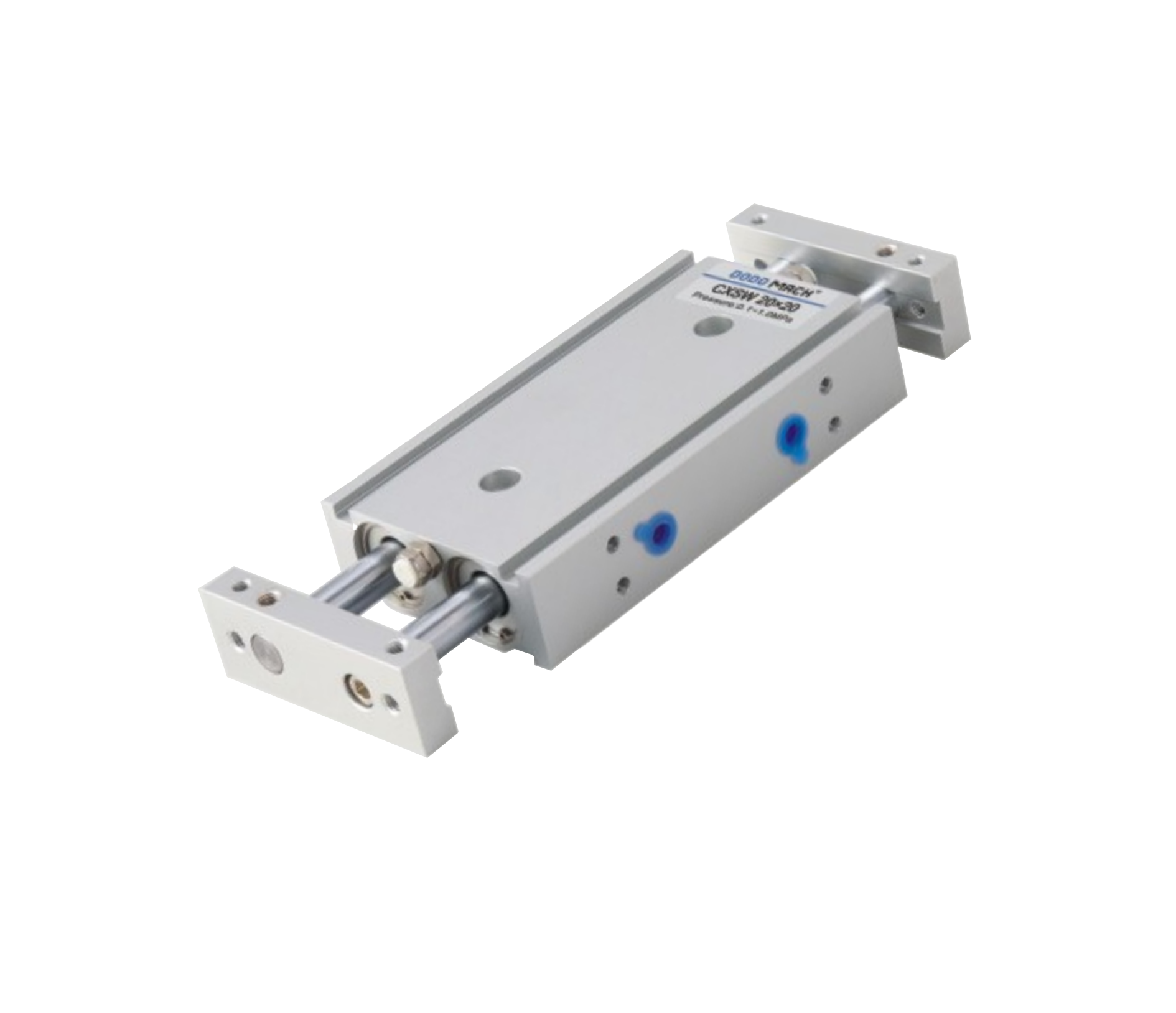

Model: CXSW

Operating pressure: 1~7 Bar

Category Cylinders

Description
Related Products

Ordering code

CXSW ordering code

Specification

Bore(mm)	6	10	15	20	25	32
Acting type	Double acting
Working medium	Air(to be filtered by 40µm filter element)
Operating pressure	1~7 Bar
Proof pressure	10.5 Bar
Temperature range	-10~+60℃
Operating speed range	50~500mm/s
Cushion type	Bumper is standard on both ends
Stroke adjustable range	0 to –10 mm compared to the standard stroke
Port size	M5×0.8				G1/8″

Dimension

CXSW 6

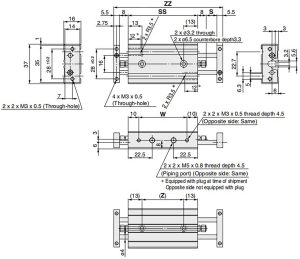

CXSW 6 dimension

Model	S	SS	ZZ	Z	W
CXSW 6-10	10	66	103	40	46
CXSW 6-20	20	76	123	50	56
CXSW 6-30	30	86	143	60	66
CXSW 6-40	40	96	163	70	76
CXSW 6-50	50	106	183	80	86

CXSW 10

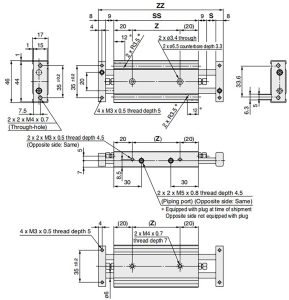

CXSW 10 dimension

Model	S	SS	ZZ	Z
CXSW 10-10	10	92	136	52
CXSW 10-20	20	102	156	62
CXSW 10-30	30	112	176	72
CXSW 10-40	40	122	196	82
CXSW 10-50	50	132	216	92

CXSW 15

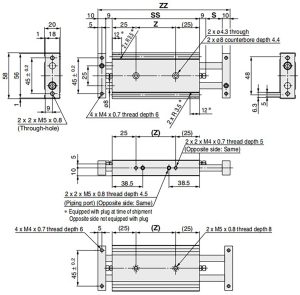

CXSW 15 dimension

Model	S	SS	ZZ	Z
CXSW 15-10	10	105	153	55
CXSW 15-20	20	115	173	65
CXSW 15-30	30	125	193	75
CXSW 15-40	40	135	213	85
CXSW 15-50	50	145	233	95

CXSW 20

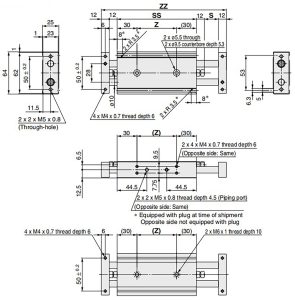

CXSW 20 dimension

Model	S	SS	ZZ	Z
CXSW 20-10	10	120	178	60
CXSW 20-20	20	130	198	70
CXSW 20-30	30	140	218	80
CXSW 20-40	40	150	238	90
CXSW 20-50	50	160	258	100
CXSW 20-75	75	185	308	125
CXSW 20-100	100	210	358	150

CXSW 25

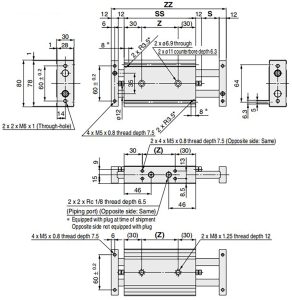

CXSW 25 dimension

Model	S	SS	ZZ	Z
CXSW 25-10	10	122	180	62
CXSW 25-20	20	132	200	72
CXSW 25-30	30	142	220	82
CXSW 25-40	40	152	240	92
CXSW 25-50	50	162	260	102
CXSW 25-75	75	187	310	127
CXSW 25-100	100	212	360	152

CXSW 32

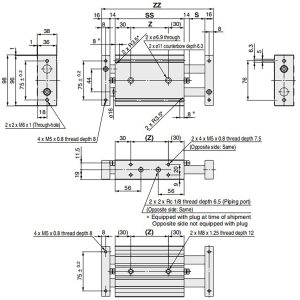

CXSW 32 dimension

Model	S	SS	ZZ	Z
CXSW 32-10	10	143	213	83
CXSW 32-20	20	153	233	93
CXSW 32-30	30	163	253	103
CXSW 32-40	40	173	273	113
CXSW 32-50	50	183	293	123
CXSW 32-75	75	208	343	148
CXSW 32-100	100	233	393	173
