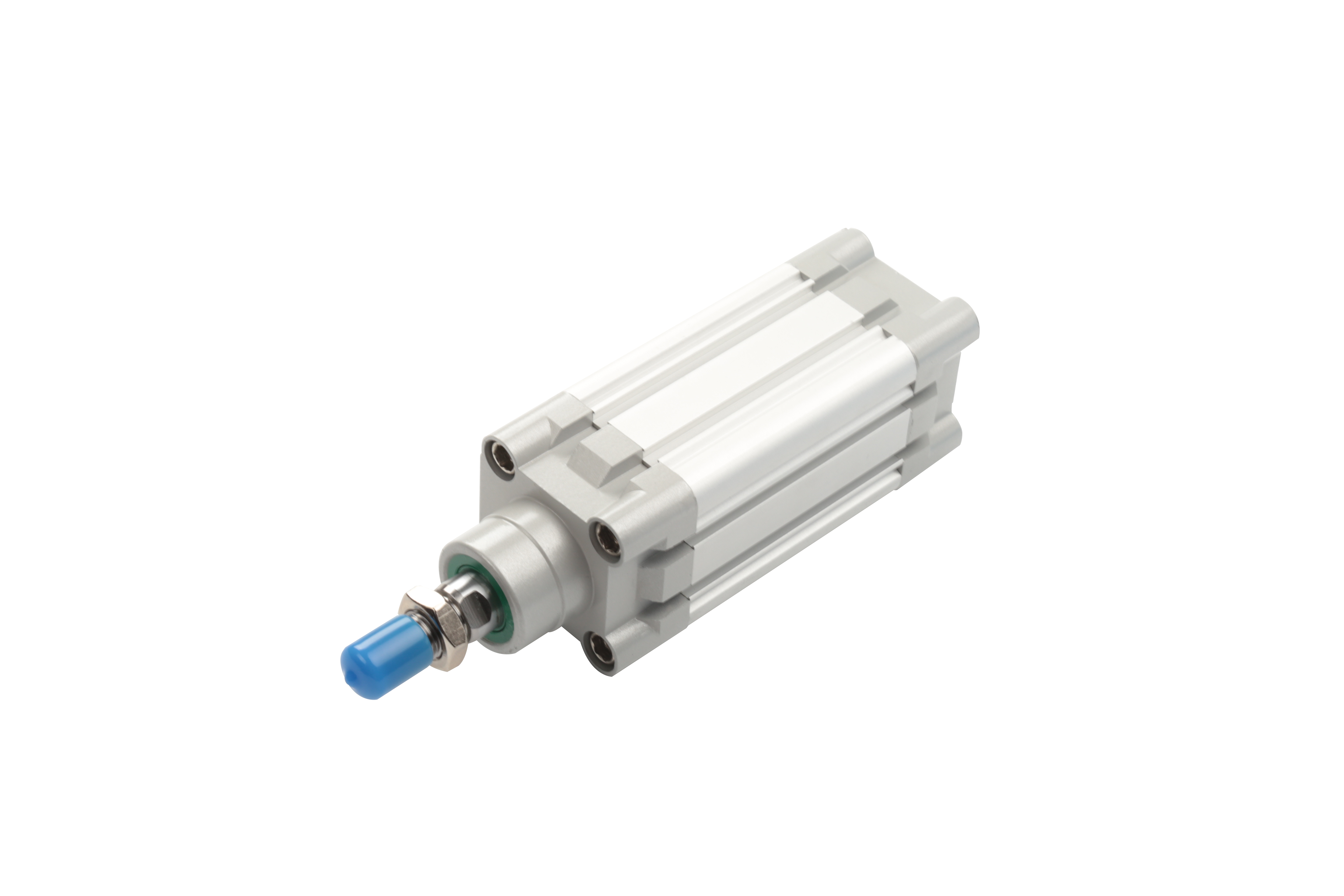

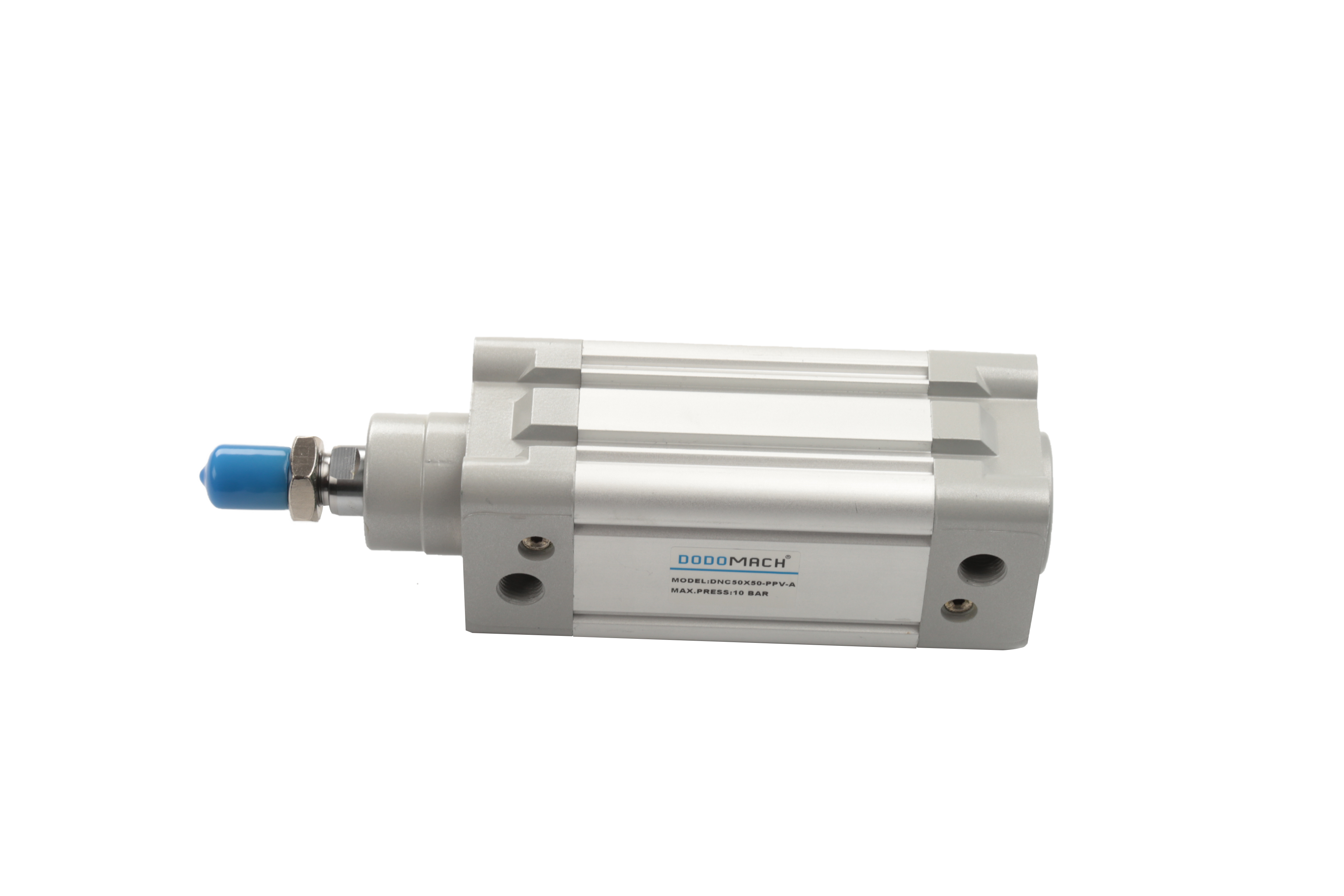

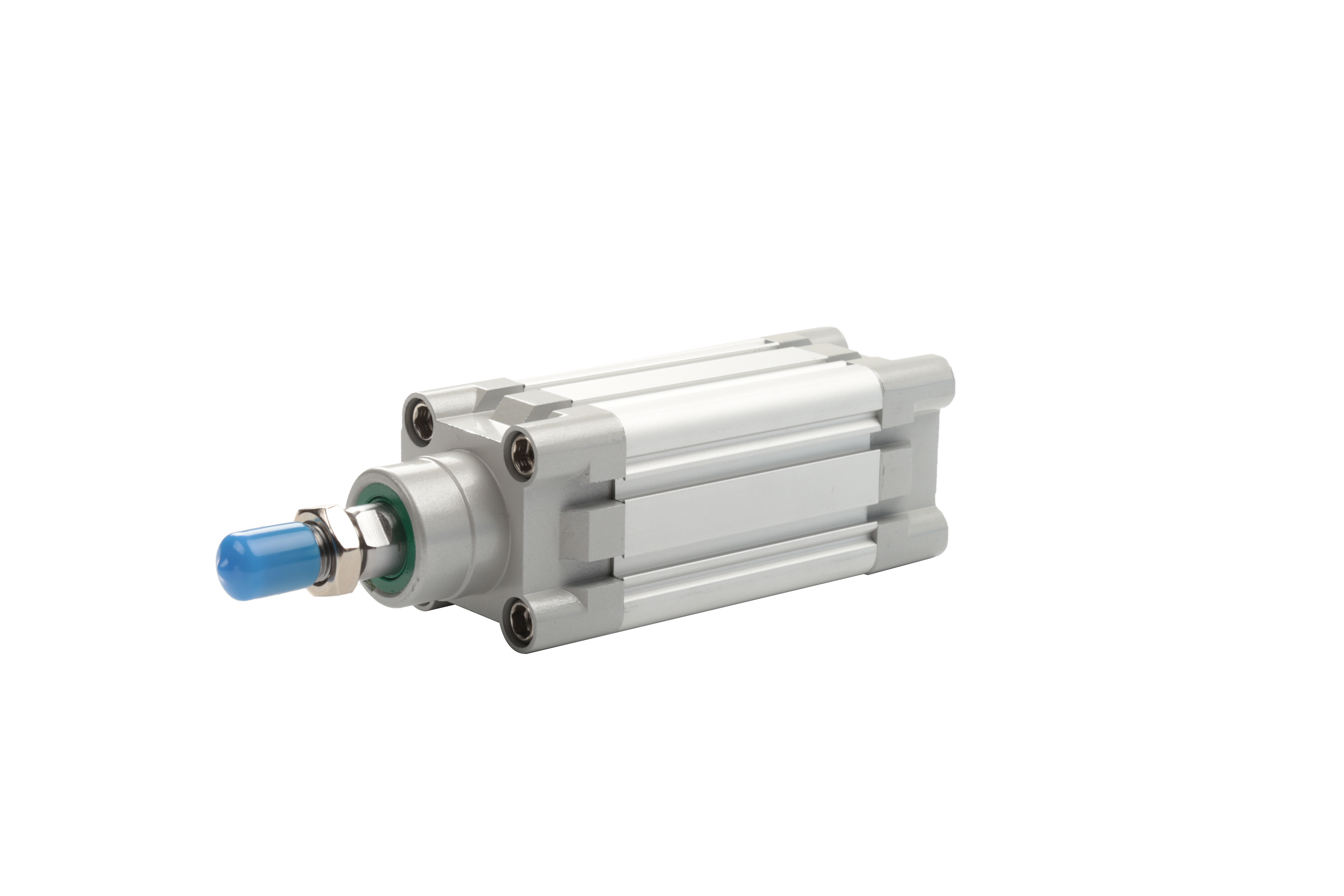

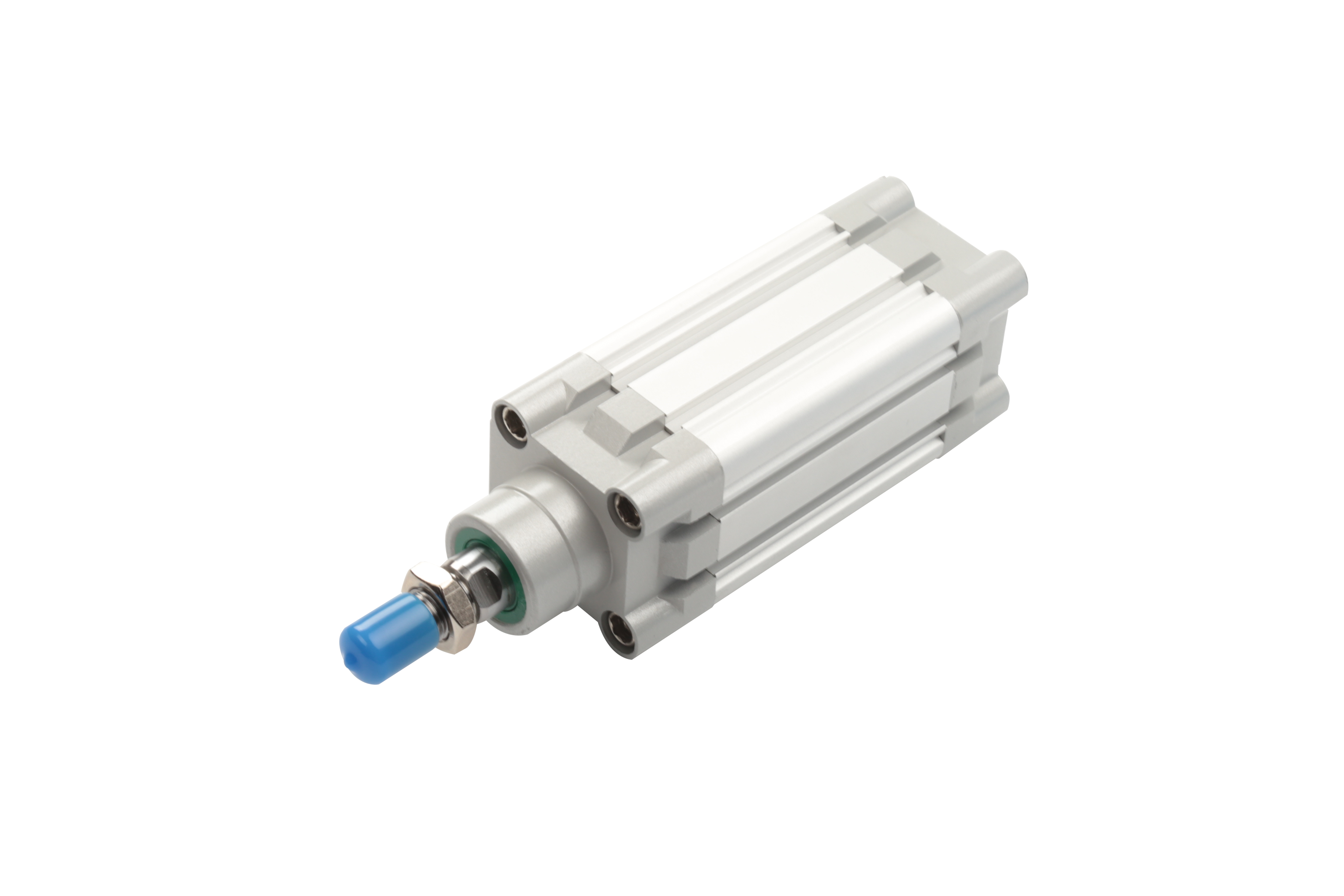

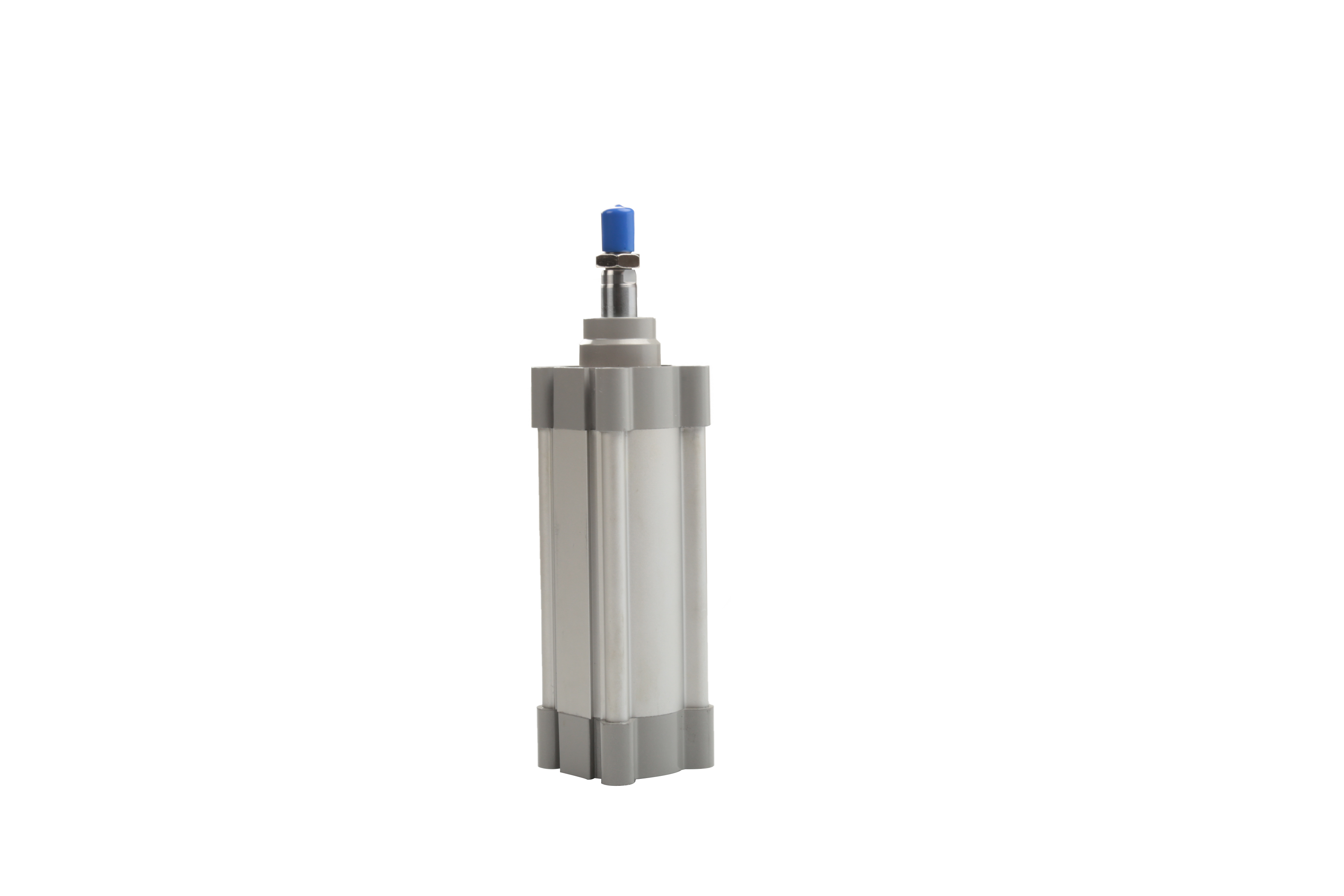

Ordering code
Specification
| Bore(mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 |
| Acting type | Double Action | ||||||
| Working Medium | Air (To be filtered by 40μm filter element ) | ||||||
| Operating Pressure | 1~10 Bar | ||||||
| Proof Pressure | 15 Bar | ||||||
| DNC-… -PPV adjustable cushioning length(mm) | 20 | 20 | 22 | 22 | 32 | 32 | 42 |
| Temperature Range | -20~80℃ | ||||||
| Port Size | G1/8″ | G1/4″ | G3/8″ | G1/2″ | |||
DNC Dimension
| Bore | AM | B Ø d11 |
BG | E | EE | J2 | J3 | KK | L1 | L2 |
| 32 | 22 | 30 | 16 | 45 | G1/8 | 6 | 5.2 | M10*1.25 | 18 | 94 |
| 40 | 24 | 35 | 16 | 54 | G1/4 | 8 | 6 | M12*1.25 | 21.5 | 105 |
| 50 | 32 | 40 | 17 | 64 | G1/4 | 10.4 | 8.5 | M16*1.5 | 28 | 106 |
| 63 | 32 | 45 | 17 | 75 | G3/8 | 12.4 | 10 | M16*1.5 | 28.5 | 121 |
| 80 | 40 | 45 | 17 | 93 | G3/8 | 12.5 | 8 | M20*1.5 | 34.7 | 128 |
| 100 | 40 | 55 | 17 | 110 | G1/2 | 12 | 10 | M20*1.5 | 38.2 | 138 |
| 125 | 54 | 60 | 22 | 134 | G1/2 | 13 | 8 | M27*2 | 46 | 160 |
| Bore | L7 | MM Ø |
PL | RT | TG | VA | VD | WH | ZJ |
Wrench 1 |
Wrench 2 | Wrench 3 |
| 32 | 3.3 | 12 | 15.6 | M6 | 32.5 | 4 | 10 | 26 | 120 | 10 | 16 | 6 |
| 40 | 3.6 | 16 | 14 | M6 | 38 | 4 | 10.5 | 30 | 135 | 13 | 18 | 6 |
| 50 | 5.1 | 20 | 14 | M8 | 46.5 | 4 | 11.5 | 37 | 143 | 17 | 24 | 8 |
| 63 | 6.6 | 20 | 17 | M8 | 56.5 | 4 | 15 | 37 | 158 | 17 | 24 | 8 |
| 80 | 10.5 | 25 | 16.4 | M10 | 72 | 4 | 15.7 | 46 | 174 | 22 | 30 | 6 |
| 100 | 8 | 25 | 18.8 | M10 | 89 | 4 | 19.2 | 51 | 189 | 22 | 30 | 6 |
| 125 | 14 | 32 | 18 | M12 | 110 | 4 | 20.5 | 65 | 225 | 27 | 36 | 8 |
