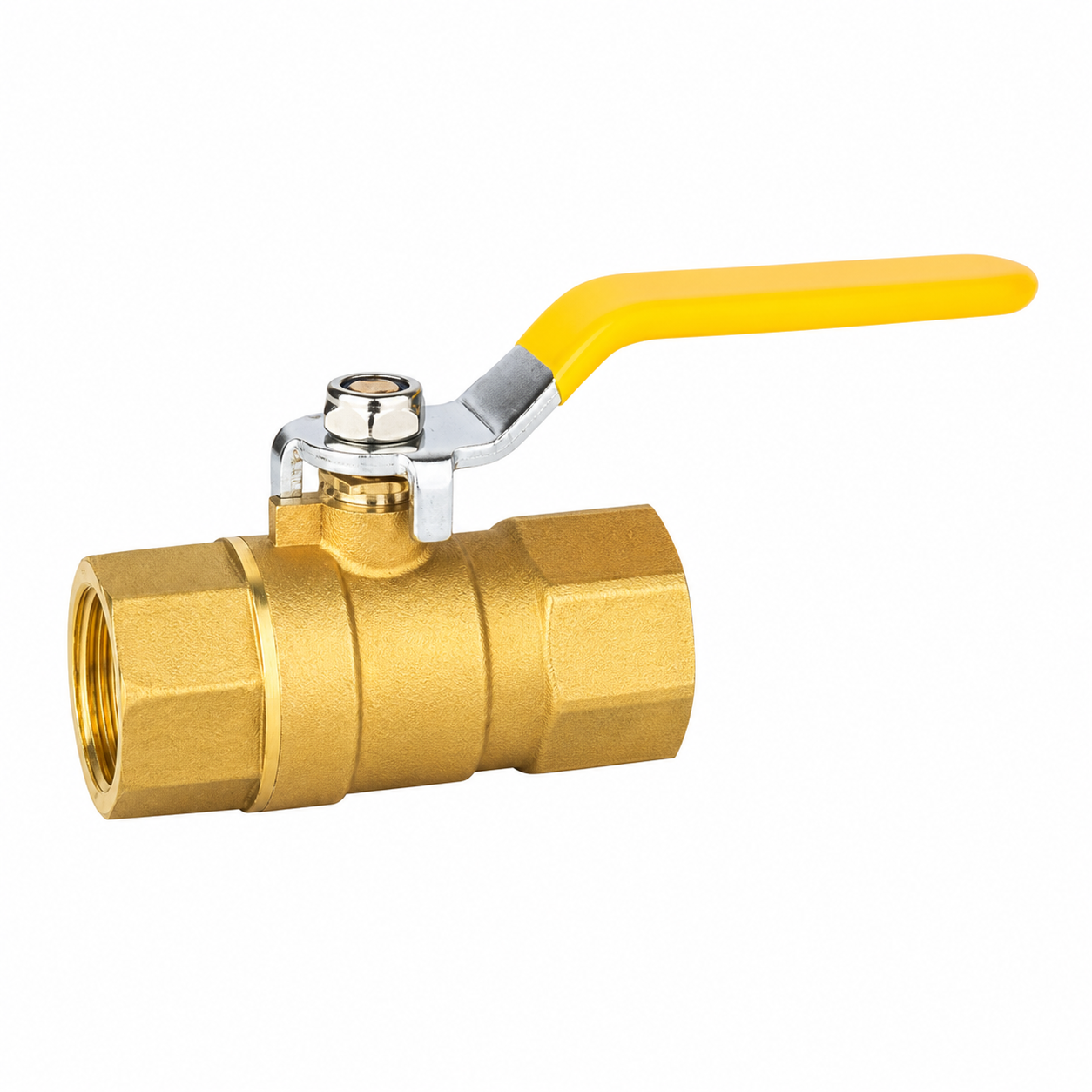

Product Details
| Product Type | Extended brass ball valve |
|---|---|
| Connection | Threaded connection |
| Handle Type | Extended long handle |
| Application | Water, gas, and oil service |
Technical Data
| Normal Pressure | 1.6 MPa |
|---|---|
| Working Medium | Water, gas, oil |
| Working Temperature | -20°C ≤ T ≤ 120°C |
| Thread Standard | ISO 228 |

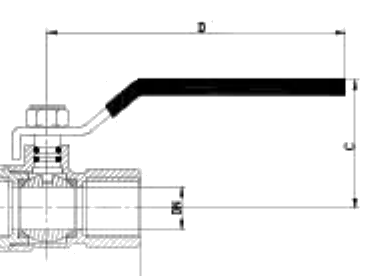

Dimensions
| Size | 1/4″ | 3/8″ | 1/2″ | 3/4″ | 1″ | 1 1/4″ | 1 1/2″ | 2″ | 2 1/2″ | 3″ | 4″ |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 47 | 47.8 | 61.4 | 72 | 79 | 95 | 101 | 119 | 143 | 165 | 190 |
| B | 23 | 23 | 29.5 | 35 | 42.7 | 53 | 63 | 79 | 102.5 | 120.5 | 144.5 |
| C | 39.2 | 39.8 | 54.2 | 57.6 | 60.6 | 75.8 | 81.3 | 88.5 | 121.5 | 129.5 | 141 |
| D | 87 | 87 | 95 | 95 | 126 | 140 | 140 | 165 | 224 | 224 | 283.5 |
| DN | 9 | 10 | 14.8 | 19 | 24 | 30.2 | 37 | 47 | 62 | 74 | 90 |
| PN | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
