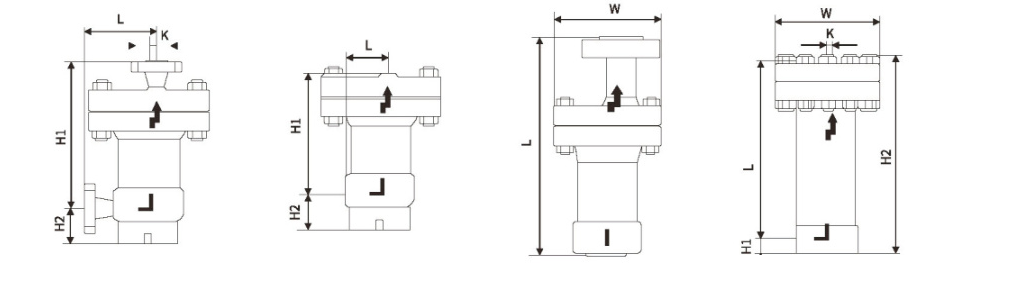

High Differential Pressure Bell Float Type Steam Trap dimension drawing

Part Name	Valve Body	Internal Parts & Bell Float
Material	WCB	304

Type	Nominal Diameter DN	Connection	Working Pressure (MPa)	Nominal Pressure PN	PMA/TMA (MPa/C)	Body Material	L (mm)	H1 (mm)	H2 (mm)	W (mm)	K (mm)
Type A	15-50	Socket Weld (ANSI, GB)	0.2~12.0	160	12.81/400	12Cr1MoV Chrome-Moly-Vanadium Steel	128	450	123	685	20
Type B	15-50	Flanged (JIS, ANSI, GB)	0.2~12.0	160	12.81/400	12Cr1MoV Chrome-Moly-Vanadium Steel	280	600	123	685	20
Type C	15-50	Socket Weld (ANSI, GB)	0.2~12.0	180	14.05/300	12Cr1MoV Chrome-Moly-Vanadium Steel	550	—	—	828	—
Type D	15-50	Flanged (JIS, ANSI, GB)	0.2~12.0	180	14.05/300	12Cr1MoV Chrome-Moly-Vanadium Steel	724	—	—	828	—
Type E	15-50	Socket Weld (ANSI, GB)	0.2~12.0	260	14.5/427	A105	605	60	—	365	20
Type F	15-50	Socket Weld (ANSI, GB)	0.2~12.0	420	18.52/550	12Cr1MoV Chrome-Moly-Vanadium Steel	685	83	—	530	20

FLUID VALVE

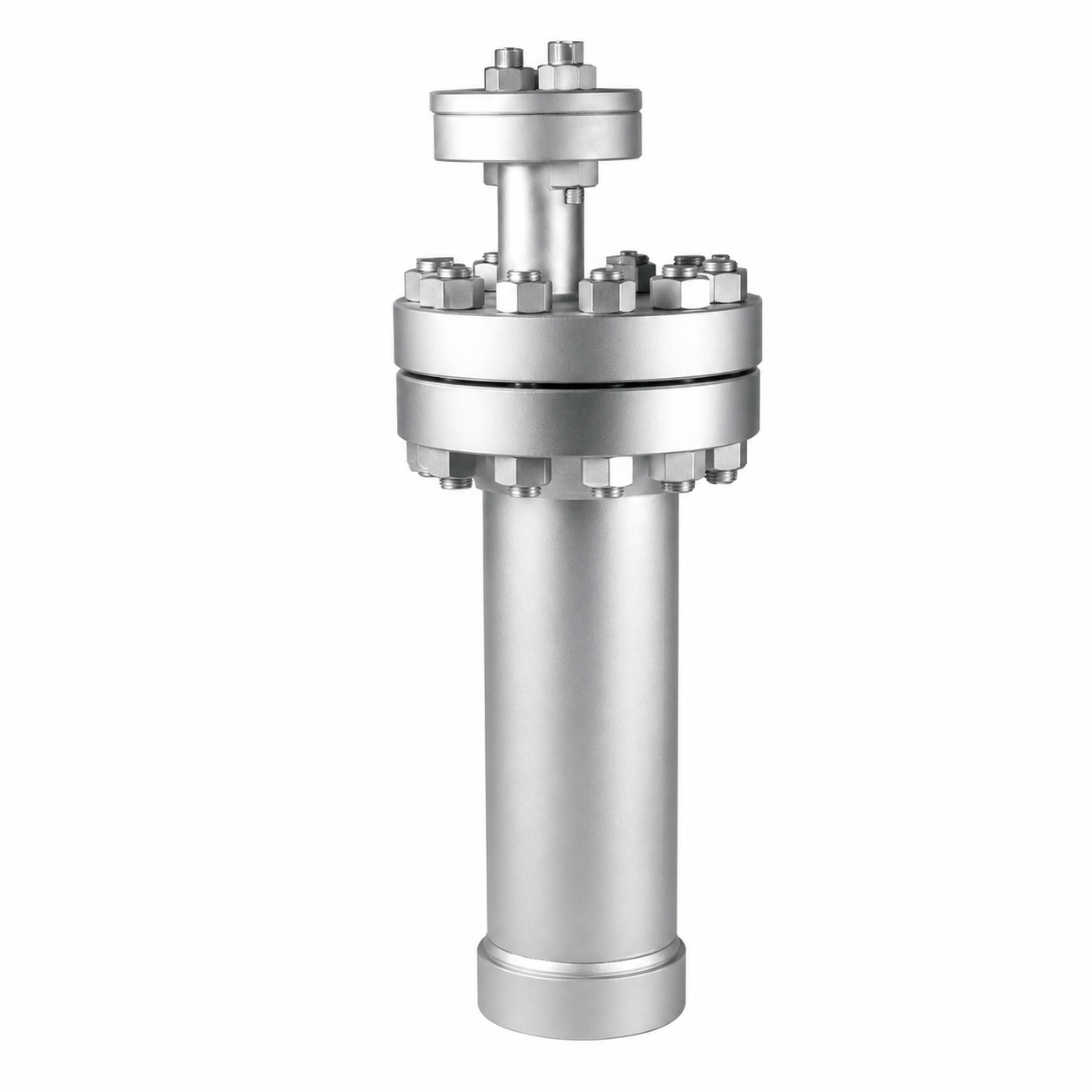

High Differential Pressure Bell Float Type Steam Trap
