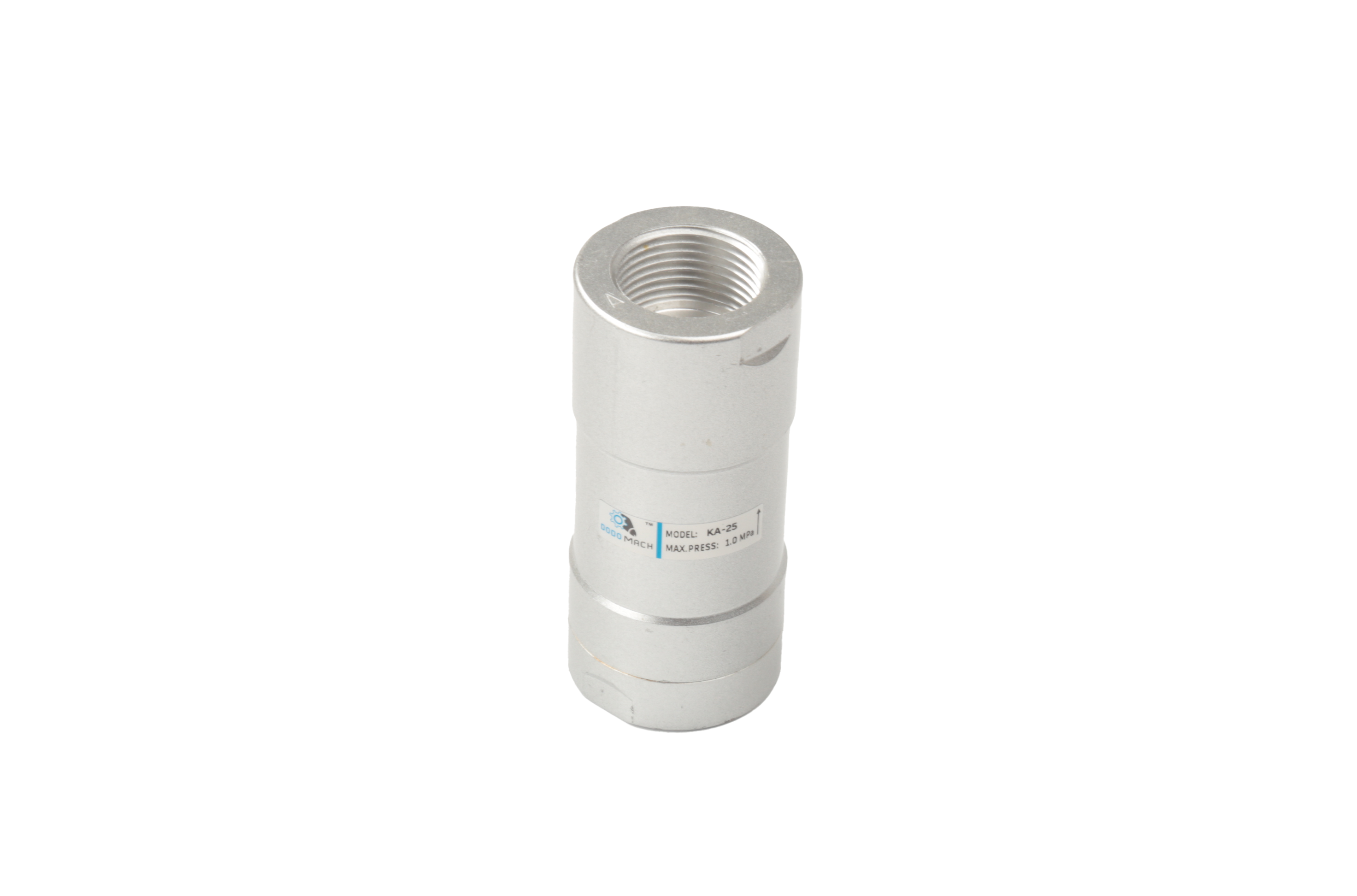

    KA Series

    Model: KA-06 ~ KA-50

    Operating pressure: 0.5-10 Bar

    Category

    Ordering Code

    KA ordering code

    Specification

    Model KA-06 KA-08 KA-10 KA-15 KA-20 KA-25 KA-32 KA-40 KA-50
    Working Pressure 0.05~1 MPa
    Environment Temperature -10~55℃
    Medium Temperature 0~ 55℃
    Circulating 10 20 40 60 110 190 300 400 650
    Startup Ability ≤0.03MPa
    Leak Out Flow(cm³/min) 50 50 120 120 250 250 500 500 500
    Respond Time (Sec) 0.03
    Life(Ten thousand Times) ≥150

    KA Dimension

    Model D D1 D2 S L a a1 h
    KA-06 G1/8 M10X 1  φ13 φ28 24 64 10 6 1.4
    KA-08 G1/4 M12 X1.5 φ16 φ28 24 64 12 6 1.4
    KA-10 G3/8 M16 X1.5 φ20 φ40 36 86 14 10 1.8
    KA-15 G1/2 M20 X1.5 φ26 φ40 36 86 14 10 1.8
    KA-20 G3/4 M27 X 2 φ32 φ55 46 112 21 12 1.8
    KA-25 G1 M33 X 2 φ40 φ55 46 112 23 12 2.7
    KA-32 G1-1/4 M42 X 2 φ48 φ88 75 161 25 22 2.7
    KA-40 G1-1/2 M48 X 2 φ54 φ88 75 161 26 26 2.7
    KA-50 G2 M60 X 2 φ70 φ100 90 95 26 26 4.5
