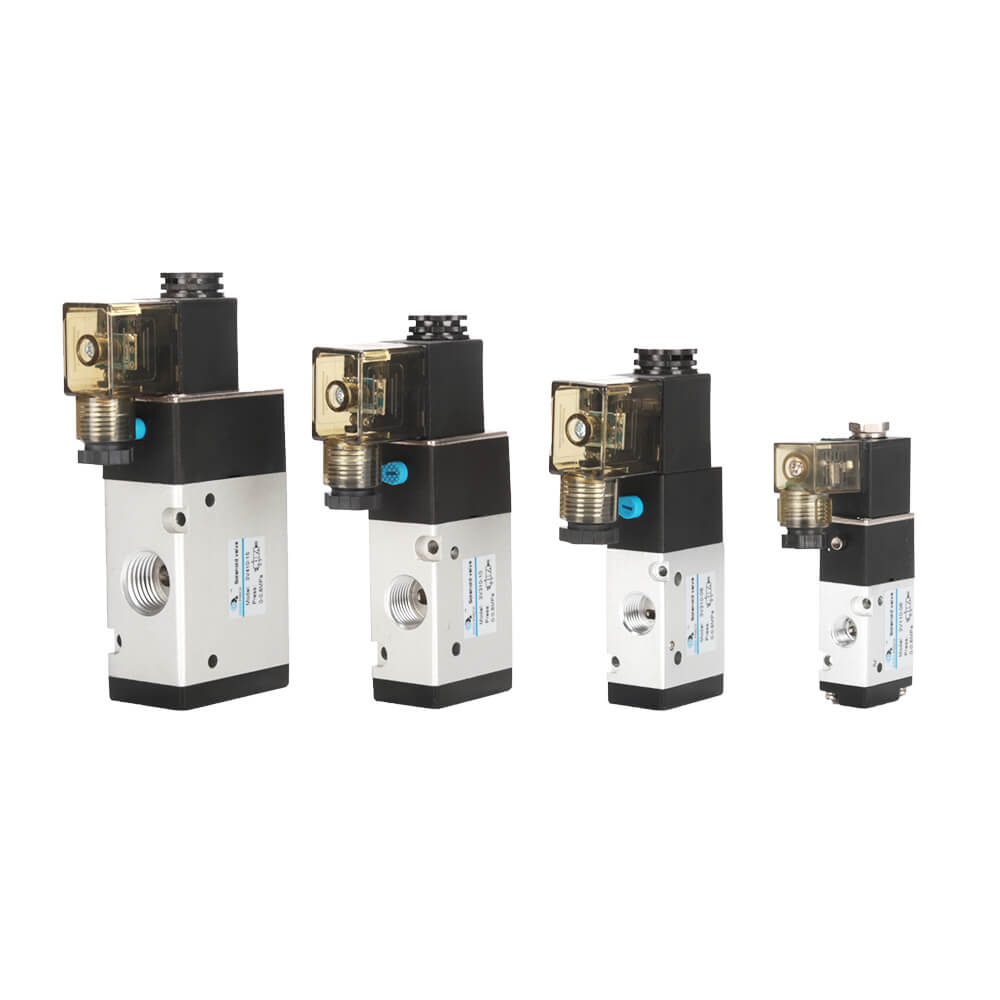

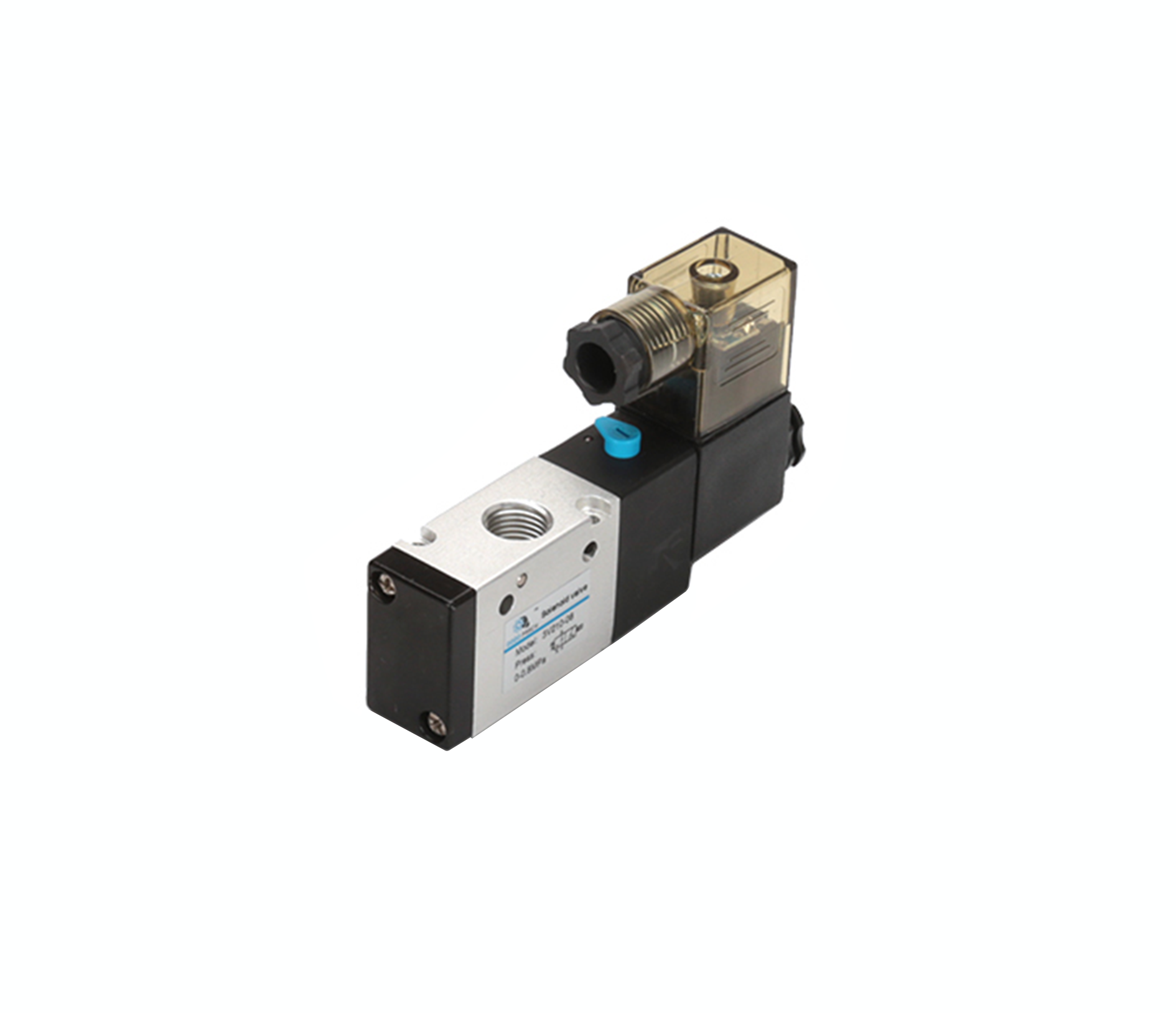

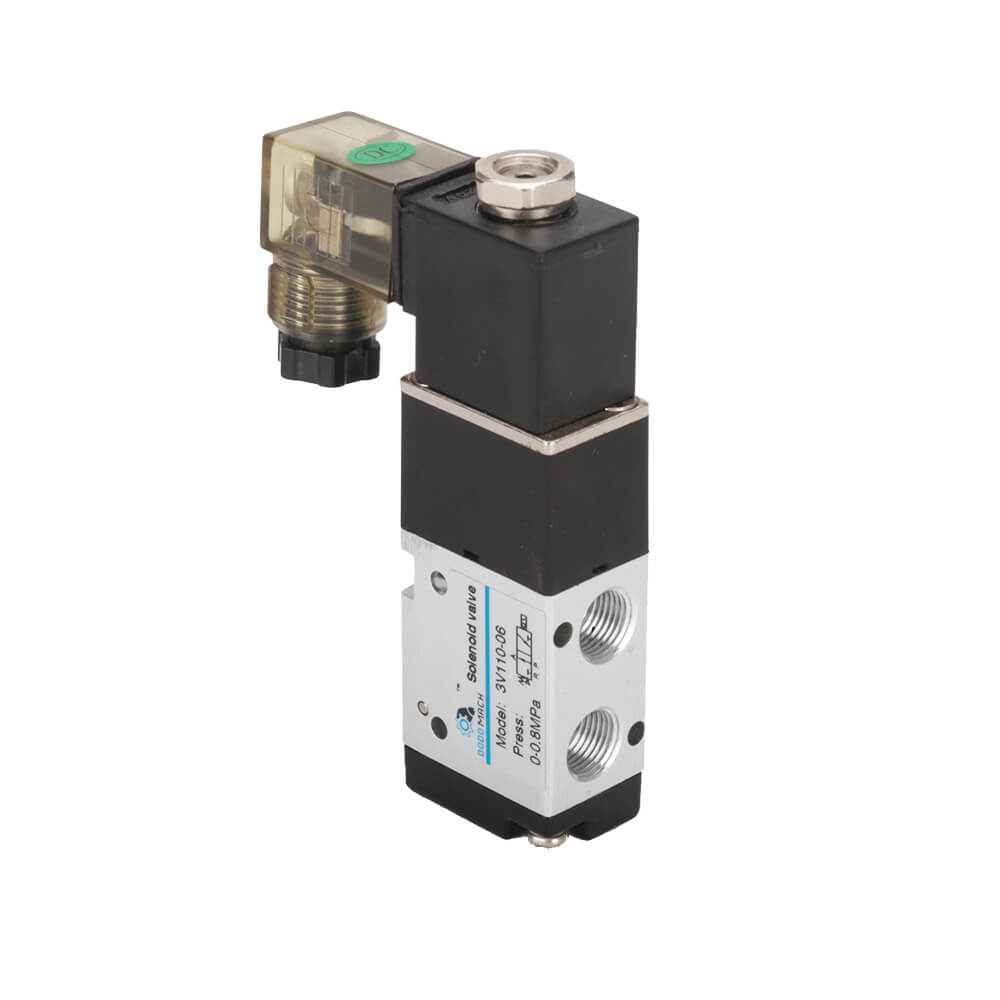

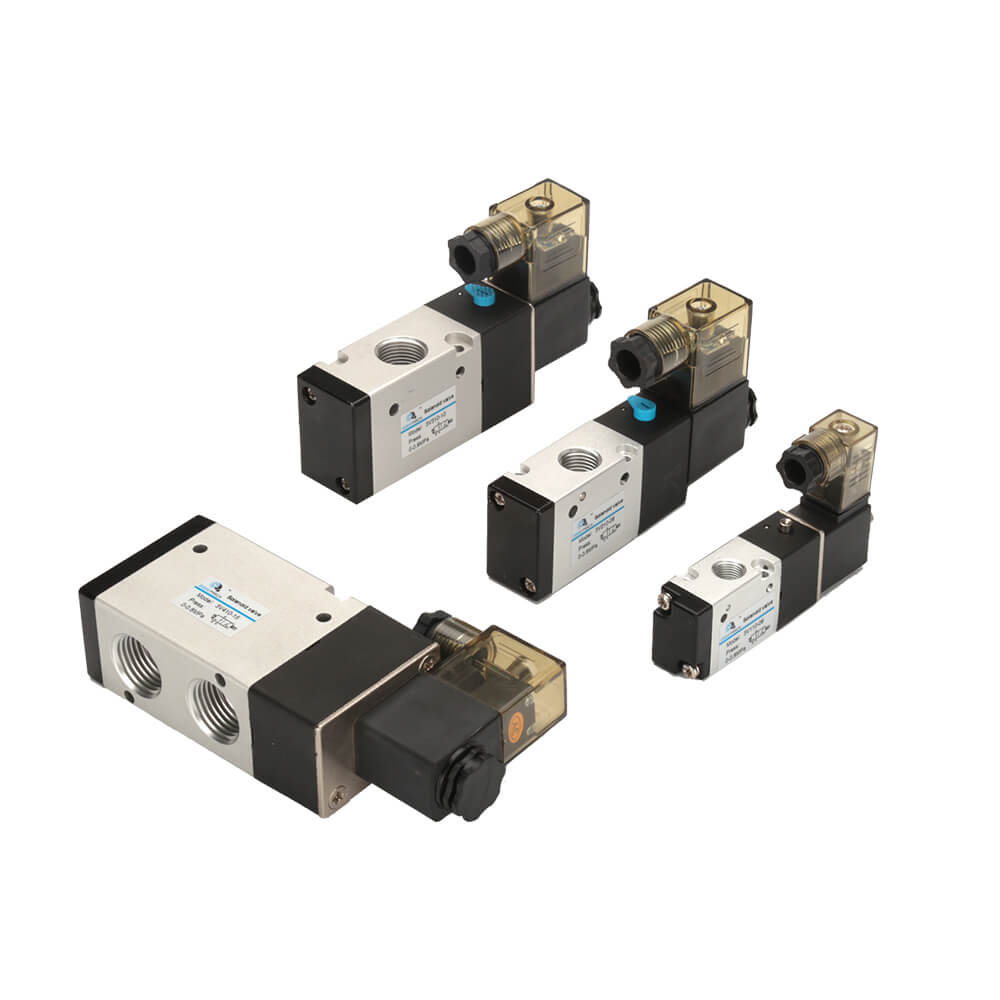

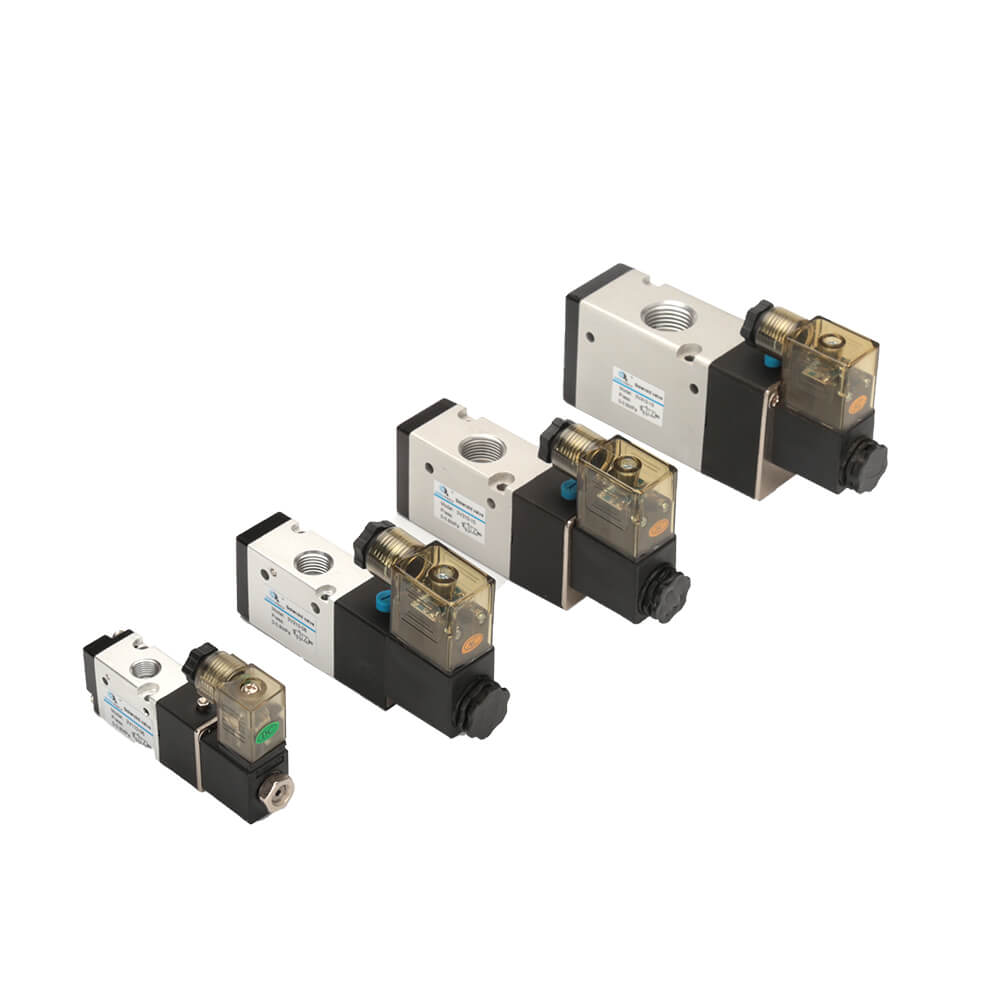

3V Series is a pneumatic directional solenoid valve with 3 ports & 2 positions. M5~1/2″ port sizes are available. G, PT and NPT threads all can be customized.

Product feature:
1. Structure in sliding column mode: good tightness and sensitive reaction.
2. Double control solenoid valves have memory function.
3. Internal hole adopts special processing technology which has lttle attrition friction, low start pressure and long service life.
4. No need to add oil for lubrication.
5. Affiliated manual devices are equipped to facilitate installation and debugging.
6. Several standard voltage grades are optional.
7. Integrate with the manifold to save installation space.

Ordering Code

3V100 ordering code

3V200 ordering code

3V300 ordering code

Specification

Model	3V110-M5	3V120-M5	3V110-06	3V120-06
Fluid	Air(to be filtered by 40μm filter element)
Acting	Internal pilot
Port size	M5		1/8″
Orifice size	3V110-06,3V120-06:10.2mm²(Cv=0.6)
Valve type	3 port 2 position
Lubrication	Not required
Operating pressure	0.15～0.8MPa(21～114psi)
Proof pressure	1.2MPa(175psi)
Temperature	-20～70℃
Material of body	Aluminum alloy

Model	3V210-06	3V220-06	3V210-08	3V220-08
Fluid	Air(to be filtered by 40μm filter element)
Acting	Internal pilot
Port size	In=Out=1/8″		In=Out=1/4″
Orifice size	3V210-08,3V220-08:17.0mm²(Cv=1.0)
Valve type	3 port 2 position
Lubrication	Not required
Operating pressure	0.15～0.8MPa(21～114psi)
Proof pressure	1.2MPa(175psi)
Temperature	-20～70℃
Material of body	Aluminum alloy

Model	3V310-08	3V320-08	3V310-10	3V320-10
Fluid	Air(to be filtered by 40μm filter element)
Acting	Internal pilot
Port size	In=Out=1/4″		In=Out=3/8″
Orifice size	3V310-10,3V320-10:28.0mm²(Cv=1.65)
Valve type	3 port 2 position
Lubrication	Not required
Operating pressure	0.15～0.8MPa(21～114psi)
Proof pressure	1.2MPa(175psi)
Temperature	-20～70℃
Material of body	Aluminum alloy
