Product Details

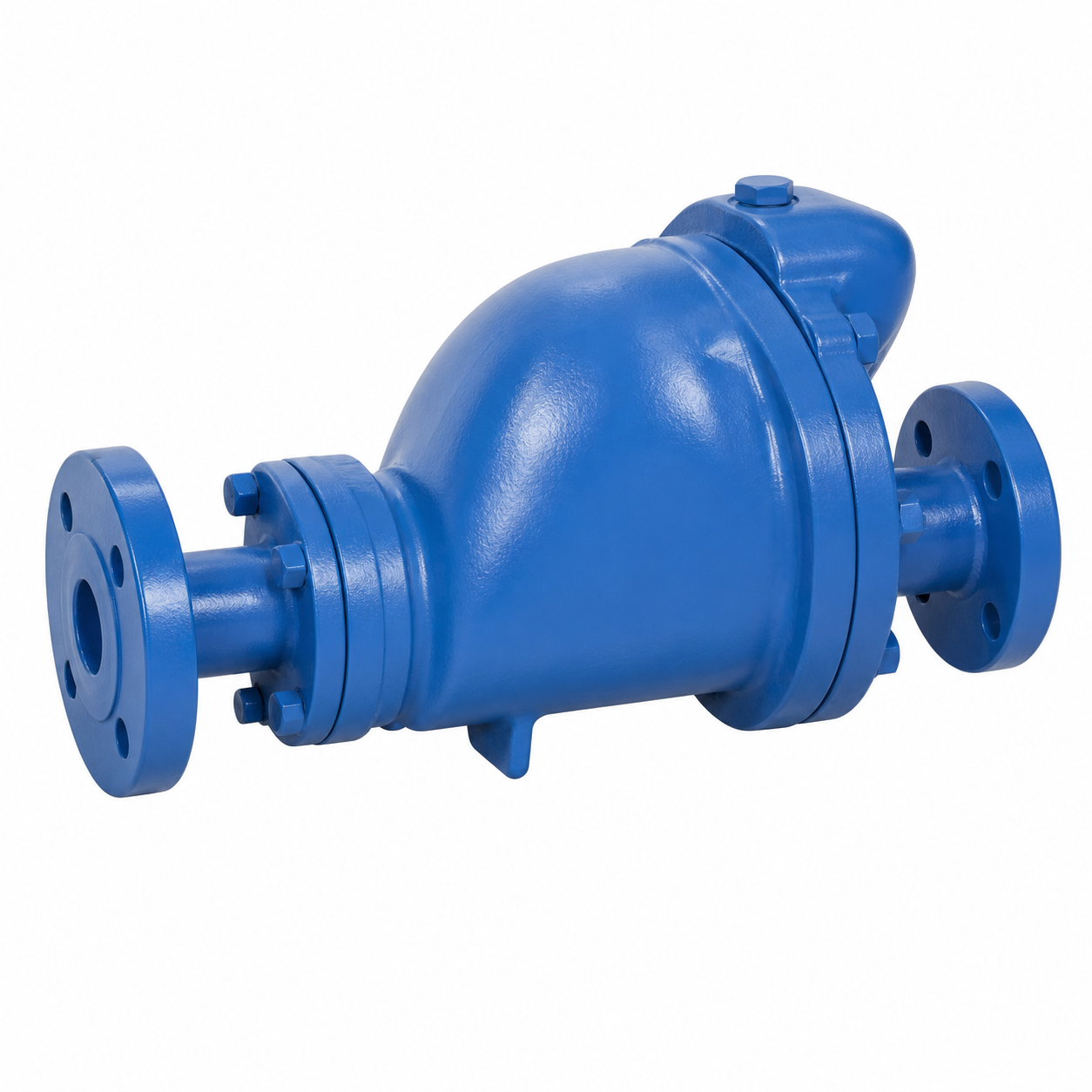

The Lever Float Type Steam Trap is designed for automatic condensate discharge in steam systems. Its lever float structure supports continuous drainage, reliable sealing and stable operation for industrial steam equipment, heat exchangers and process pipelines.
Main Parts Material
| Part | Body | Valve Seat | Lever Float |
|---|---|---|---|
| Material | WCB | 1Cr13 | 304 |
Technical Parameters

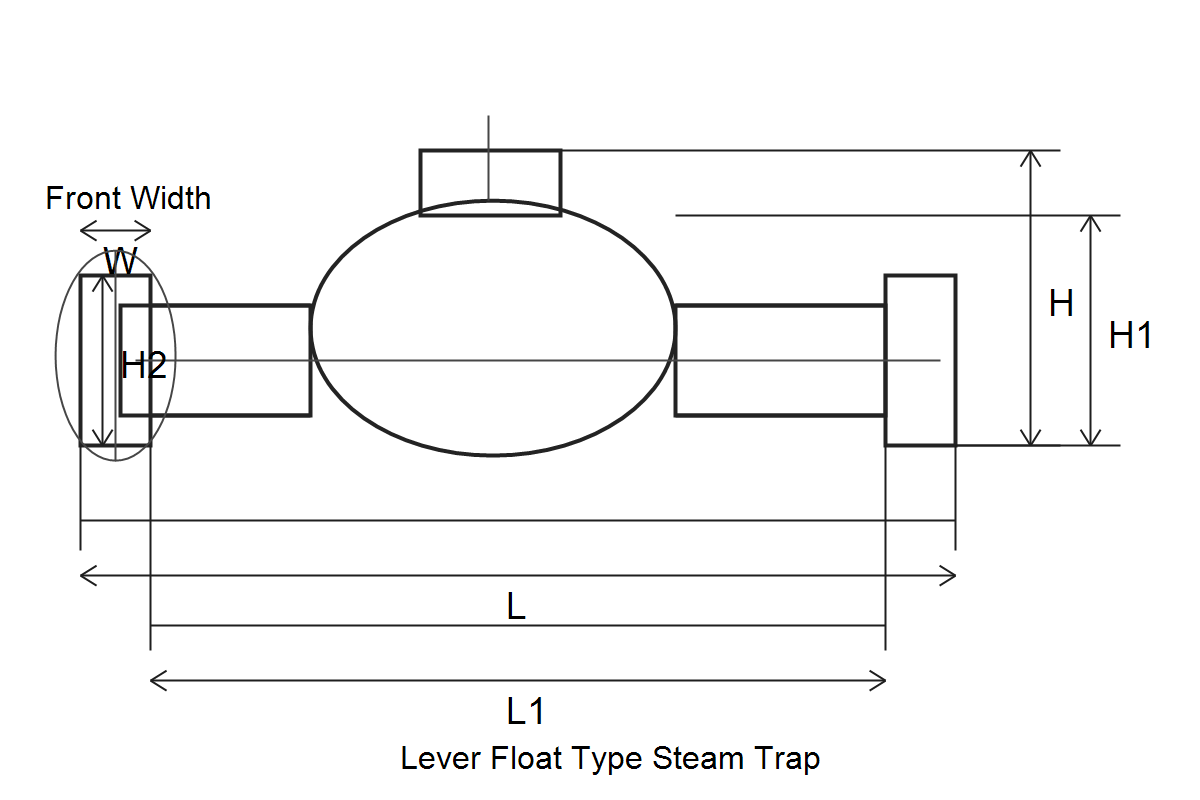

| Type | DN | Connection | Working Pressure (MPa) | Max. Temperature (C) | L (mm) | L1 (mm) | H (mm) | H1 (mm) | H2 (mm) | W (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| Type A | 20~50 | Flange | 0.01~1.6 | 300 | 435 | 260 | 85 | 215 | ||
| Type B | 50~100 | Flange | 0.01~1.6 | 300 | 570 | 260 | 85 | 215 | ||
| Type C Small | 25~32 | Flange | 0.01~2.1 | 425 | 425 | 260 | 85 | 215 | ||
| Type C Medium | 40 | Flange | 0.01~2.1 | 425 | 435 | 260 | 88 | 215 | ||
| Type C Large | 50 | Flange | 0.01~2.1 | 425 | 455 | 260 | 88 | 215 | ||
| Type D | 40~80 | Flange | 0.01~5.0 | 425 | 345 | 428 | 430 | 340 | 270 | |
| Type E | 50~100 | Flange | 0.01~2.1 | 425 | 570 | 317 | 117 | 270 | ||
| Type F | 25~50 | Flange | 0.01~1.0 / 0.01~2.0 | 425 | 270 | 310 | 235 | 95 | 80 | |
| Type G | 32~50 | Flange | 0.01~1.0 / 0.01~2.0 | 425 | 270 | 380 | 320 | 105 | 85 | |
| Type H | 65~80 | Flange | 0.01~1.0 / 0.01~2.0 | 425 | 350 | 440 | 345 | 125 | 90 | |
| Type I | 80~100 | Flange | 0.01~1.0 / 0.01~2.0 | 425 | 350 | 550 | 460 | 170 | 118 |
