Malleable Iron 180 Degree Cross Fig.180

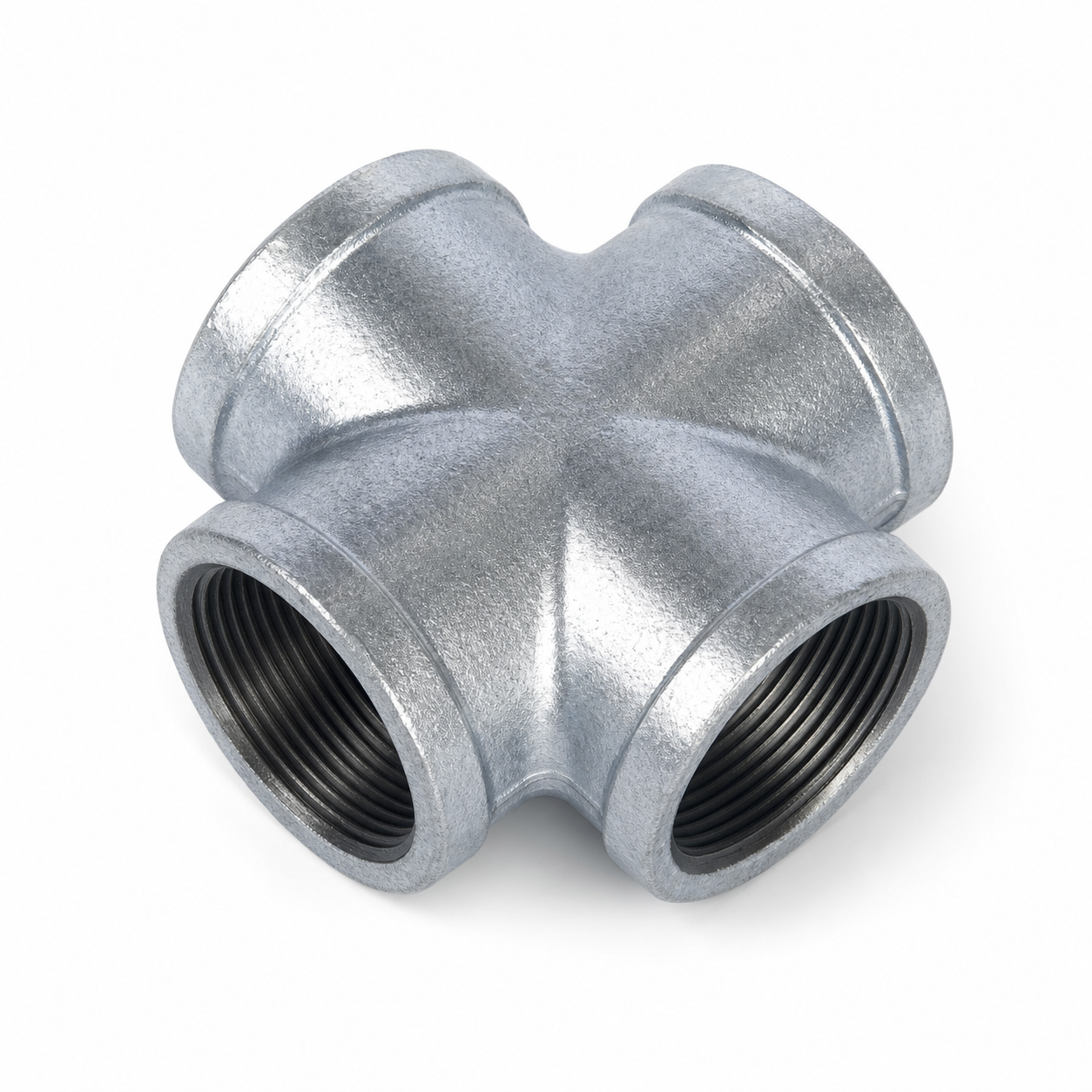

Galvanized malleable iron 180 degree cross fitting for threaded pipe branch connections. Fig.180 provides four female threaded openings for cross-line distribution.
Features
- 180 degree cross fitting with four female threaded outlets.
- Galvanized malleable iron construction for branch pipe layouts.
- Typed size, weight, and packing data for searchable product details.
Dimensions and Packing

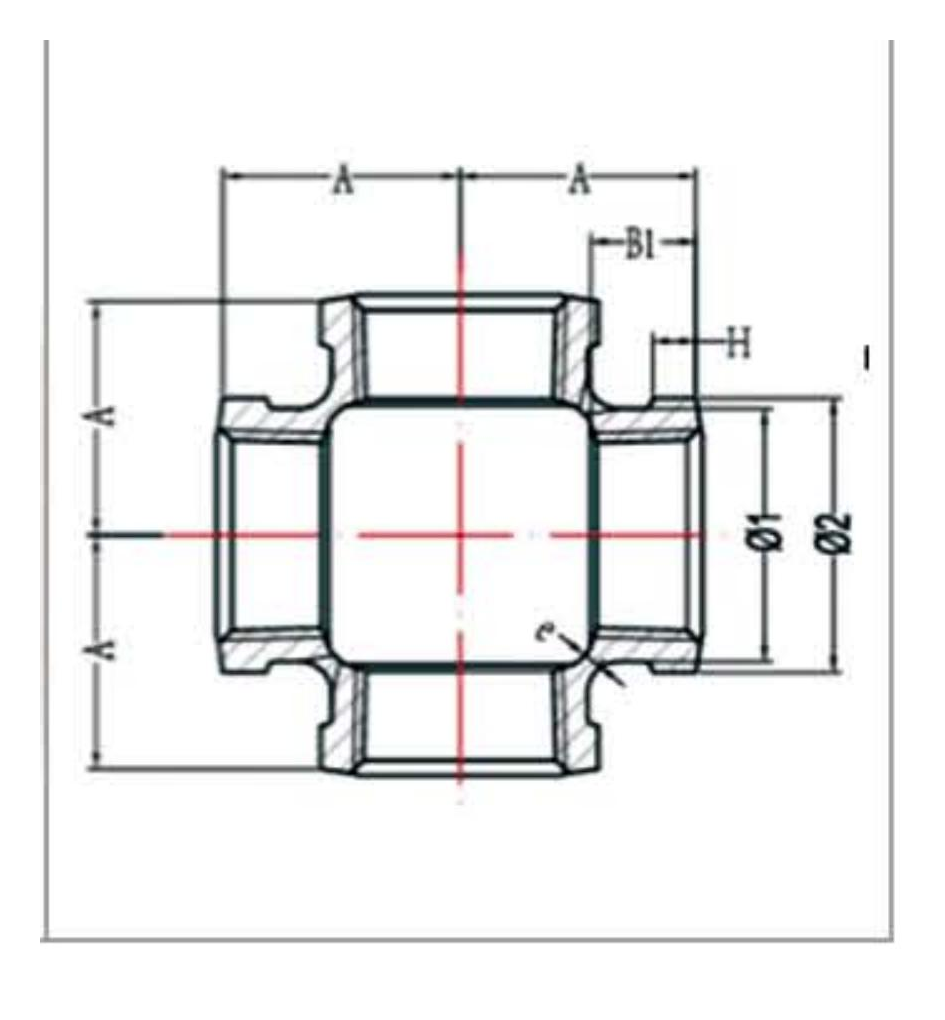

| Code | NPS | DN | A (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing Carton (pcs/ctn) |
|---|---|---|---|---|---|---|
| JZGAL18001 | 1/2 in. | 15 | 27 | 167 | 170 | 180 |
| JZGAL18002 | 3/4 in. | 20 | 32 | 246 | 251 | 96 |
| JZGAL18003 | 1 in. | 25 | 37 | 380 | 388 | 72 |
| JZGAL18004 | 1-1/4 in. | 32 | 44.5 | 576 | 588 | 36 |
| JZGAL18005 | 1-1/2 in. | 40 | 48.5 | 712 | 727 | 30 |
| JZGAL18006 | 2 in. | 50 | 57 | 1147 | 1170 | 12 |
| JZGAL18007 | 2-1/2 in. | 65 | 68.5 | 1740 | 1776 | 10 |
| JZGAL18008 | 3 in. | 80 | 77.5 | 2478 | 2529 | 6 |
| JZGAL18009 | 4 in. | 100 | 96.5 | 4211 | 4297 | 2 |
Standard Specification
Standard Specifications
- Material: EN1562 or ISO5922.
- Design and dimensions: EN10242 or ISO49.
- Threads: EN10226 or ISO7-1.
- Tensile strength: 350 MPa.
- Elongation: 10%.
- Zinc coating: 70 um.
- Working pressure: 363 PSI.
- Available size range: 1/8 in. to 6 in.
- Surface treatment: hot-dip galvanized, electrogalvanization, black.
Product Details
| Product Type | 180 degree cross for threaded multi-branch pipe connection |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, thread, length and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
