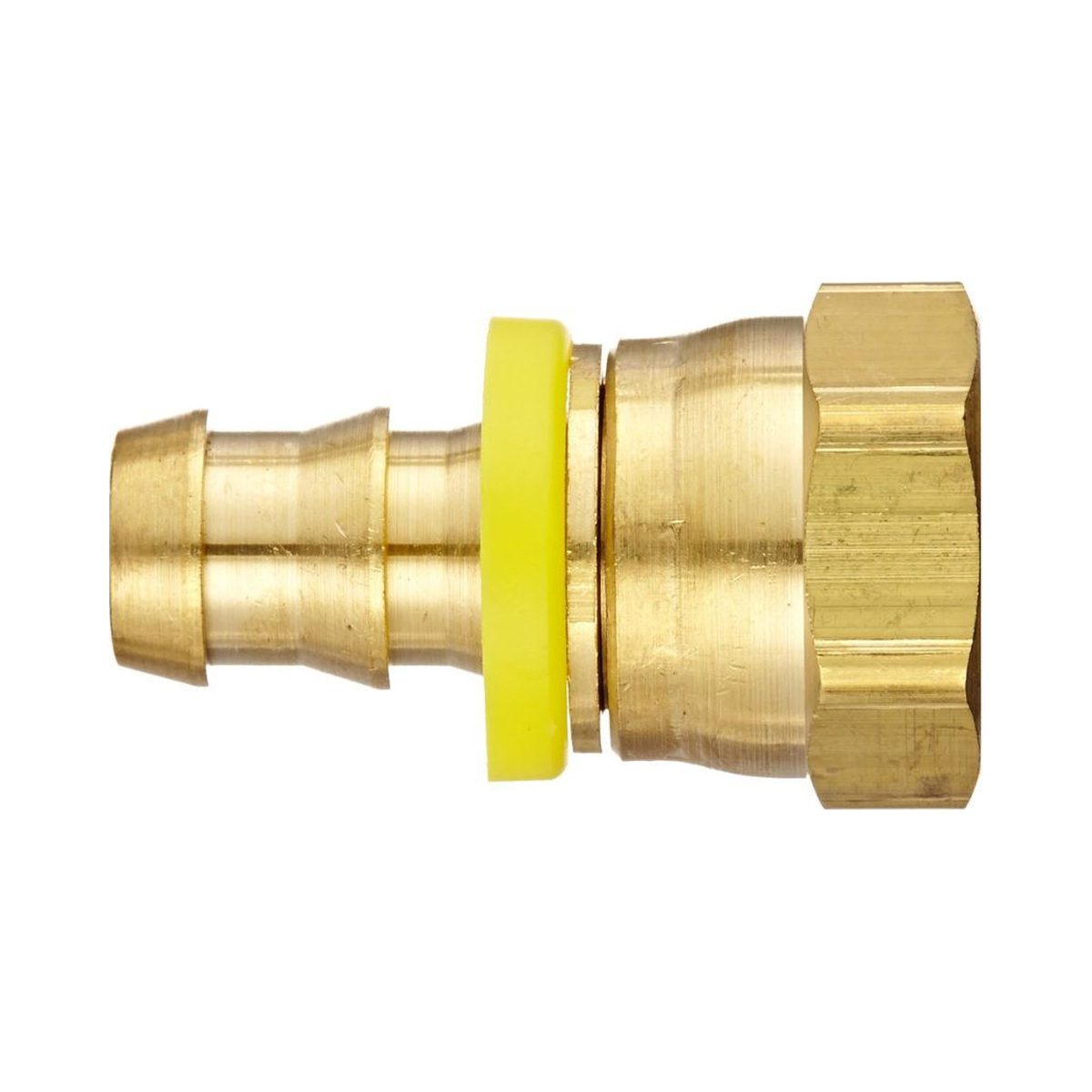

Brass Hose Barb x Female SAE 45 Degree
Brass hose barb x female SAE 45 degree fitting for hose-to-SAE threaded connections.
Applications and Features
| Item | Details |
|---|---|
| Connection | Hose barb x Female SAE 45 degree |
| Application | Connects flexible hose to male SAE 45 degree flare fittings in fuel, air, water, and general hose assemblies. |
| Feature | Barbed brass hose end with female SAE 45 degree thread for compact hose-to-flare transitions. |
Specifications
| Part Number | Hose ID | Female Thread |
|---|---|---|
| D128-4×4 | 1/4 in | 7/16-20 |
| D128-4×6 | 1/4 in | 5/8-18 |
| D128-6×6 | 3/8 in | 5/8-18 |
| D128-8×8 | 1/2 in | 3/4-16 |
