Malleable Iron 45 Degree M&F Long Bend Fig.40

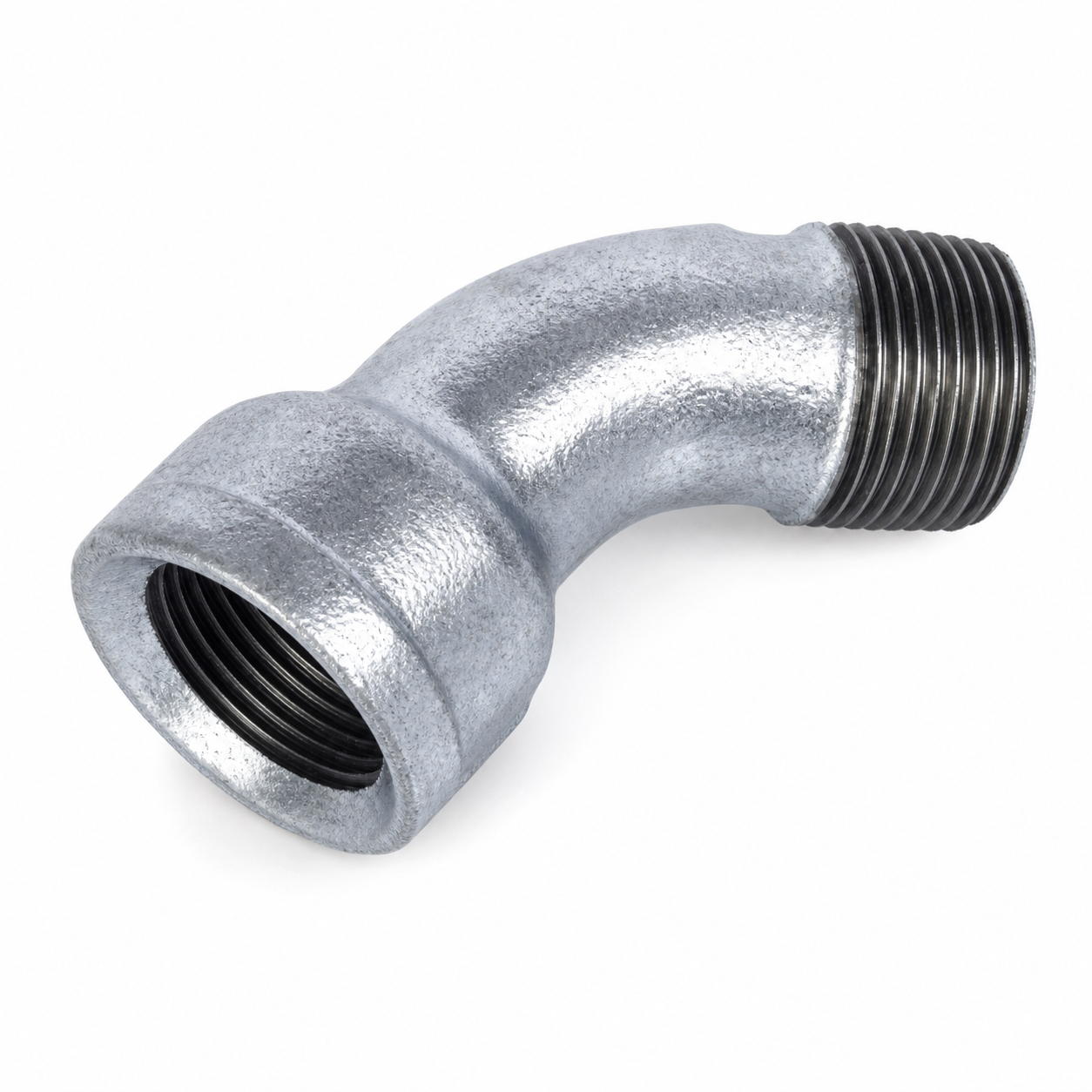

Fig.40 is a galvanized malleable iron 45 degree male and female long bend fitting for threaded pipe systems. It is used where a smooth angled change of direction is required with one male threaded end and one female threaded socket.
Key Features
- 45 degree male and female long bend configuration.
- Galvanized malleable iron body with threaded connection.
- Suitable for industrial, water, gas, and general pipe fitting applications.
- Available in sizes from 1/2 in. to 4 in.
Standard Specifications
- Material: EN1562 or ISO5922.
- Design and dimensions: EN10242 or ISO49.
- Threads: EN10226 or ISO7-1.
- Tensile strength: 350 MPa.
- Elongation: 10%.
- Zinc coating: 70 um.
- Working pressure: 363 PSI.
- Available size range: 1/8 in. to 6 in.
- Surface treatment: hot-dip galvanized, electrogalvanization, black.
Dimensions and Packing

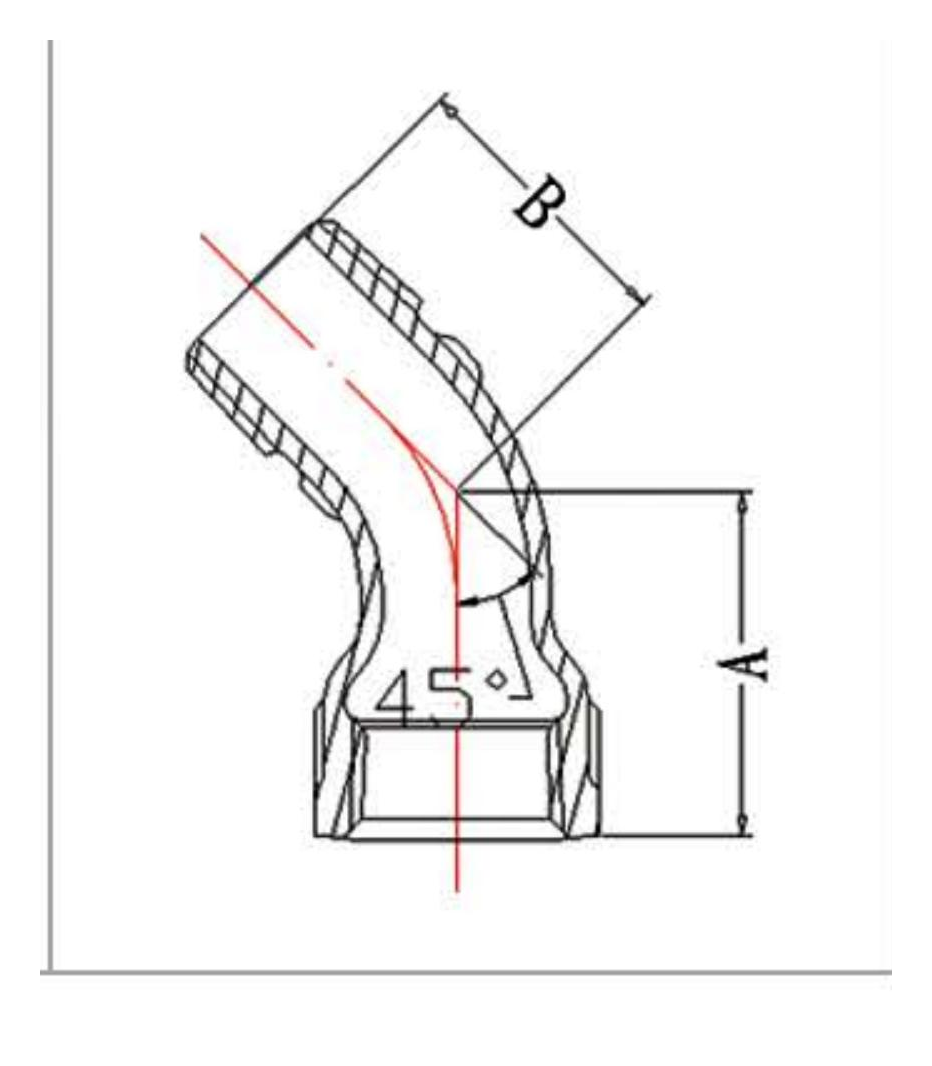

| Code | NPS | DN | A (mm) | B (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing Carton (pcs/ctn) |
|---|---|---|---|---|---|---|---|
| JZGAL4001 | 1/2 in. | 15 | 36 | 30 | 87 | 88 | 180 |
| JZGAL4002 | 3/4 in. | 20 | 43 | 36 | 88 | 144 | 160 |
| JZGAL4003 | 1 in. | 25 | 51 | 42 | 89 | 224 | 80 |
| JZGAL4004 | 1-1/4 in. | 32 | 64 | 54 | 90 | 362 | 50 |
| JZGAL4005 | 1-1/2 in. | 40 | 68 | 58 | 91 | 450 | 24 |
| JZGAL4006 | 2 in. | 50 | 81 | 70 | 92 | 752 | 12 |
| JZGAL4007 | 2-1/2 in. | 65 | 99 | 86 | 93 | 1344 | 8 |
| JZGAL4008 | 3 in. | 80 | 113 | 100 | 94 | 1963 | 6 |
| JZGAL4009 | 4 in. | 100 | 143 | 126 | 2 |
Product Details
| Product Type | 45 degree male and female long bend for smooth threaded pipe direction changes |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, thread, length and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
