Malleable Iron 90 Degree Reducing Elbow Fig.90R

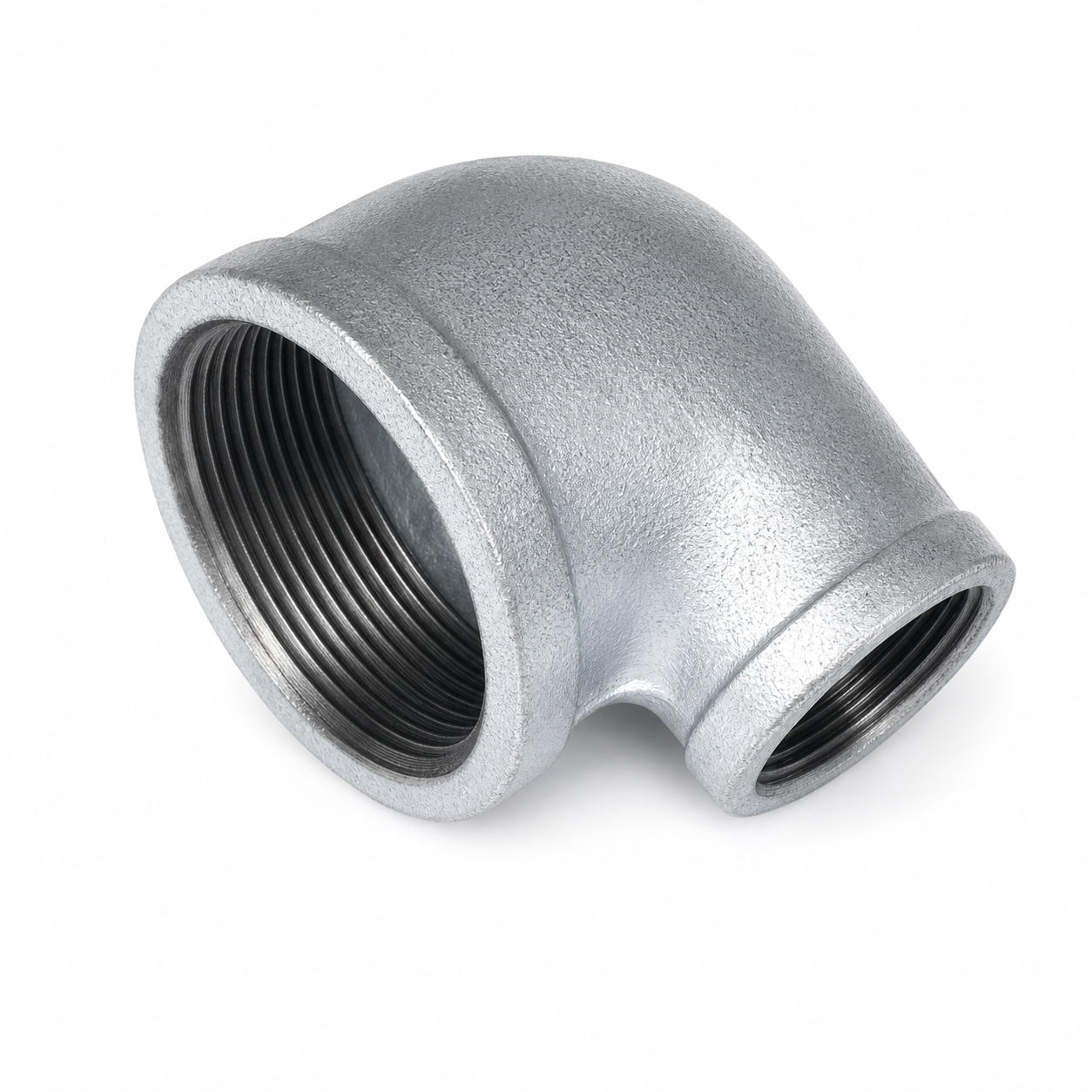

Fig.90R is a galvanized malleable iron 90 degree reducing elbow with female threaded connections. It is used to change pipe direction while connecting two different pipe sizes.
Key Features
- 90 degree reducing elbow design for size transitions.
- Female threaded connections on both ends.
- Galvanized malleable iron construction for threaded pipe systems.
- Available in reducing sizes from 1/2 in. x 3/8 in. to 4 in. x 3 in.
Standard Specifications
- Material: EN1562 or ISO5922.
- Design and dimensions: EN10242 or ISO49.
- Threads: EN10226 or ISO7-1.
- Tensile strength: 350 MPa.
- Elongation: 10%.
- Zinc coating: 70 um.
- Working pressure: 363 PSI.
- Available size range: 1/8 in. to 6 in.
- Surface treatment: hot-dip galvanized, electrogalvanization, black.
Dimensions and Packing

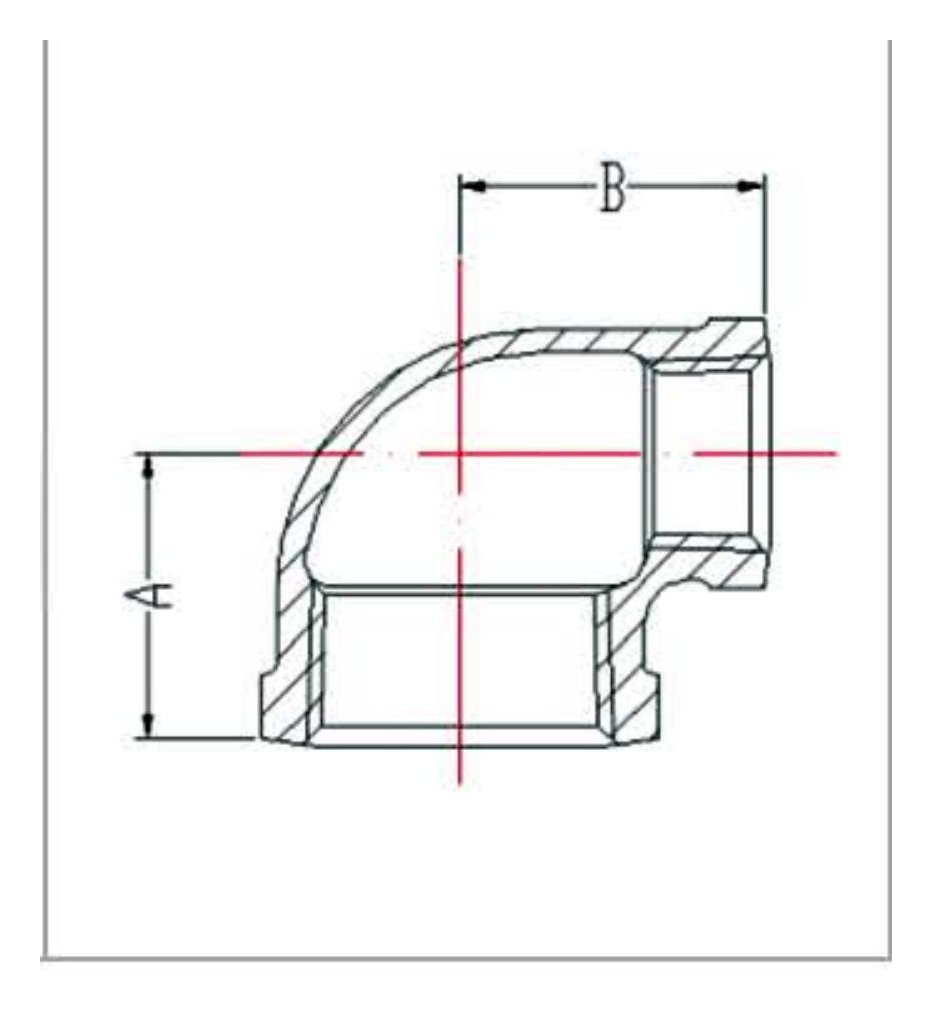

| Code | NPS | DN | A (mm) | B (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing Carton (pcs/ctn) |
|---|---|---|---|---|---|---|---|
| JZGAL90R01 | 1/2 in. x 3/8 in. | 15 x 10 | 25 | 25 | 74.48 | 76 | 270 |
| JZGAL90R02 | 3/4 in. x 1/2 in. | 20 x 15 | 29 | 30 | 122.5 | 125 | 270 |
| JZGAL90R03 | 1 in. x 3/8 in. | 25 x 10 | 29 | 31 | 143.08 | 146 | 160 |
| JZGAL90R04 | 1 in. x 1/2 in. | 25 x 15 | 31 | 33 | 161.7 | 165 | 160 |
| JZGAL90R05 | 1 in. x 3/4 in. | 25 x 20 | 34 | 35 | 184.24 | 188 | 160 |
| JZGAL90R06 | 1-1/4 in. x 3/8 in. | 32 x 10 | 31 | 36 | 213.64 | 218 | 100 |
| JZGAL90R07 | 1-1/4 in. x 1/2 in. | 32 x 15 | 34 | 37 | 227.36 | 232 | 100 |
| JZGAL90R08 | 1-1/4 in. x 3/4 in. | 32 x 20 | 36 | 40 | 252.84 | 258 | 100 |
| JZGAL90R09 | 1-1/4 in. x 1 in. | 32 x 25 | 40 | 41 | 285.18 | 291 | 90 |
| JZGAL90R10 | 1-1/2 in. x 1/2 in. | 40 x 15 | 35 | 41 | 266.56 | 272 | 90 |
| JZGAL90R11 | 1-1/2 in. x 3/4 in. | 40 x 20 | 37 | 43 | 302.82 | 309 | 90 |
| JZGAL90R12 | 1-1/2 in. x 1 in. | 40 x 25 | 41 | 45 | 342.02 | 349 | 70 |
| JZGAL90R13 | 1-1/2 in. x 1-1/4 in. | 40 x 32 | 45 | 47 | 400.82 | 409 | 56 |
| JZGAL90R14 | 2 in. x 1/2 in. | 50 x 15 | 37 | 47 | 398.86 | 407 | 68 |
| JZGAL90R15 | 2 in. x 3/4 in. | 50 x 20 | 40 | 49 | 423.36 | 432 | 52 |
| JZGAL90R16 | 2 in. x 1 in. | 50 x 25 | 43 | 51 | 476.28 | 486 | 50 |
| JZGAL90R17 | 2 in. x 1-1/4 in. | 50 x 32 | 47 | 53 | 552.72 | 564 | 40 |
| JZGAL90R18 | 2 in. x 1-1/2 in. | 50 x 40 | 51 | 54 | 588 | 600 | 30 |
| JZGAL90R19 | 2-1/2 in. x 1/2 in. | 65 x 15 | 40.5 | 56 | 579.18 | 591 | 46 |
| JZGAL90R20 | 2-1/2 in. x 3/4 in. | 65 x 20 | 43.5 | 57 | 613.48 | 626 | 40 |
| JZGAL90R21 | 2-1/2 in. x 1 in. | 65 x 25 | 47.5 | 59 | 686 | 700 | 34 |
| JZGAL90R22 | 2-1/2 in. x 1-1/4 in. | 65 x 32 | 51.5 | 61 | 732.06 | 747 | 30 |
| JZGAL90R23 | 2-1/2 in. x 1-1/2 in. | 65 x 40 | 54.5 | 61 | 772.24 | 788 | 26 |
| JZGAL90R24 | 2-1/2 in. x 2 in. | 65 x 50 | 59.5 | 64 | 904.54 | 923 | 24 |
| JZGAL90R25 | 3 in. x 1/2 in. | 80 x 15 | 42.5 | 64 | 735.98 | 751 | 36 |
| JZGAL90R26 | 3 in. x 3/4 in. | 80 x 20 | 45.5 | 65 | 770.28 | 786 | 30 |
| JZGAL90R27 | 3 in. x 1 in. | 80 x 25 | 49.5 | 67 | 830.06 | 847 | 20 |
| JZGAL90R28 | 3 in. x 1-1/4 in. | 80 x 32 | 54.5 | 69 | 931.98 | 951 | 20 |
| JZGAL90R29 | 3 in. x 1-1/2 in. | 80 x 40 | 57.5 | 71 | 952.56 | 972 | 20 |
| JZGAL90R30 | 3 in. x 2 in. | 80 x 50 | 61.5 | 71 | 1166.2 | 1190 | 12 |
| JZGAL90R31 | 3 in. x 2-1/2 in. | 80 x 65 | 71.5 | 74 | 1319.08 | 1346 | 12 |
| JZGAL90R32 | 4 in. x 1/2 in. | 100 x 15 | 49.5 | 78 | 1311.24 | 1338 | 14 |
| JZGAL90R33 | 4 in. x 3/4 in. | 100 x 20 | 53.5 | 79 | 1326.92 | 1354 | 14 |
| JZGAL90R34 | 4 in. x 1 in. | 100 x 25 | 56.5 | 82 | 1405.32 | 1434 | 14 |
| JZGAL90R35 | 4 in. x 1-1/4 in. | 100 x 32 | 60.5 | 85 | 1550.36 | 1582 | 14 |
| JZGAL90R36 | 4 in. x 1-1/2 in. | 100 x 40 | 62.5 | 85 | 1621.9 | 1655 | 10 |
| JZGAL90R37 | 4 in. x 2 in. | 100 x 50 | 68.5 | 86 | 1711.08 | 1746 | 10 |
| JZGAL90R38 | 4 in. x 2-1/2 in. | 100 x 65 | 77.5 | 89 | 1957.06 | 1997 | 8 |
| JZGAL90R39 | 4 in. x 3 in. | 100 x 80 | 82.5 | 90 | 2164.82 | 2209 | 8 |
Product Details
| Product Type | 90 degree reducing elbow for threaded pipe direction and size transition |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, thread, length and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
