Malleable Iron Banded Side Outlet Elbow Fig.1221

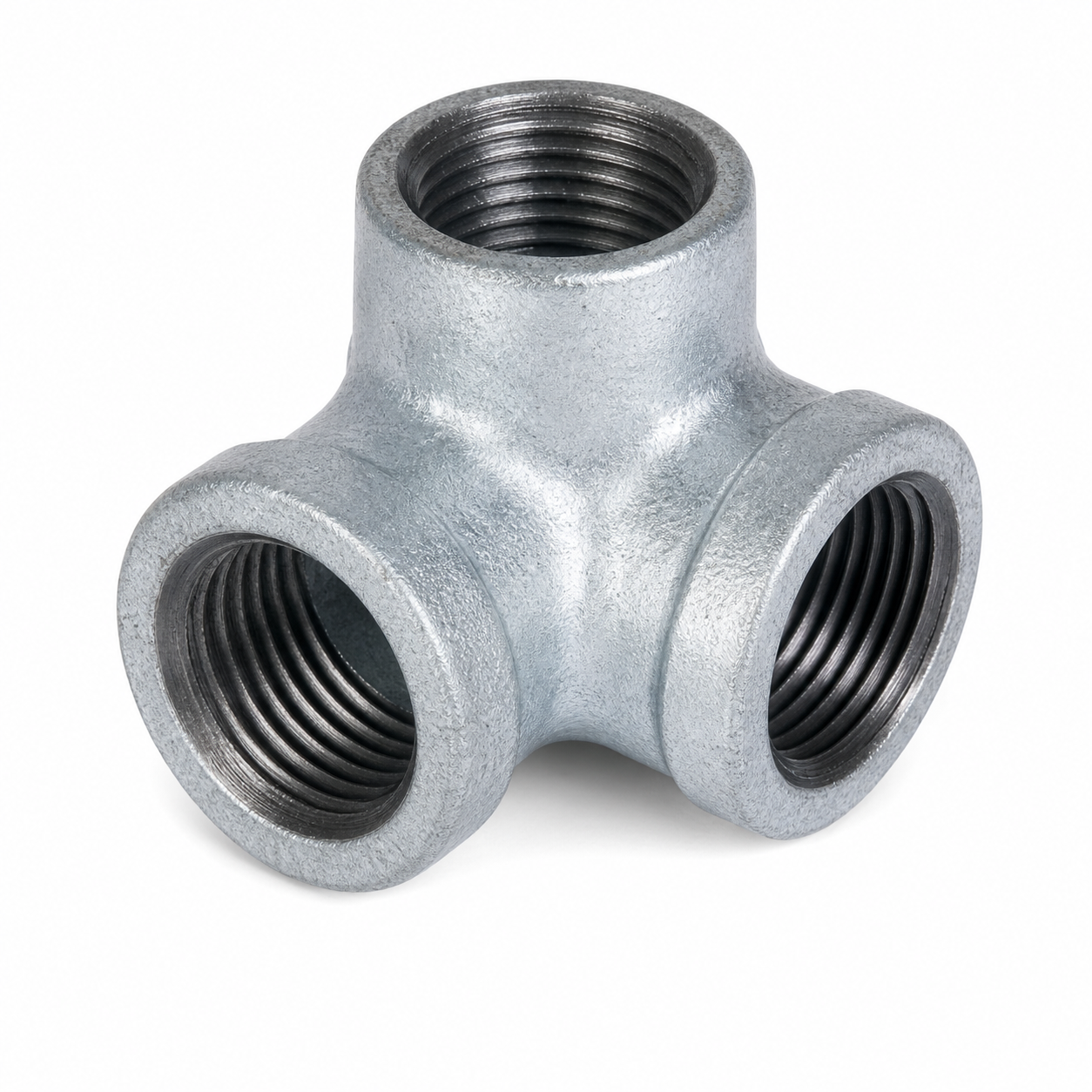

Galvanized malleable iron banded side outlet elbow with three female threaded openings.
Product Features
- Material: malleable iron
- Finish: black or galvanized
- Connection: female threaded outlets
- Body style: banded side outlet elbow
- Catalog reference: Fig.1221
Dimensions and Packing
| Code | NPS | DN | A (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing Carton (pcs/ctn) |
|---|---|---|---|---|---|---|
| JZGAL122101 | 1/2 in. | 15 | 27 | 125.4 | 128 | 240 |
| JZGAL122102 | 3/4 in. | 20 | 32 | 196.0 | 200 | 140 |
| JZGAL122103 | 1 in. | 25 | 37 | 300.9 | 307 | 90 |
Standard Specification
- Material: malleable iron according to EN1562 / ISO5922.
- Dimensions: EN10242 / ISO49.
- Threads: EN10226 / ISO7-1.
- Minimum tensile strength: 350 MPa.
- Surface finish: black or hot-dip galvanized; galvanized zinc coating thickness approximately 70 um.
- Recommended working pressure: 363 PSI.
Product Details
| Product Type | Banded side outlet elbow for threaded branch pipe connection |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, length, thread and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
