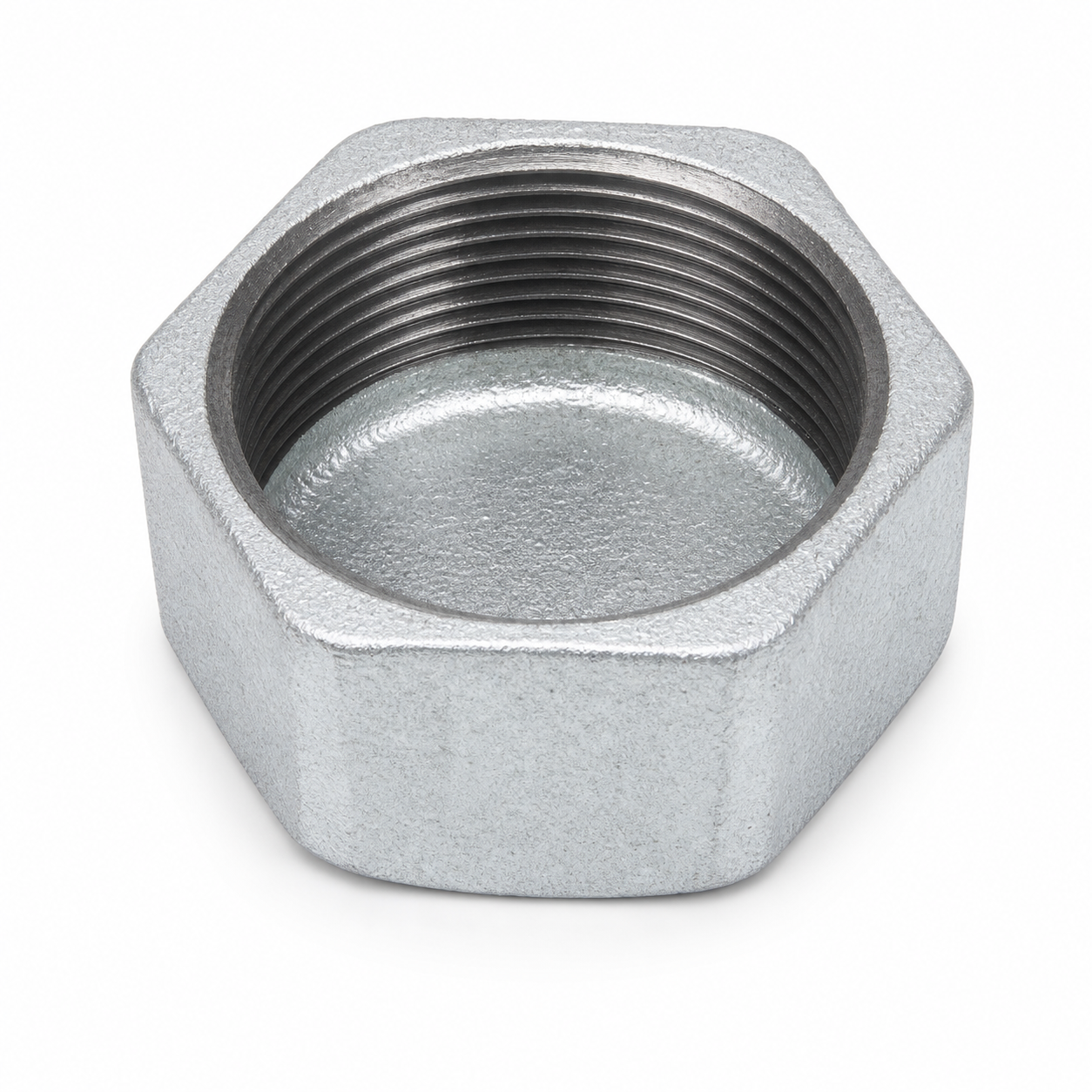

Malleable Iron Hex Cap Fig.300
Galvanized malleable iron hex cap with internal female thread for closing male-threaded pipe ends.
Product Features
- Material: malleable iron
- Finish: black or galvanized
- Connection: female threaded cap
- Body style: hexagonal cap
- Catalog reference: Fig.300

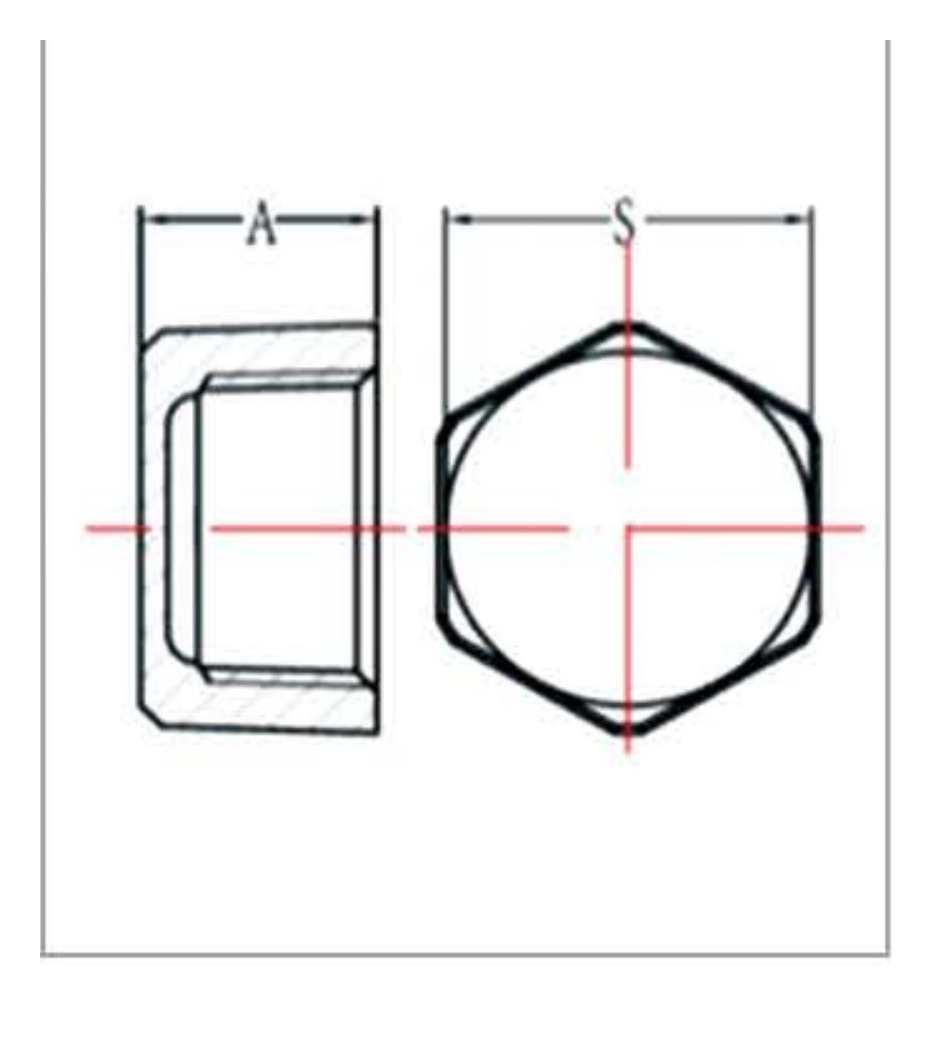

Dimensions and Packing
| Code | NPS | DN | A (mm) | S (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing Carton (pcs/ctn) |
|---|---|---|---|---|---|---|---|
| JZGAL30001 | 3/8 in. | 10 | 17 | 20.6 | 29.4 | 30 | 1200 |
| JZGAL30002 | 1/2 in. | 15 | 19 | 24.6 | 44.1 | 45 | 700 |
| JZGAL30003 | 3/4 in. | 20 | 22 | 30.4 | 68.6 | 70 | 500 |
| JZGAL30004 | 1 in. | 25 | 24 | 37.2 | 106.82 | 109 | 360 |
| JZGAL30005 | 1-1/4 in. | 32 | 27 | 47 | 180.32 | 184 | 220 |
| JZGAL30006 | 1-1/2 in. | 40 | 28 | 53 | 223.44 | 228 | 160 |
| JZGAL30007 | 2 in. | 50 | 32 | 65 | 349.86 | 357 | 100 |
Product Details
| Product Type | Hex cap for closing threaded pipe ends |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, length, thread and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
