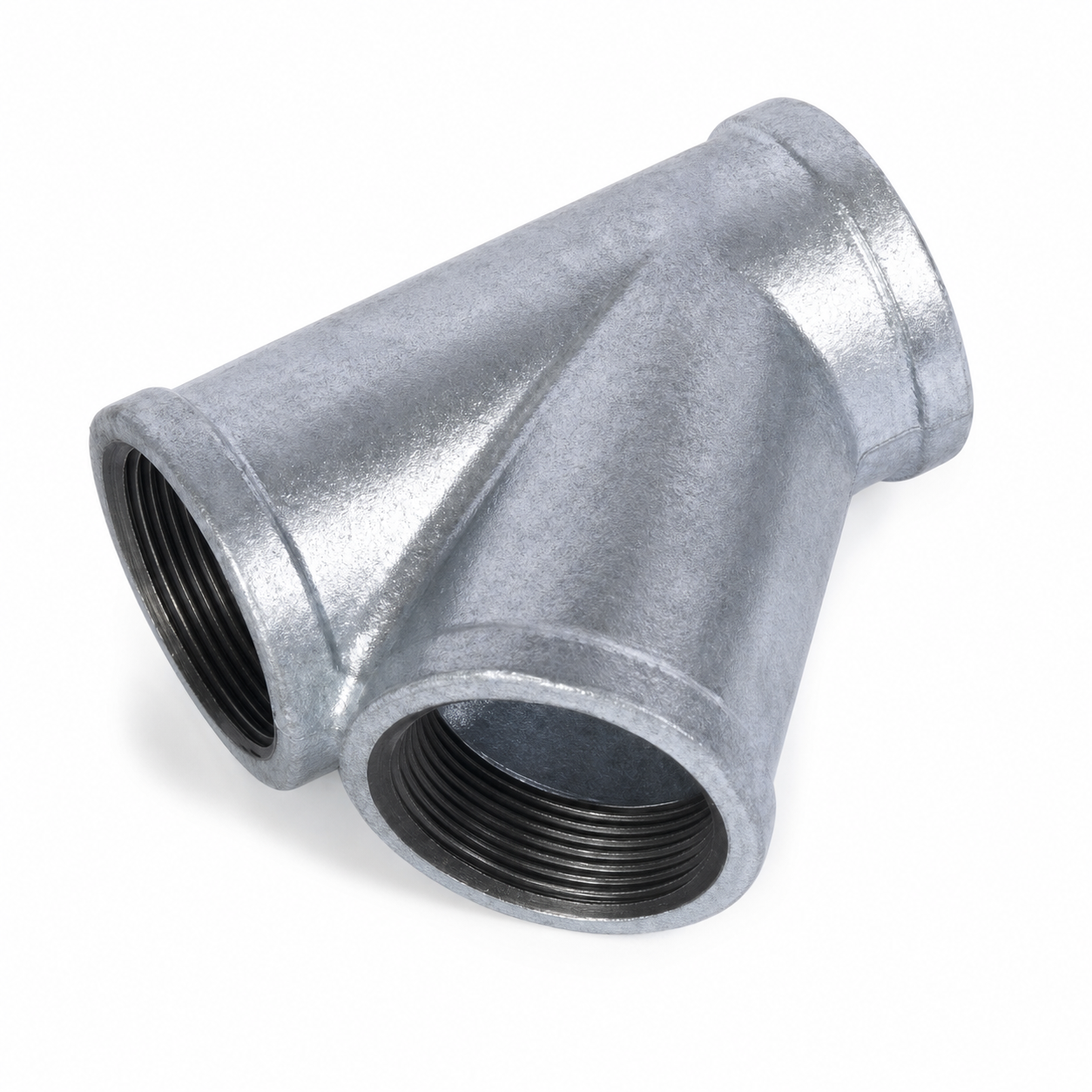

Malleable Iron Lateral Y Branch Tee 45 Fig.165
Galvanized malleable iron lateral Y branch tee with a 45 degree branch for threaded pipe layouts. Fig.165 is used where a branch connection is required at an angled flow direction.
Features
- 45 degree lateral Y branch tee for threaded pipe systems.
- Female threaded openings with galvanized malleable iron construction.

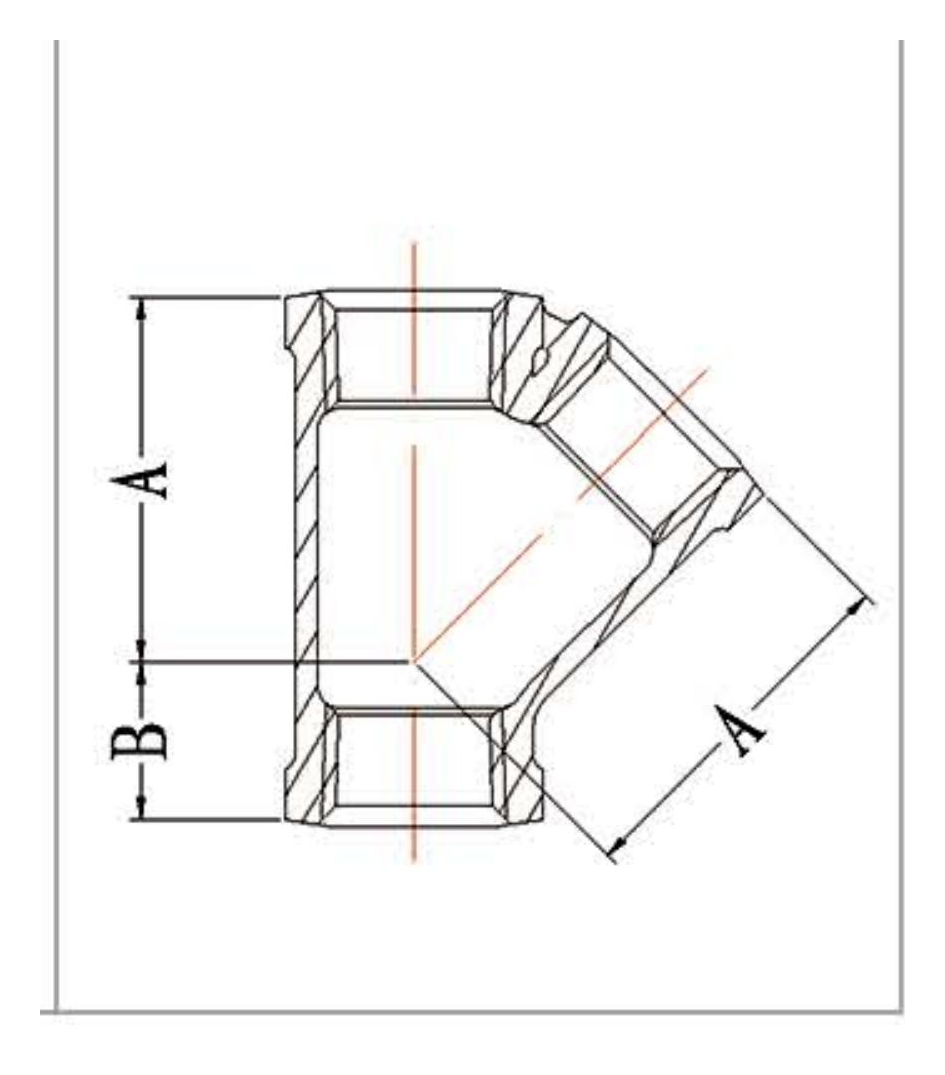

- Typed dimensions include A and B reference measurements from the catalog.
Dimensions and Packing
| Code | NPS | DN | A (mm) | B (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing Carton (pcs/ctn) |
|---|---|---|---|---|---|---|---|
| JZGAL16501 | 1/2 in. | 15 | 42 | 18 | 161.7 | 165 | 240 |
| JZGAL16502 | 3/4 in. | 20 | 51.5 | 18.5 | 244.02 | 249 | 100 |
| JZGAL16503 | 1 in. | 25 | 62 | 23 | 375.34 | 383 | 80 |
| JZGAL16504 | 1-1/4 in. | 32 | 75 | 28 | 595.84 | 608 | 40 |
| JZGAL16505 | 1-1/2 in. | 40 | 82 | 30 | 743.82 | 759 | 30 |
| JZGAL16506 | 2 in. | 50 | 100.5 | 32.5 | 1189.72 | 1214 | 16 |
| JZGAL16507 | 2-1/2 in. | 65 | 125 | 39 | 1935.5 | 1975 | 10 |
| JZGAL16508 | 3 in. | 80 | 140 | 45 | 2651.88 | 2706 | 8 |
| JZGAL16509 | 4 in. | 100 | 180 | 55 | 4817.68 | 4916 | 2 |
Standard Specification
Standard Specifications
- Material: EN1562 or ISO5922.
- Design and dimensions: EN10242 or ISO49.
- Threads: EN10226 or ISO7-1.
- Tensile strength: 350 MPa.
- Elongation: 10%.
- Zinc coating: 70 um.
- Working pressure: 363 PSI.
- Available size range: 1/8 in. to 6 in.
- Surface treatment: hot-dip galvanized, electrogalvanization, black.
Product Details
| Product Type | 45 degree lateral Y branch tee for threaded branch pipe installations |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, thread, length and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
