Malleable Iron Reducing Nipple Fig.245

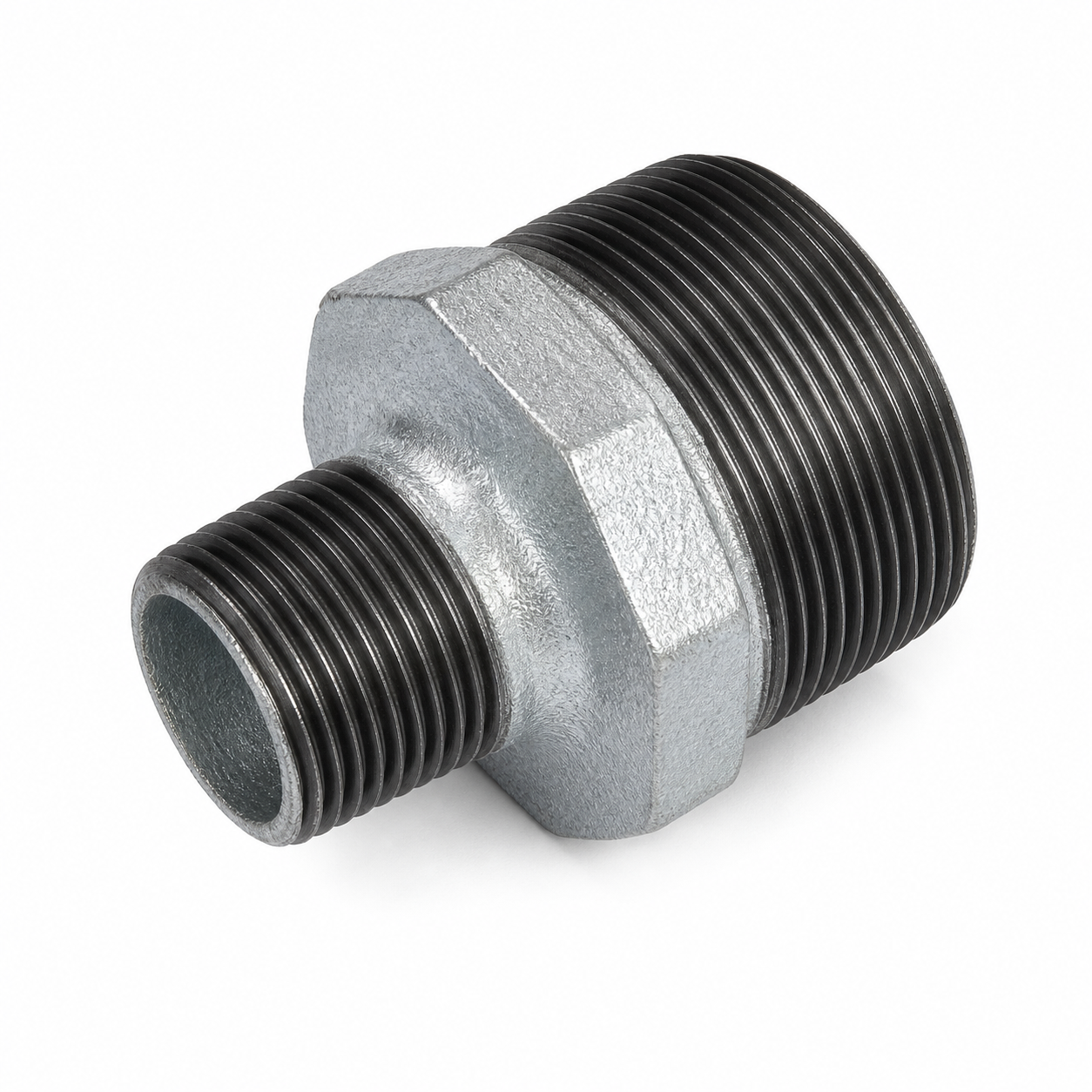

Galvanized malleable iron reducing nipple with different male-threaded sizes on each end and a center hex section for installation.
Product Features
- Material: malleable iron
- Finish: black or galvanized
- Connection: reducing male thread x male thread
- Application: water, gas, fire protection, plumbing, and general piping systems
- Catalog reference: Fig.245

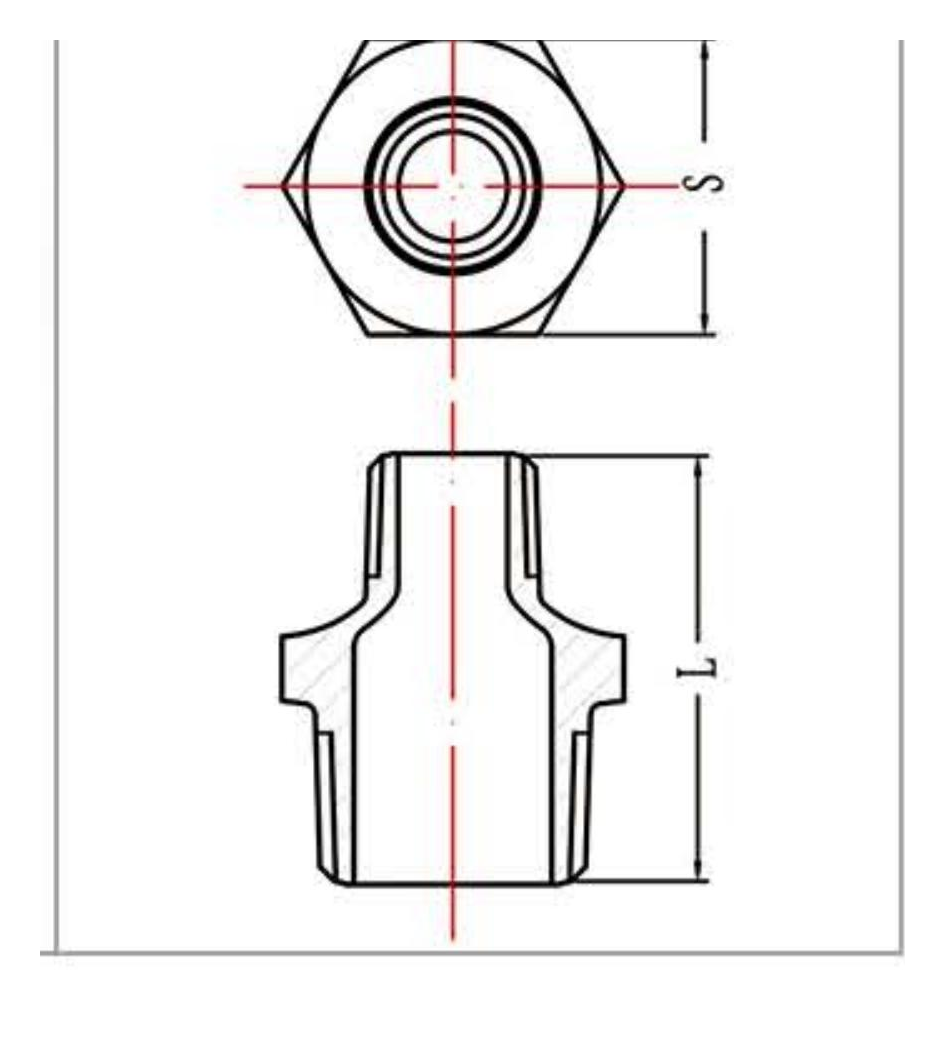

Dimensions and Packing
| Code | NPS | DN | L (mm) | S (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing Carton (pcs/ctn) |
|---|---|---|---|---|---|---|---|
| JZGAL24501 | 1/2 in. x 1/4 in. | 15 x 8 | 44 | 22 | 47.04 | 48 | 600 |
| JZGAL24502 | 1/2 in. x 3/8 in. | 15 x 10 | 44 | 24.4 | 59.78 | 61 | 600 |
| JZGAL24503 | 3/4 in. x 1/2 in. | 20 x 15 | 47 | 29.9 | 91.14 | 93 | 400 |
| JZGAL24504 | 1 in. x 1/2 in. | 25 x 15 | 53 | 36.8 | 115.64 | 118 | 260 |
| JZGAL24505 | 1 in. x 3/4 in. | 25 x 20 | 53 | 36.8 | 137.2 | 140 | 240 |
| JZGAL24506 | 1-1/4 in. x 1/2 in. | 32 x 15 | 57 | 45.6 | 177.38 | 181 | 160 |
| JZGAL24507 | 1-1/4 in. x 3/4 in. | 32 x 20 | 57 | 45.6 | 181.3 | 185 | 140 |
| JZGAL24508 | 1-1/4 in. x 1 in. | 32 x 25 | 57 | 45.6 | 192.08 | 196 | 140 |
| JZGAL24509 | 1-1/2 in. x 1/2 in. | 40 x 15 | 59 | 50.5 | 202.86 | 207 | 130 |
| JZGAL24510 | 1-1/2 in. x 3/4 in. | 40 x 20 | 59 | 50.5 | 207.76 | 212 | 130 |
| JZGAL24511 | 1-1/2 in. x 1 in. | 40 x 25 | 59 | 50.5 | 225.4 | 230 | 120 |
| JZGAL24512 | 1-1/2 in. x 1-1/4 in. | 40 x 32 | 59 | 50.5 | 235.2 | 240 | 100 |
| JZGAL24513 | 2 in. x 1/2 in. | 50 x 15 | 68 | 63.5 | 323.4 | 330 | 75 |
| JZGAL24514 | 2 in. x 3/4 in. | 50 x 20 | 68 | 63.5 | 334.18 | 341 | 72 |
| JZGAL24515 | 2 in. x 1 in. | 50 x 25 | 68 | 63.5 | 343 | 350 | 72 |
| JZGAL24516 | 2 in. x 1-1/4 in. | 50 x 32 | 68 | 63.5 | 352.8 | 360 | 72 |
| JZGAL24517 | 2 in. x 1-1/2 in. | 50 x 40 | 68 | 63.5 | 366.52 | 374 | 60 |
| JZGAL24518 | 2-1/2 in. x 2 in. | 65 x 50 | 73 | 79.4 | / | / | / |
| JZGAL24519 | 3 in. x 2 in. | 80 x 50 | 81 | 91.6 | 749.7 | 765 | 24 |
| JZGAL24520 | 3 in. x 2-1/2 in. | 80 x 65 | 81 | 91.6 | / | / | / |
| JZGAL24521 | 4 in. x 2 in. | 100 x 50 | 95 | 117 | / | / | / |
| JZGAL24522 | 4 in. x 2-1/2 in. | 100 x 65 | 95 | 117 | / | / | / |
| JZGAL24523 | 4 in. x 3 in. | 100 x 80 | 95 | 117 | / | / | / |
Product Details
| Product Type | Reducing nipple for joining threaded pipe sections of different sizes |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, thread, length and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
