Malleable Iron Entire Thread Socket Fig.270

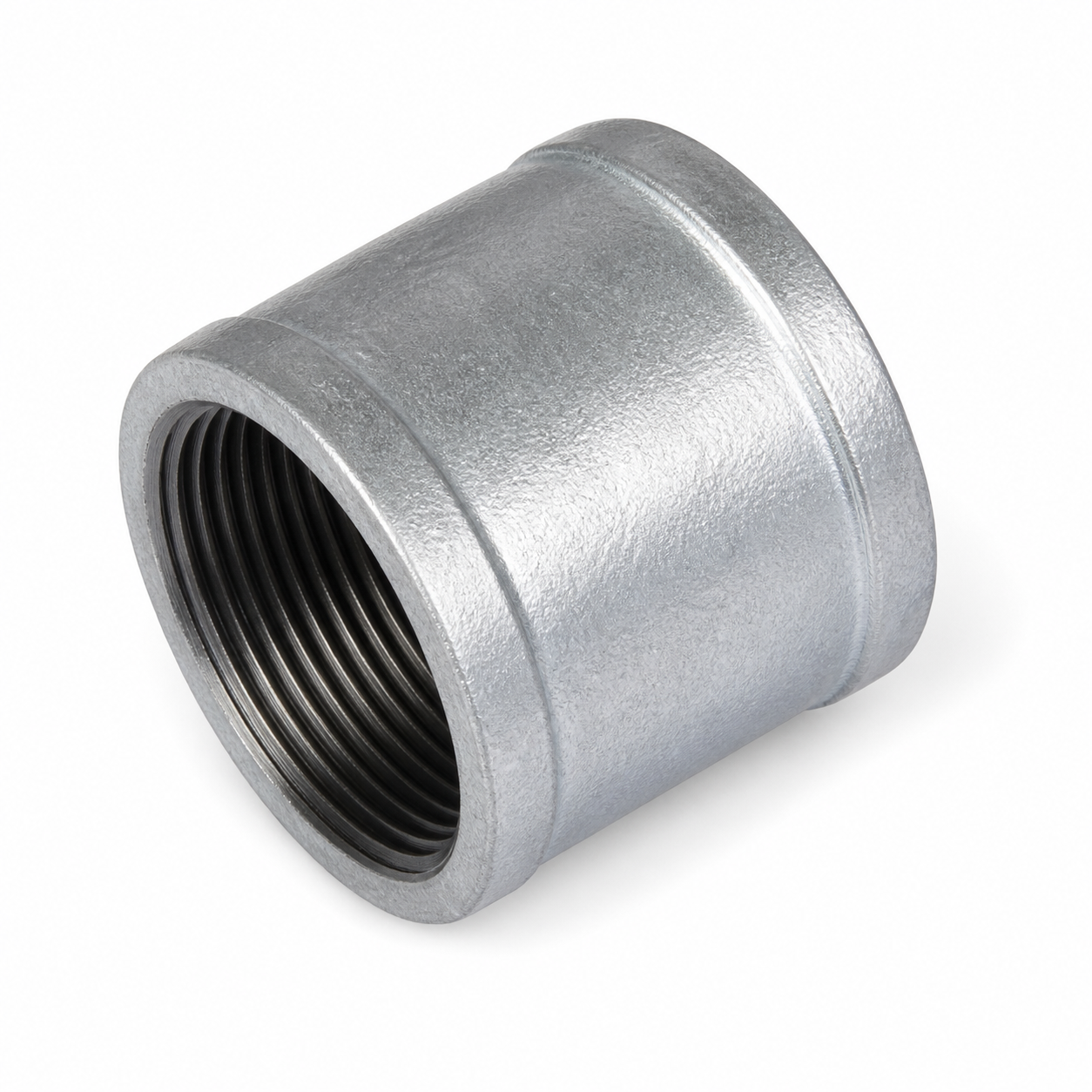

Galvanized malleable iron entire thread socket for connecting threaded pipe sections. Fig.270 provides full internal thread socket construction.
Features
- Entire thread socket for threaded pipe joining.
- Female full internal thread with galvanized malleable iron construction.
- Typed A dimension, weight, and carton data from the catalog.
Dimensions and Packing

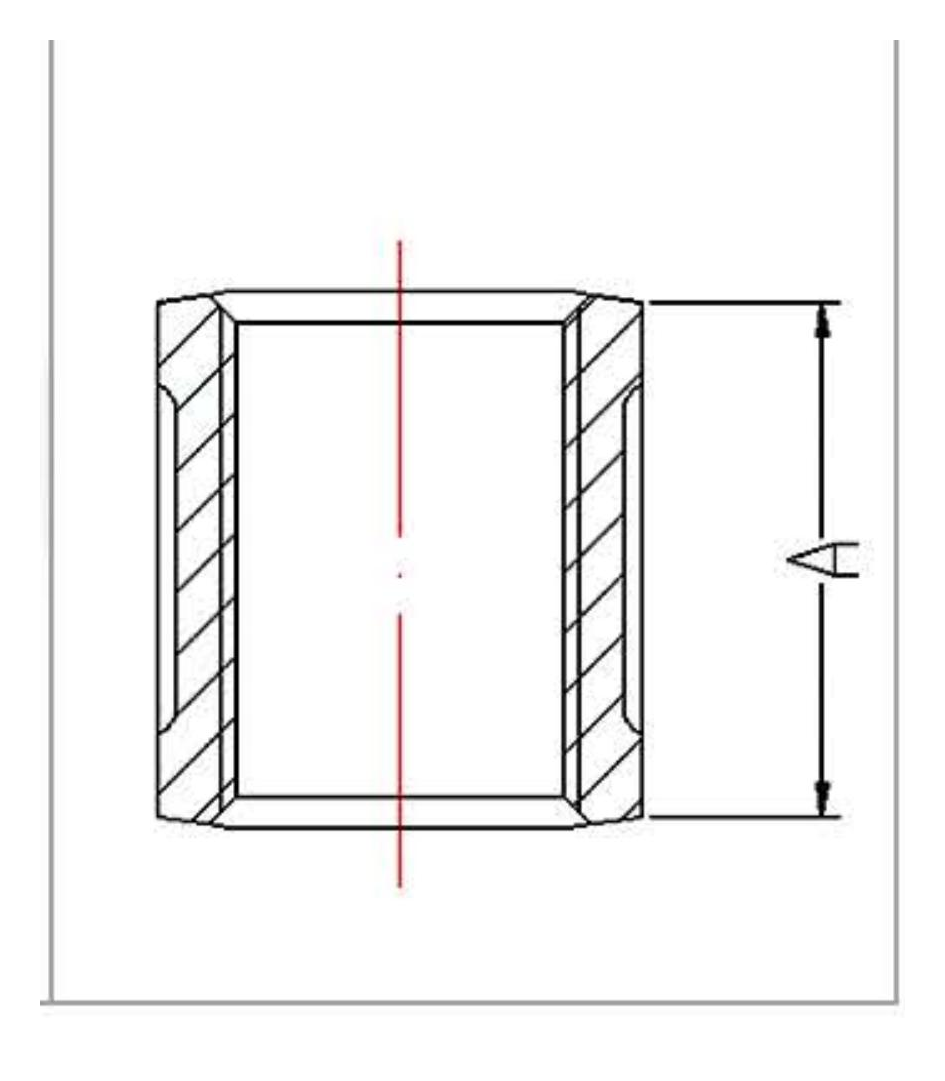

| Code | NPS | DN | A (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing Carton (pcs/ctn) |
|---|---|---|---|---|---|---|
| JZGAL27001 | 1/4 in. | 8 | 26 | 38.22 | 39 | 800 |
| JZGAL27002 | 3/8 in. | 10 | 29 | 48.02 | 49 | 700 |
| JZGAL27003 | 1/2 in. | 15 | 35 | 82.32 | 84 | 450 |
| JZGAL27004 | 3/4 in. | 20 | 38 | 115.64 | 118 | 300 |
| JZGAL27005 | 1 in. | 25 | 44 | 178.36 | 182 | 180 |
| JZGAL27006 | 1-1/4 in. | 32 | 49 | 263.62 | 269 | 120 |
| JZGAL27007 | 1-1/2 in. | 40 | 53 | 338.1 | 345 | 72 |
| JZGAL27008 | 2 in. | 50 | 63 | 583.1 | 595 | 48 |
| JZGAL27009 | 2-1/2 in. | 65 | 72 | 822.22 | 839 | 32 |
| JZGAL27010 | 3 in. | 80 | 77 | 1065.26 | 1087 | 24 |
| JZGAL27011 | 4 in. | 100 | 91 | 1774.78 | 1811 | 10 |
| JZGAL27012 | 6 in. | 150 | 118 | 3789.66 | 3867 | 4 |
Standard Specification
Standard Specifications
- Material: EN1562 or ISO5922.
- Design and dimensions: EN10242 or ISO49.
- Threads: EN10226 or ISO7-1.
- Tensile strength: 350 MPa.
- Elongation: 10%.
- Zinc coating: 70 um.
- Working pressure: 363 PSI.
- Available size range: 1/8 in. to 6 in.
- Surface treatment: hot-dip galvanized, electrogalvanization, black.
Product Details
| Product Type | Entire thread socket coupling for joining threaded pipe sections |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, thread, length and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
