Malleable Iron Reducing Tee Fig.130R

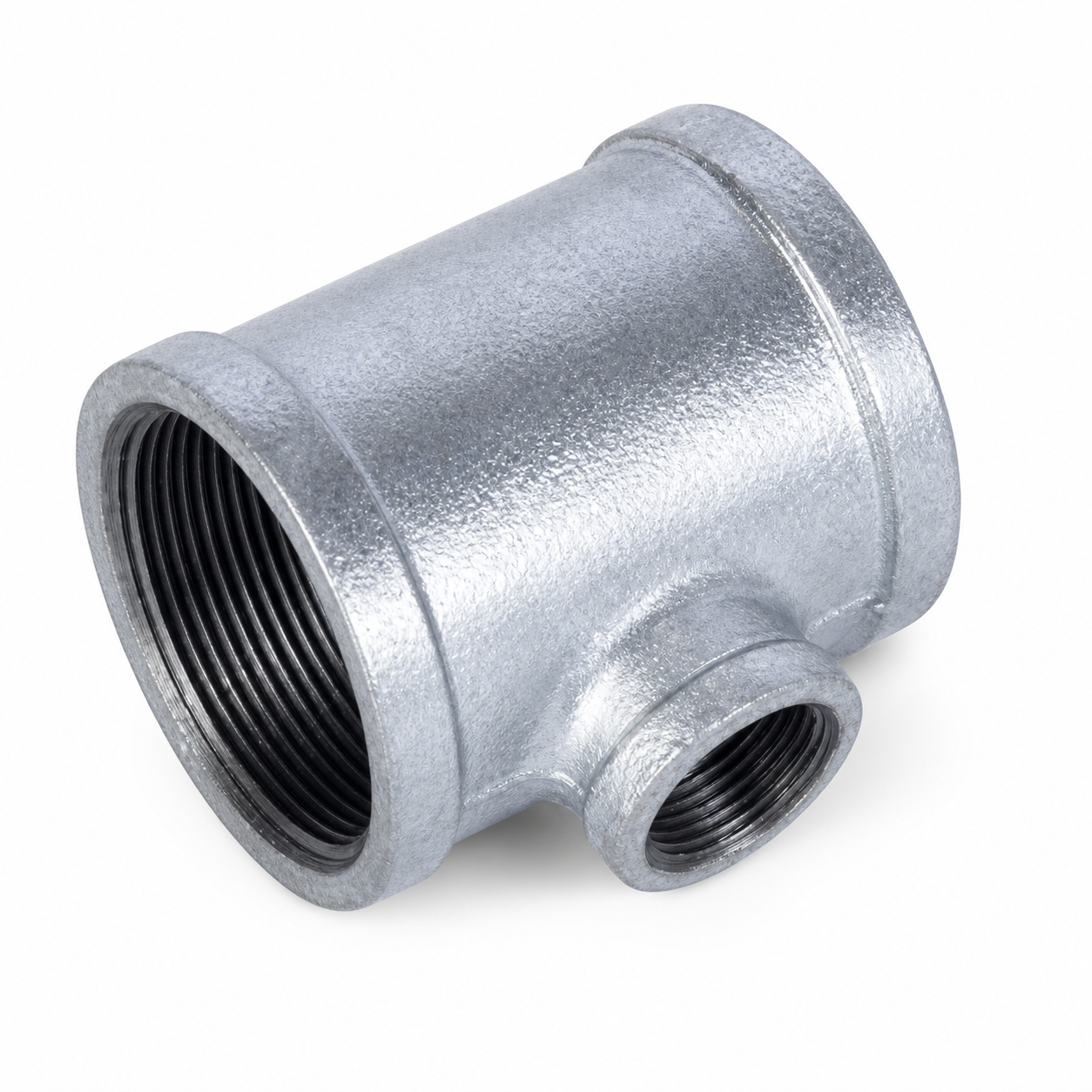

Galvanized malleable iron reducing tee for threaded pipe branch connections where the branch size is reduced from the main line. Fig.130R uses a two-size reducing tee configuration.
Features
- Reducing tee for branch connections where branch size differs from main line size.
- Female threaded galvanized malleable iron fitting.
- Typed long-form size, dimension, weight, and carton packing table for search visibility.

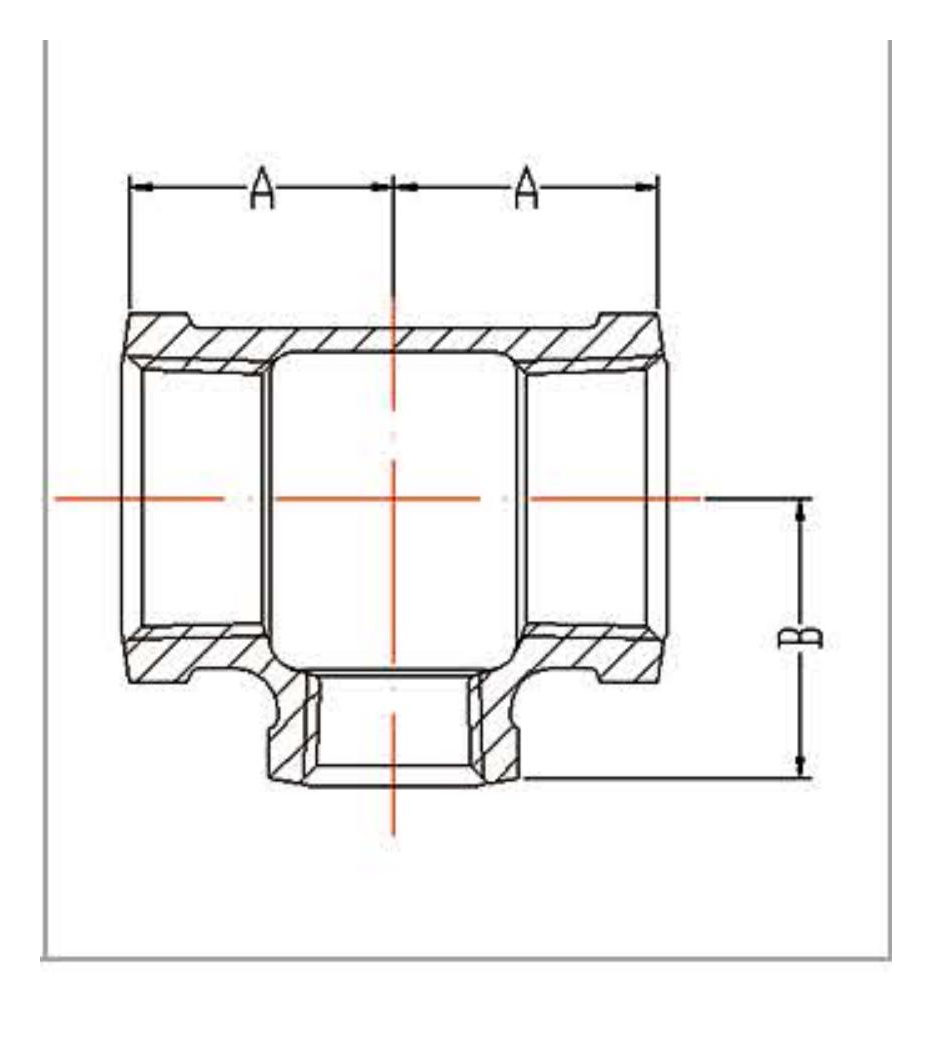

Dimensions and Packing
| Code | NPS | DN | A (mm) | B (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing Carton (pcs/ctn) |
|---|---|---|---|---|---|---|---|
| JZGAL130R01 | 1/2 in. x 3/8 in. | 15 x 10 | 25 | 25 | – | – | – |
| JZGAL130R02 | 3/4 in. x 1/2 in. | 20 x 15 | 29 | 30 | 180.32 | 184 | 150 |
| JZGAL130R03 | 1 in. x 3/8 in. | 25 x 10 | 29 | 31 | 225.4 | 230 | 100 |
| JZGAL130R04 | 1 in. x 1/2 in. | 25 x 15 | 31 | 33 | 238.14 | 243 | 100 |
| JZGAL130R05 | 1 in. x 3/4 in. | 25 x 20 | 34 | 35 | 261.66 | 267 | 100 |
| JZGAL130R06 | 1-1/4 in. x 3/8 in. | 32 x 10 | 31 | 36 | 309.68 | 316 | 64 |
| JZGAL130R07 | 1-1/4 in. x 1/2 in. | 32 x 15 | 34 | 37 | 341.04 | 348 | 64 |
| JZGAL130R08 | 1-1/4 in. x 3/4 in. | 32 x 20 | 36 | 40 | 371.42 | 379 | 64 |
| JZGAL130R09 | 1-1/4 in. x 1 in. | 32 x 25 | 40 | 41 | 407.68 | 416 | 64 |
| JZGAL130R10 | 1-1/2 in. x 1/2 in. | 40 x 15 | 35 | 41 | 406.7 | 415 | 52 |
| JZGAL130R11 | 1-1/2 in. x 3/4 in. | 40 x 20 | 37 | 43 | 427.28 | 436 | 52 |
| JZGAL130R12 | 1-1/2 in. x 1 in. | 40 x 25 | 41 | 45 | 481.18 | 491 | 42 |
| JZGAL130R13 | 1-1/2 in. x 1-1/4 in. | 40 x 32 | 45 | 47 | 557.62 | 569 | 42 |
| JZGAL130R14 | 2 in. x 1/2 in. | 50 x 15 | 37 | 47 | 589.96 | 602 | 40 |
| JZGAL130R15 | 2 in. x 3/4 in. | 50 x 20 | 40 | 49 | 642.88 | 656 | 40 |
| JZGAL130R16 | 2 in. x 1 in. | 50 x 25 | 43 | 51 | 687.96 | 702 | 30 |
| JZGAL130R17 | 2 in. x 1-1/4 in. | 50 x 32 | 47 | 53 | 750.68 | 766 | 30 |
| JZGAL130R18 | 2 in. x 1-1/2 in. | 50 x 40 | 51 | 54 | 826.14 | 843 | 24 |
| JZGAL130R19 | 2-1/2 in. x 1/2 in. | 65 x 15 | 40.5 | 56 | 887.88 | 906 | 24 |
| JZGAL130R20 | 2-1/2 in. x 3/4 in. | 65 x 20 | 43.5 | 57 | 919.24 | 938 | 24 |
| JZGAL130R21 | 2-1/2 in. x 1 in. | 65 x 25 | 47.5 | 59 | 1017.24 | 1038 | 20 |
| JZGAL130R22 | 2-1/2 in. x 1-1/4 in. | 65 x 32 | 51.5 | 61 | 1075.06 | 1097 | 16 |
| JZGAL130R23 | 2-1/2 in. x 1-1/2 in. | 65 x 40 | 54.5 | 61 | 1145.62 | 1169 | 16 |
| JZGAL130R24 | 2-1/2 in. x 2 in. | 65 x 50 | 59.5 | 64 | 1294.58 | 1321 | 16 |
| JZGAL130R25 | 3 in. x 1/2 in. | 80 x 15 | 42.5 | 64 | 1114.26 | 1137 | 12 |
| JZGAL130R26 | 3 in. x 3/4 in. | 80 x 20 | 45.5 | 65 | 1174.04 | 1198 | 12 |
| JZGAL130R27 | 3 in. x 1 in. | 80 x 25 | 49.5 | 67 | 1267.14 | 1293 | 12 |
| JZGAL130R28 | 3 in. x 1-1/4 in. | 80 x 32 | 54.5 | 69 | 1342.6 | 1370 | 12 |
| JZGAL130R29 | 3 in. x 1-1/2 in. | 80 x 40 | 57.5 | 71 | 1440.6 | 1470 | 12 |
| JZGAL130R30 | 3 in. x 2 in. | 80 x 50 | 61.5 | 71 | 1589.56 | 1622 | 10 |
| JZGAL130R31 | 3 in. x 2-1/2 in. | 80 x 65 | 71.5 | 74 | 1862 | 1900 | 10 |
| JZGAL130R32 | 4 in. x 1/2 in. | 100 x 15 | 49.5 | 78 | 1915.9 | 1955 | 8 |
| JZGAL130R33 | 4 in. x 3/4 in. | 100 x 20 | 53.5 | 79 | 2038.4 | 2080 | 8 |
| JZGAL130R34 | 4 in. x 1 in. | 100 x 25 | 56.5 | 82 | 2100.14 | 2143 | 8 |
| JZGAL130R35 | 4 in. x 1-1/4 in. | 100 x 32 | 60.5 | 85 | 2214.8 | 2260 | 6 |
| JZGAL130R36 | 4 in. x 1-1/2 in. | 100 x 40 | 62.5 | 85 | 2303.98 | 2351 | 6 |
| JZGAL130R37 | 4 in. x 2 in. | 100 x 50 | 68.5 | 86 | 2558.78 | 2611 | 6 |
| JZGAL130R38 | 4 in. x 2-1/2 in. | 100 x 65 | 77.5 | 89 | 2799.86 | 2857 | 6 |
| JZGAL130R39 | 4 in. x 3 in. | 100 x 80 | 82.5 | 90 | 3138.94 | 3203 | 6 |
Standard Specification
Standard Specifications
- Material: EN1562 or ISO5922.
- Design and dimensions: EN10242 or ISO49.
- Threads: EN10226 or ISO7-1.
- Tensile strength: 350 MPa.
- Elongation: 10%.
- Zinc coating: 70 um.
- Working pressure: 363 PSI.
- Available size range: 1/8 in. to 6 in.
- Surface treatment: hot-dip galvanized, electrogalvanization, black.
Product Details
| Product Type | Reducing tee for threaded branch pipe size transition |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, thread, length and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
