Malleable Iron Union Flat Seat Fig.471

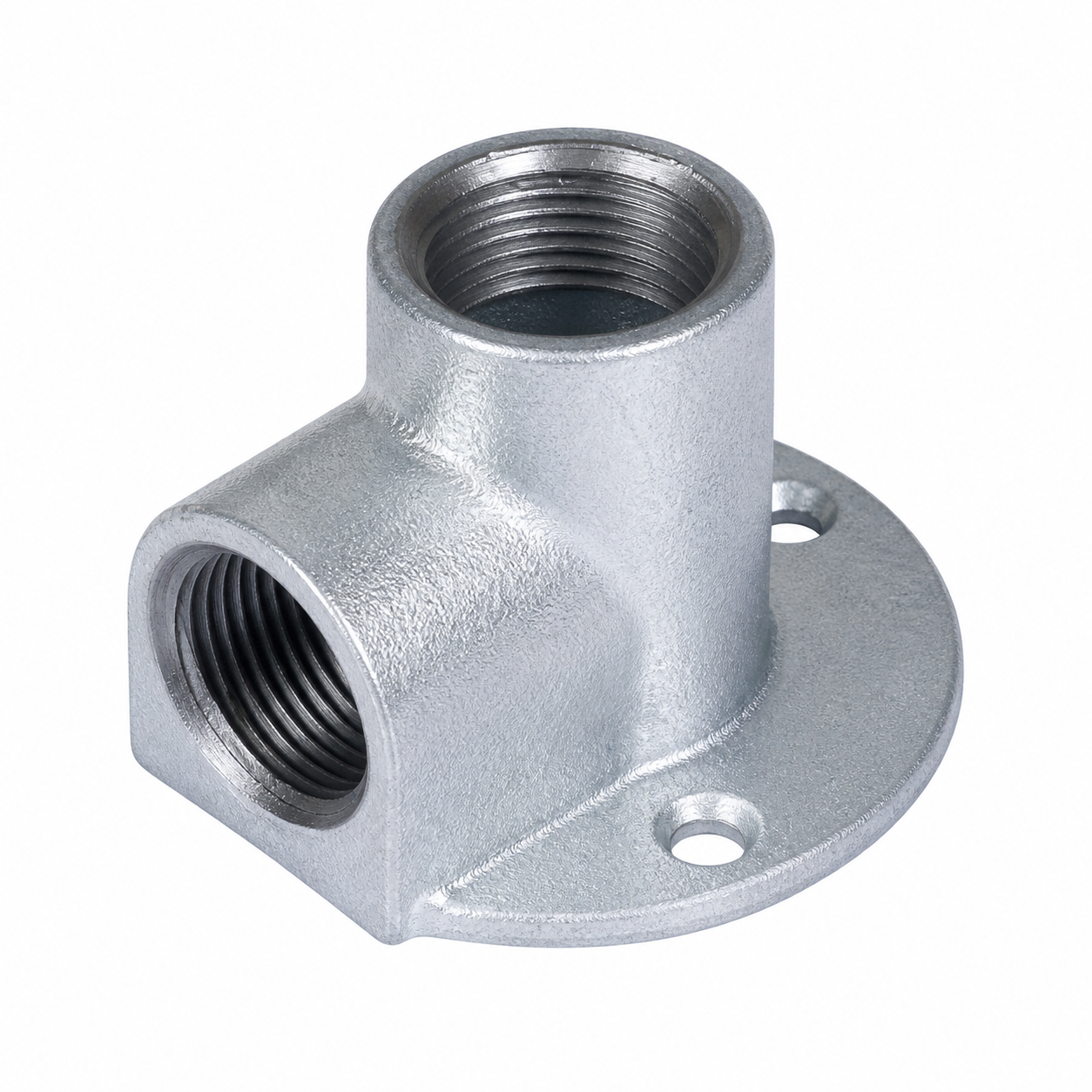

Galvanized malleable iron flat-seat union fitting with vertical and side female-threaded openings and round mounting base.
Product Features
- Material: malleable iron
- Finish: black or galvanized
- Connection: female threaded union
- Seat type: flat seat
- Catalog reference: Fig.471

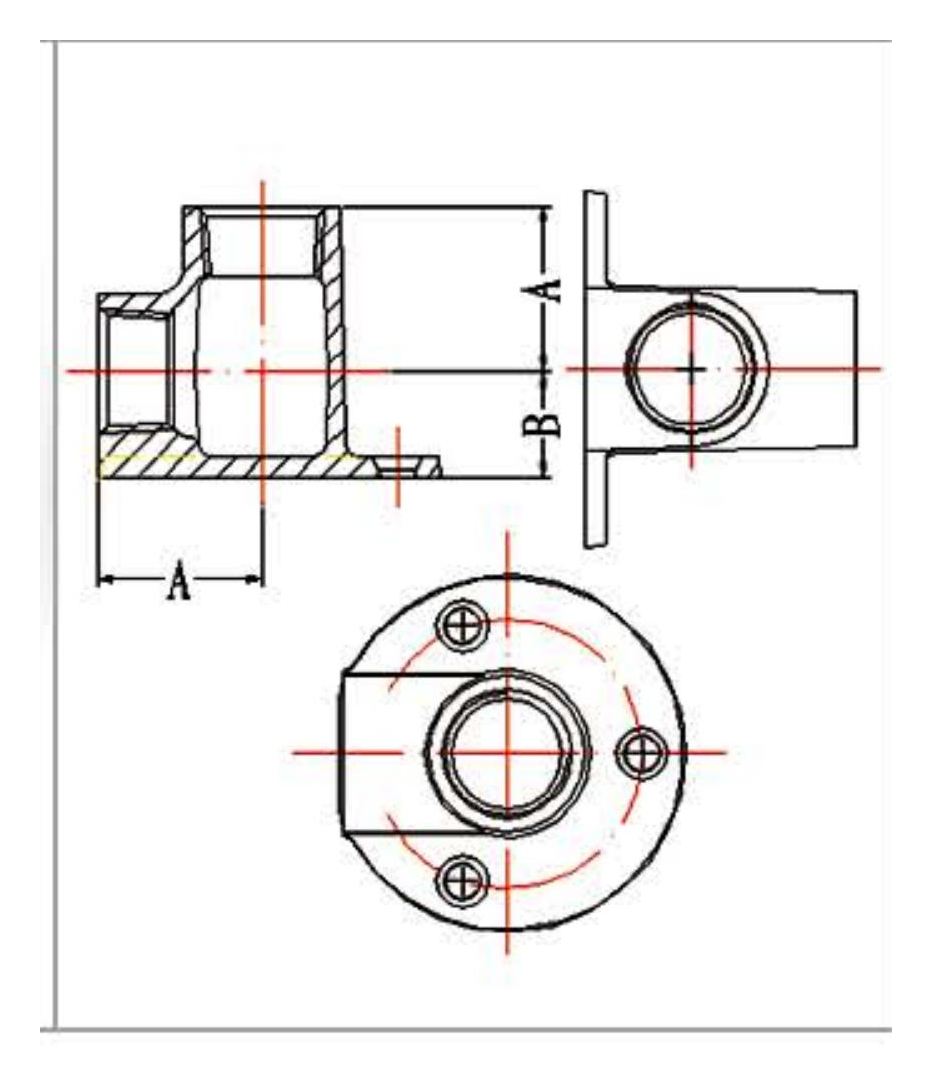

Dimensions and Packing
| Code | NPS | DN | A (mm) | B (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing Carton (pcs/ctn) |
|---|---|---|---|---|---|---|---|
| JZGAL47101 | 1/2 in. | 15 | 28 | 33 | 181.3 | 185 | 150 |
| JZGAL47102 | 3/4 in. | 20 | 18 | 20 | 259.7 | 265 | 100 |
Standard Specification
- Material: malleable iron according to EN1562 / ISO5922.
- Dimensions: EN10242 / ISO49.
- Threads: EN10226 / ISO7-1.
- Minimum tensile strength: 350 MPa.
- Surface finish: black or hot-dip galvanized; galvanized zinc coating thickness approximately 70 um.
- Recommended working pressure: 363 PSI.
Product Details
| Product Type | Flat seat union for detachable threaded pipe connection |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, length, thread and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
