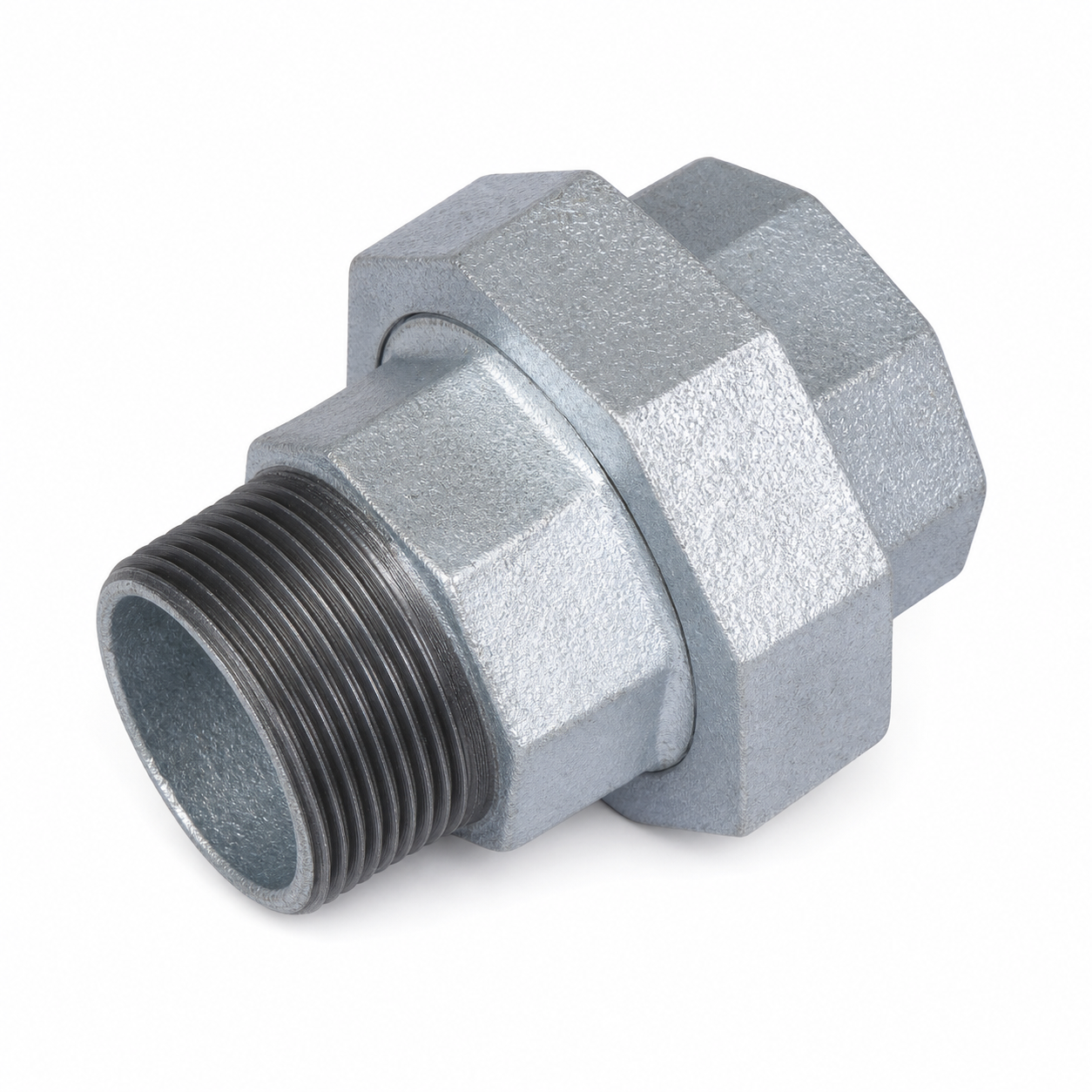

Malleable Iron Union Flat Seat M&F Fig.331
Galvanized malleable iron male and female union with flat seat for removable threaded pipe connections.
Product Features
- Material: malleable iron
- Finish: black or galvanized
- Connection: male x female threaded union
- Seat type: flat seat
- Catalog reference: Fig.331

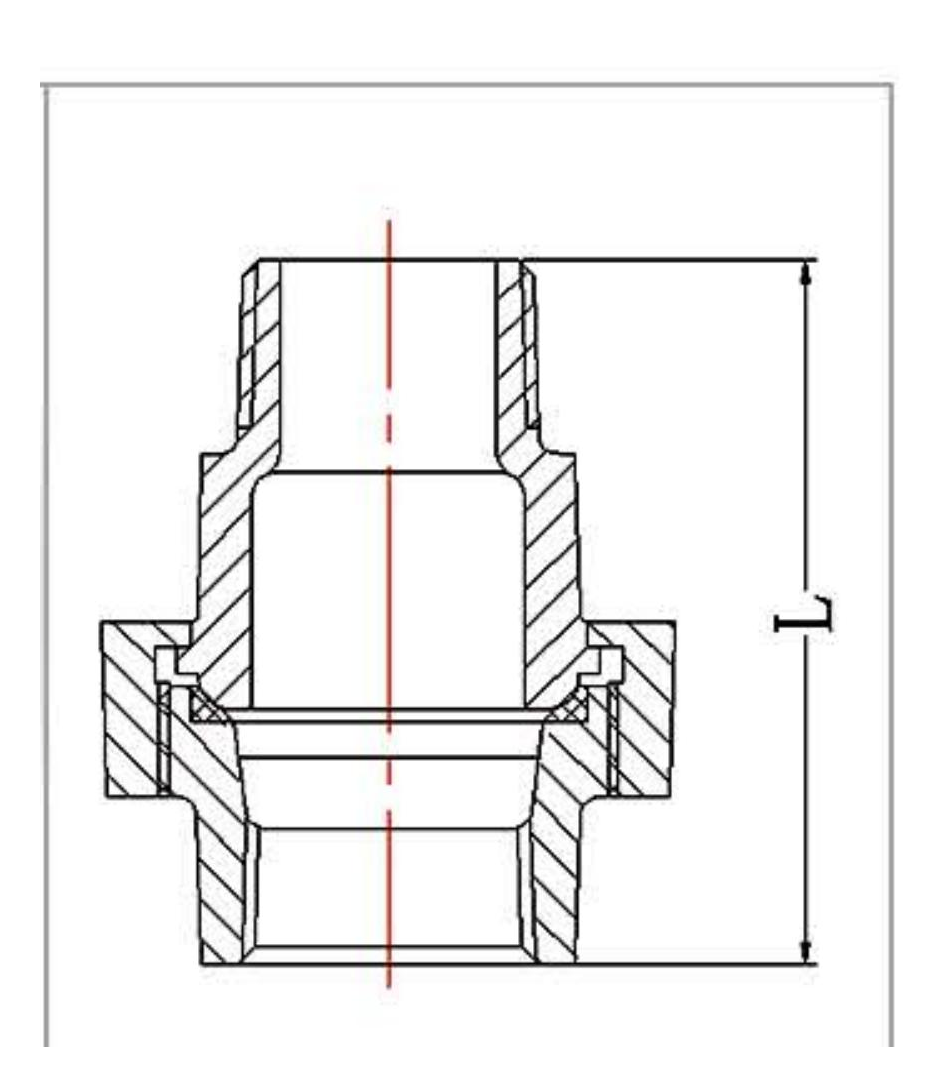

Dimensions and Packing
| Code | NPS | DN | L (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing Carton (pcs/ctn) |
|---|---|---|---|---|---|---|
| JZGAL33101 | 1/2 in. | 15 | 60 | 219.52 | 224 | 140 |
| JZGAL33102 | 3/4 in. | 20 | 70 | 275.38 | 281 | 120 |
| JZGAL33103 | 1 in. | 25 | 78 | 423.36 | 432 | 80 |
| JZGAL33104 | 1-1/4 in. | 32 | 88 | 661.5 | 675 | 40 |
| JZGAL33105 | 1-1/2 in. | 40 | 93 | 784 | 800 | 32 |
| JZGAL33106 | 2 in. | 50 | 104 | 1200.5 | 1225 | 20 |
Standard Specification
- Material: malleable iron according to EN1562 / ISO5922.
- Dimensions: EN10242 / ISO49.
- Threads: EN10226 / ISO7-1.
- Minimum tensile strength: 350 MPa.
- Surface finish: black or hot-dip galvanized; galvanized zinc coating thickness approximately 70 um.
- Recommended working pressure: 363 PSI.
Product Details
| Product Type | Male and female flat seat union for detachable threaded pipe connection |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, thread, length and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
