Ordering Code
Specification
| Type | QFRH-08 | QFRH-10 | QFRH-15 | QFRH-20 | QFRH-25 |
| Medium | Air | ||||
| Joint pipe bore | G1/4 | G3/8 | G1/2 | G3/4 | G1 |
| Filtering eliment roughness | 20 μm or 40 μm | ||||
| Range of adjustable pressure | 0.05~3.5MPa | ||||
| Max.input pressure | 4MPa | ||||
| Operating temperature range | 5~80℃ | ||||

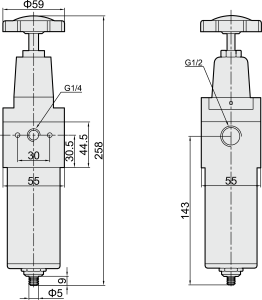

Dimension
