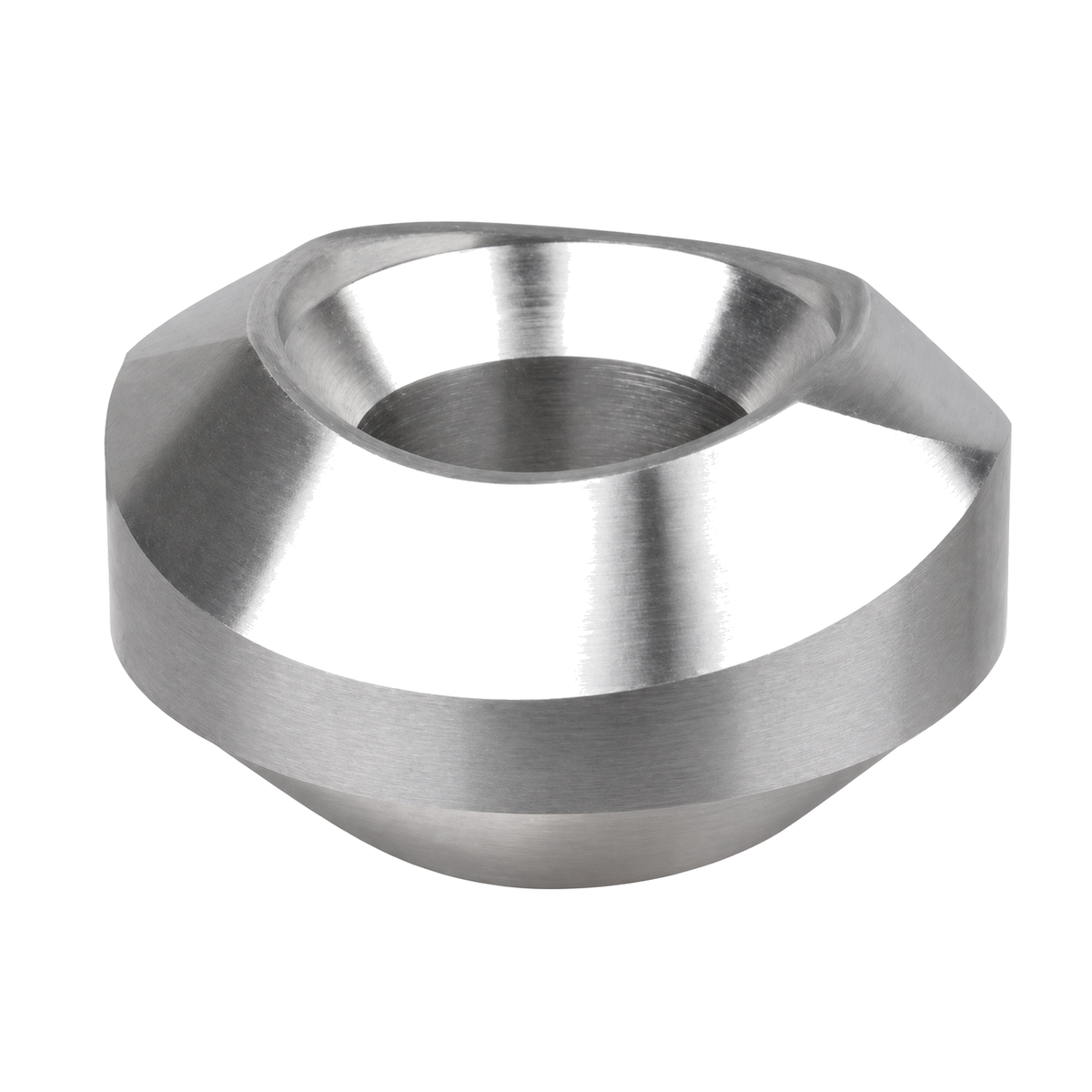

Stainless Branch Outlet Fitting Butt Weld
Stainless steel butt weld branch outlet fitting for reducing branch connections. Dimensions are typed from the OTB high pressure fittings catalog, MSS-SP-97-2001, in millimeters.
| Item | Specification |
|---|---|
| Product | Branch Outlet Fitting Butt Weld |
| Standard | MSS-SP-97-2001 |
| Connection | Butt weld outlet |
| Weld Bevel | ASME B16.25 |
| Dimensions | Millimeters |
| Schedules | Schedule 160 and Double Extra Strong (XXS) |

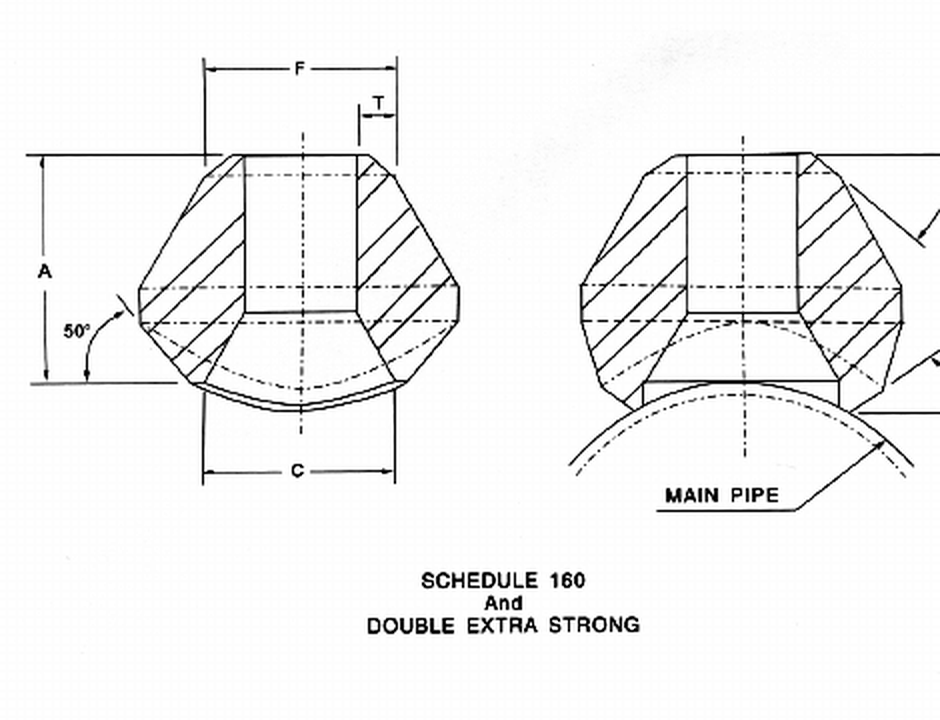

Butt Weld Branch Outlet Dimensions
| Run Pipe Size (in) | Outlet Pipe NPS (in) | A | C | F | T S160 | T XXS |
|---|---|---|---|---|---|---|
| 36-3/4 | 1/2 | 28.0 | 13.8 | 21.3 | 4.78 | 7.47 |
| 1 | 3/4 | 32.0 | 18.9 | 26.7 | 5.56 | 7.82 |
| 1-1/4 | 1 | 38.0 | 24.3 | 33.4 | 6.35 | 9.09 |
| 1-1/2 | 1-1/4 | 44.0 | 32.5 | 42.2 | 6.35 | 9.70 |
| 2 | 1-1/2 | 51.0 | 38.1 | 48.3 | 7.14 | 10.15 |
| 2-1/2 | 2 | 55.0 | 49.2 | 60.3 | 8.74 | 11.07 |
| 3 | 2-1/2 | 62.0 | 59.0 | 73.0 | 9.53 | 14.02 |
| 4 | 3 | 73.0 | 73.7 | 88.9 | 11.13 | 15.24 |
| 5 | 4 | 84.0 | 97.2 | 114.3 | 13.49 | 17.12 |
| 6 | 5 | 94.0 | 122.2 | 141.3 | 15.88 | 19.05 |
| 8 | 6 | 105.0 | 146.4 | 168.3 | 18.26 | 21.95 |
Note: Weld bevel in accordance with ASME B16.25.
Product Details
| Product Type | Butt-weld branch outlet fitting for high pressure branch pipe connection |
|---|---|
| Material | Stainless steel |
| Connection | Butt weld branch outlet connection |
| Pressure Class | High pressure pipe fitting series; confirm pressure class and standard for the selected size |
| Applications | High pressure piping, industrial fluid systems, petrochemical lines, steam, water and gas service |
| Ordering Note | Confirm size, pressure class, connection type, material grade and applicable standard when sending an inquiry |
