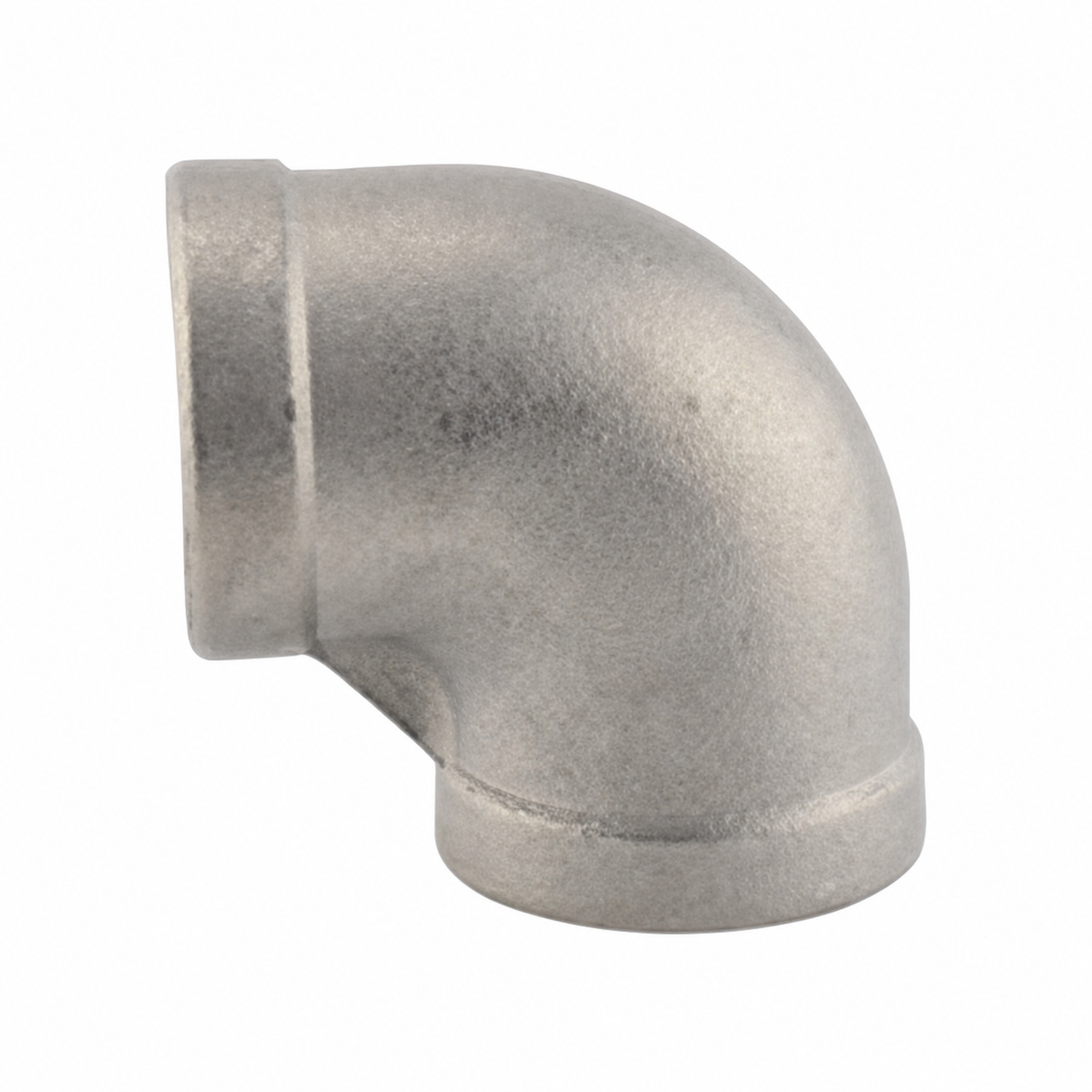

Stainless Steel 150LB 90 Degree Elbow
150LB stainless steel female threaded 90 degree elbow for changing pipe direction in industrial piping systems.
Product Details
| Material | Pressure Rating | Connection | Standards |
|---|---|---|---|
| Stainless Steel 304 / 316 | 150LB | Female NPT threaded | ISO 4144, SP-114, EN-10241, JIS |
Available Sizes
| Size Range | Nominal Sizes |
|---|---|
| 1/8 in to 4 in | 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1 1/4, 1 1/2, 2, 2 1/2, 3, 4 |

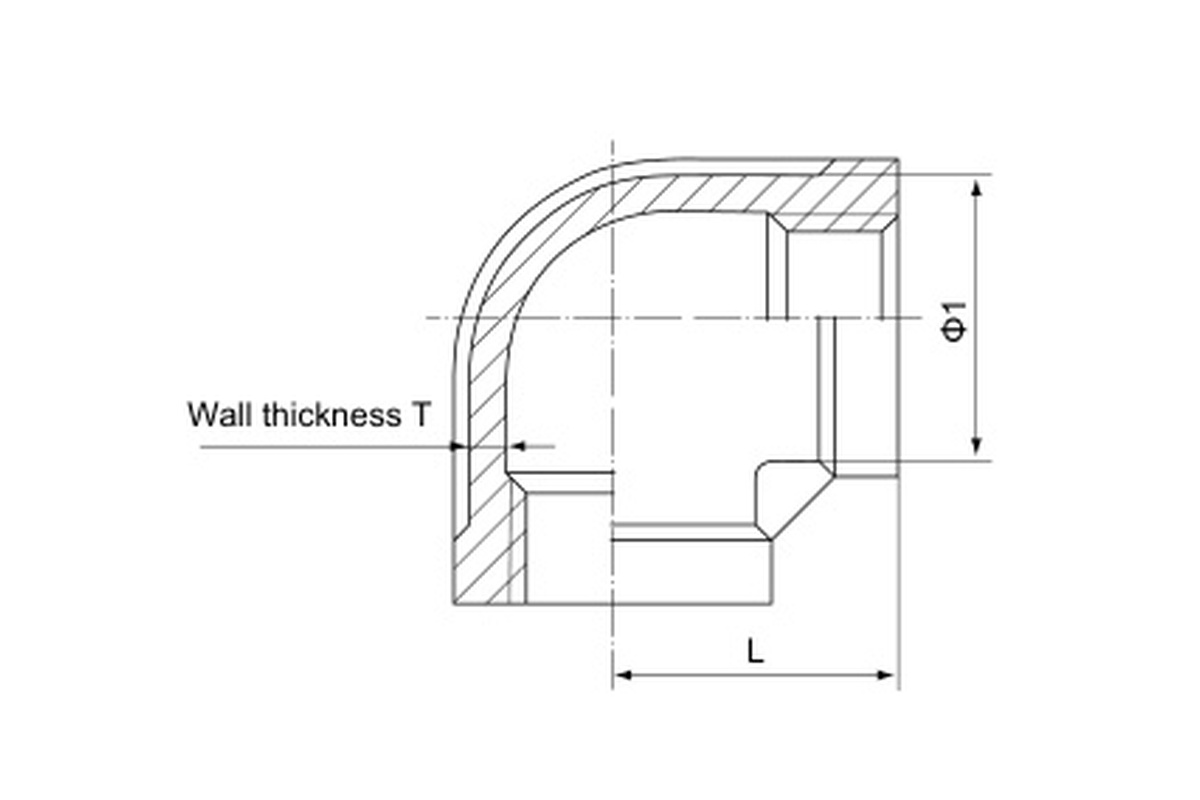

Dimensions Diagram
KH Type Dimensions (mm)
| Dimension | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Φ | 12.6 | 16 | 19.5 | 23.4 | 29.1 | 36.4 | 45.3 | 51.5 | 64.1 | 80.7 | 93.7 | 120 |
| L | 17 | 19 | 23 | 25 | 27.5 | 33 | 40 | 43 | 52 | 65 | 75 | 92 |
ISO 4144 Dimensions (mm)
| Dimension | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Φ1 | 16 | 19 | 22 | 26 | 32 | 39 | 48 | 55 | 67 | 83.5 | 97 | 123 |
| L | 17 | 19 | 23 | 27 | 32 | 38 | 46 | 48 | 57 | 69 | 78 | 96 |
| T | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4.5 | 5 | 5.5 |
SP-114 Dimensions (mm)
| Dimension | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Φ1 | 13.5 | 15.4 | 19.7 | 26.2 | 31.9 | 39.8 | 47.8 | 55.9 | 66.5 | 83.3 | 98.2 | 123 |
| L | 20.6 | 20.6 | 23.6 | 28.5 | 33.3 | 38.1 | 44.5 | 49 | 57.1 | 68 | 77.6 | 96.8 |
| T | 2.7 | 2.7 | 2.7 | 2.7 | 3.2 | 3.2 | 3.8 | 3.8 | 4 | 4.7 | 5.2 | 6 |
EN-10241 Dimensions (mm)
| Dimension | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Φ1 | 15.2 | 19.7 | 23.3 | 28 | 34.8 | 43.6 | 53 | 58 | 71 | 87 | 100 | 126 |
| L | 17 | 18.5 | 22.9 | 26.8 | 32 | 37.5 | 45.9 | 47.6 | 58 | 70 | 77 | 97 |
| T | 3.6 | 4.35 | 4.85 | 3.4 | 4.15 | 5.05 | 5.5 | 5 | 5.6 | 5.75 | 6 | 6.5 |
