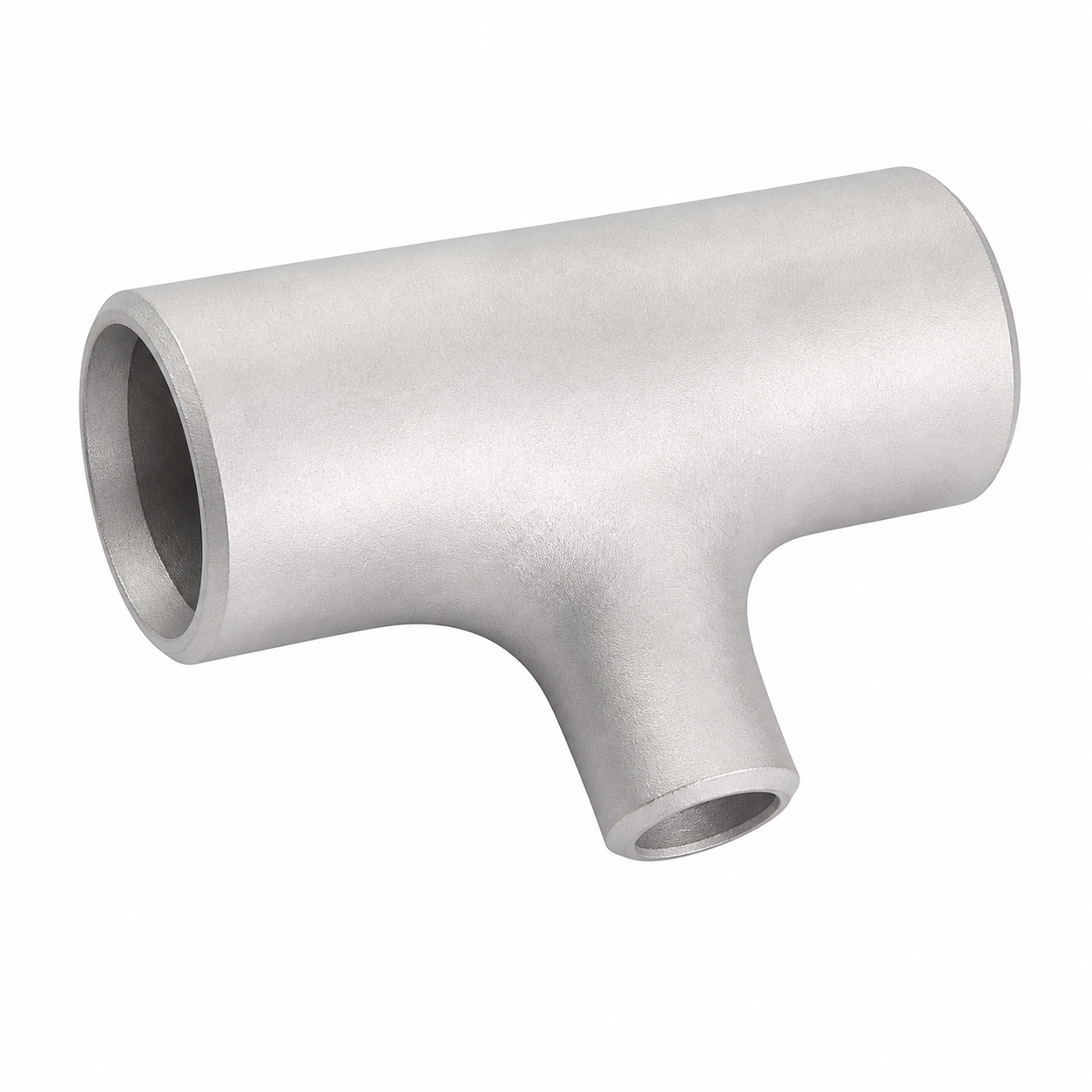

Stainless Steel Butt Weld Reducing Tee

304 stainless steel butt weld reducing outlet tee from the Yaohao welded pipe fittings catalog.

Material: 304 stainless steel
Connection: butt weld / bevel end
Type: reducing outlet tee
Standards shown in catalog: GB/T12459-2017, GB/T13401-92

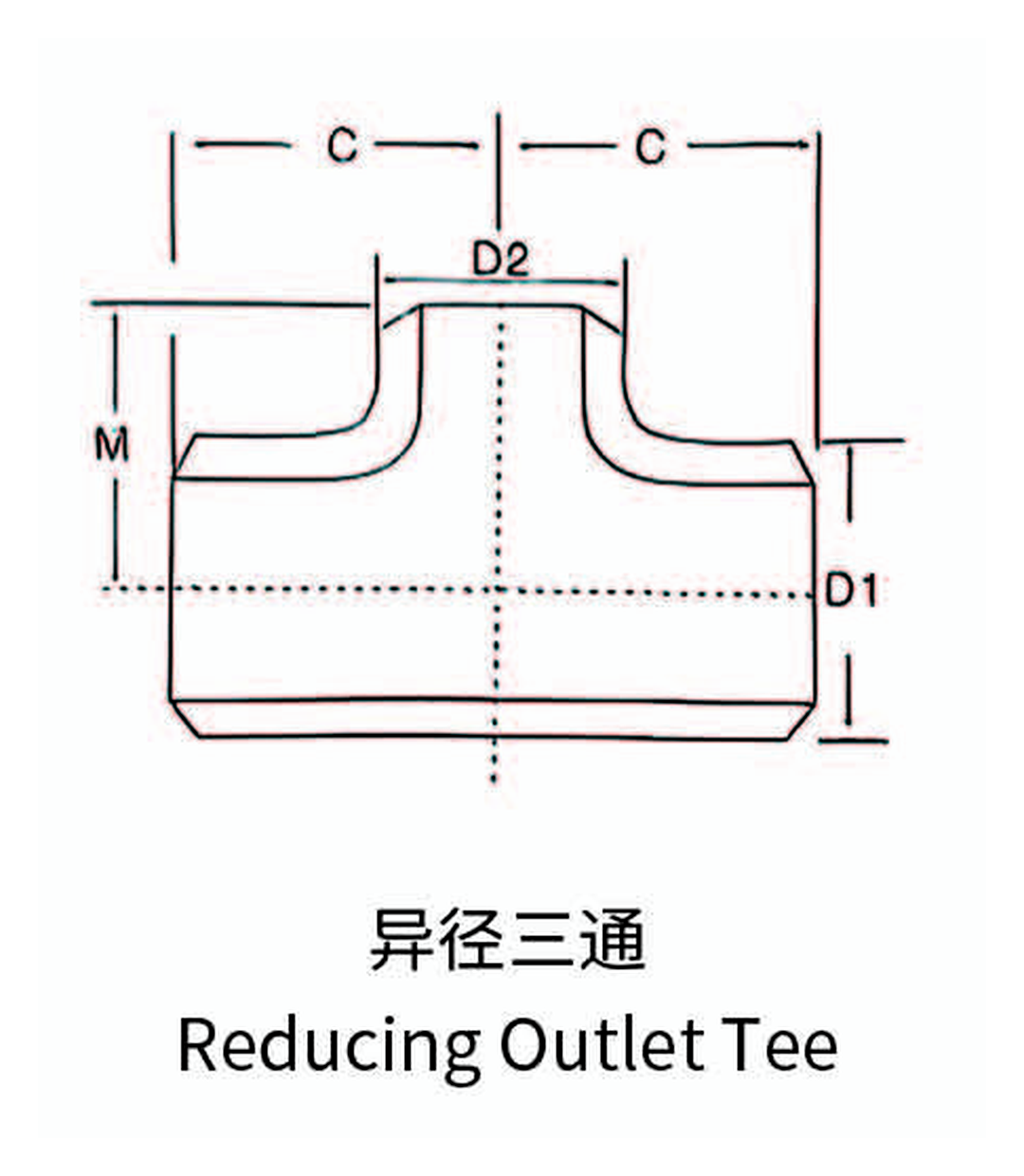

Stainless Steel Butt Weld Reducing Tee Dimension Drawing

Stainless Steel Butt Weld Reducing Tee dimension drawing

对焊异径三通、四通尺寸

DIMENSIONS OF BUTT-WELDED REDUCER
TEES AND CROSSES

GB/T12459-2017、 GB/T13401-92

公称通径 Nominal Pipe Size DN	端部外径 Outside Diameter at Bevel				中心至端面 Center to End
	D1		D2		C	M
	A系列 Series A	B系列 Series B	A系列 Series A	B系列 Series B	C	M
20×15	26.9	25	21.3	18	29	29
25×20	33.7	32	26.9	25	38	38
25×15	33.7	32	21.3	18	38	38
32×25	42.4	38	33.7	32	48	48
32×20	42.4	38	26.9	25	48	48
32×15	42.4	38	21.3	18	48	48
40×32	48.3	45	42.4	38	57	57
40×25	48.3	45	33.7	32	57	57
40×20	48.3	45	26.9	25	57	57
40×15	48.3	45	21.3	18	57	57
50×40	60.3	57	48.3	45	64	60
50×32	60.3	57	42.4	38	64	57
50×25	60.3	57	33.7	32	64	51
50×20	60.3	57	26.9	25	64	44
65×50	76.1(73)	76	60.3	57	76	70
65×40	76.1(73)	76	48.3	45	76	67
65×32	76.1(73)	76	42.4	38	76	64
65×25	76.1(73)	76	33.7	32	76	57
80×65	88.9	89	76.1(73)	76	86	83
80×50	88.9	89	60.3	57	86	76
80×40	88.9	89	48.3	45	86	73
80×32	88.9	89	42.4	38	86	70
90×80	101.6	–	88.9	–	95	92
90×65	101.6	–	76.1(73)	–	95	89
90×50	101.6	–	60.3	–	95	83
90×40	101.6	–	48.3	–	95	79
300×125	323.9	325	141.3	133	254	216
350×300	355.6	377	323.9	325	279	270

公称通径 Nominal Pipe Size DN	端部外径 Outside Diameter at Bevel				中心至端面 Center to End
	D1		D2		C	M
	A系列 Series A	B系列 Series B	A系列 Series A	B系列 Series B	C	M
350×250	355.6	377	273.0	273	279	257
350×200	355.6	377	219.1	219	279	248
350×150	355.6	377	168.3	159	279	238
400×350	406.4	426	355.6	377	305	305
400×300	406.4	426	323.9	325	305	295
400×250	406.4	426	273.0	273	305	283
400×200	406.4	426	219.1	219	305	273
400×150	406.4	426	168.3	159	305	264
450×400	457	478	406.4	426	343	330
450×350	457	478	355.6	377	343	330
450×300	457	478	323.9	325	343	321
450×250	457	478	273.0	273	343	308
450×200	457	478	219.1	219	343	298
500×450	508	529	457	478	381	368
500×400	508	529	406.4	426	381	356
500×350	508	529	355.6	377	381	356
500×300	508	529	323.9	325	381	346
500×250	508	529	273.0	273	381	333
500×200	508	529	219.1	219	381	324
550×500	559	–	508	–	419	406
550×450	559	–	457	–	419	394
550×400	559	–	406	–	419	381
600×550	610	–	559	–	432	432
600×500	610	630	508	530	432	432
600×450	610	630	457	480	432	419
650×600	660	–	610	–	495	483
650×550	660	–	559	–	495	470
650×500	660	–	508	–	495	457

公称通径 Nominal Pipe Size DN	端部外径 Outside Diameter at Bevel				中心至端面 Center to End
	D1		D2		C	M
	A系列 Series A	B系列 Series B	A系列 Series A	B系列 Series B	C	M
700×650	711	–	660	–	521	521
700×600	711	720	610	630	521	508
700×550	711	–	599	–	521	495
750×700	762	–	711	–	559	546
750×650	762	–	660	–	559	546
750×600	762	–	610	–	559	533
800×750	813	–	762	–	597	584
800×700	813	820	711	720	597	572
800×650	813	–	660	–	597	572
850×800	864	–	813	–	635	622
850×750	864	–	762	–	635	610
850×700	864	–	711	–	635	597
900×850	914	–	864	–	673	660
900×800	914	920	813	820	673	648
900×750	914	–	762	–	673	635
950×900	965	–	914	–	711	711
950×850	965	–	864	–	711	698
950×800	965	–	813	–	711	686
1000×950	1016	–	965	–	749	749
1000×900	1016	1020	914	920	749	737
1000×850	1016	–	864	–	749	724
1050×1000	1067	–	1016	–	762	711
1050×950	1067	–	965	–	762	711
1050×900	1067	–	914	–	762	711
1100×1050	1118	–	1067	–	813	762
1100×1000	1118	1120	1016	1020	813	749
1100×950	1118	–	965	–	813	737
1150×1100	1168	–	1118	–	851	800

公称通径 Nominal Pipe Size DN	端部外径 Outside Diameter at Bevel				中心至端面 Center to End
	D1		D2		C	M
	A系列 Series A	B系列 Series B	A系列 Series A	B系列 Series B	C	M
1150×1050	1168	–	1067	–	851	787
1150×1000	1168	–	1016	–	851	775
1200×1150	1220	–	1168	–	889	838
1200×1100	1220	1220	1118	1120	889	838
1200×1050	1220	–	1067	–	889	813

注：GB/T12459-2017 尺寸范围 DN15-800，DN650 以上推荐但不标出出口尺寸 M；GB/T13401-92 尺寸范围 DN350-1200。
Note: GB/T12459-2017 size range is DN15-800. Sizes above DN650 are recommended and exportation size is not required for M. GB/T13401-92 size range is DN350-1200.

Product Details

Product Type	Reducing tee for stainless steel butt weld branch pipe size transition
Material	Stainless steel
Connection	Butt weld pipe fitting connection
Dimension Data	Nominal pipe size, outside diameter, wall thickness, center-to-end or length dimensions are listed in the dimensions tables above
Applications	Stainless steel process piping, water, gas, steam, chemical and general industrial pipeline systems
Ordering Note	Confirm size, wall thickness/schedule, material grade, standard and end preparation when sending an inquiry
