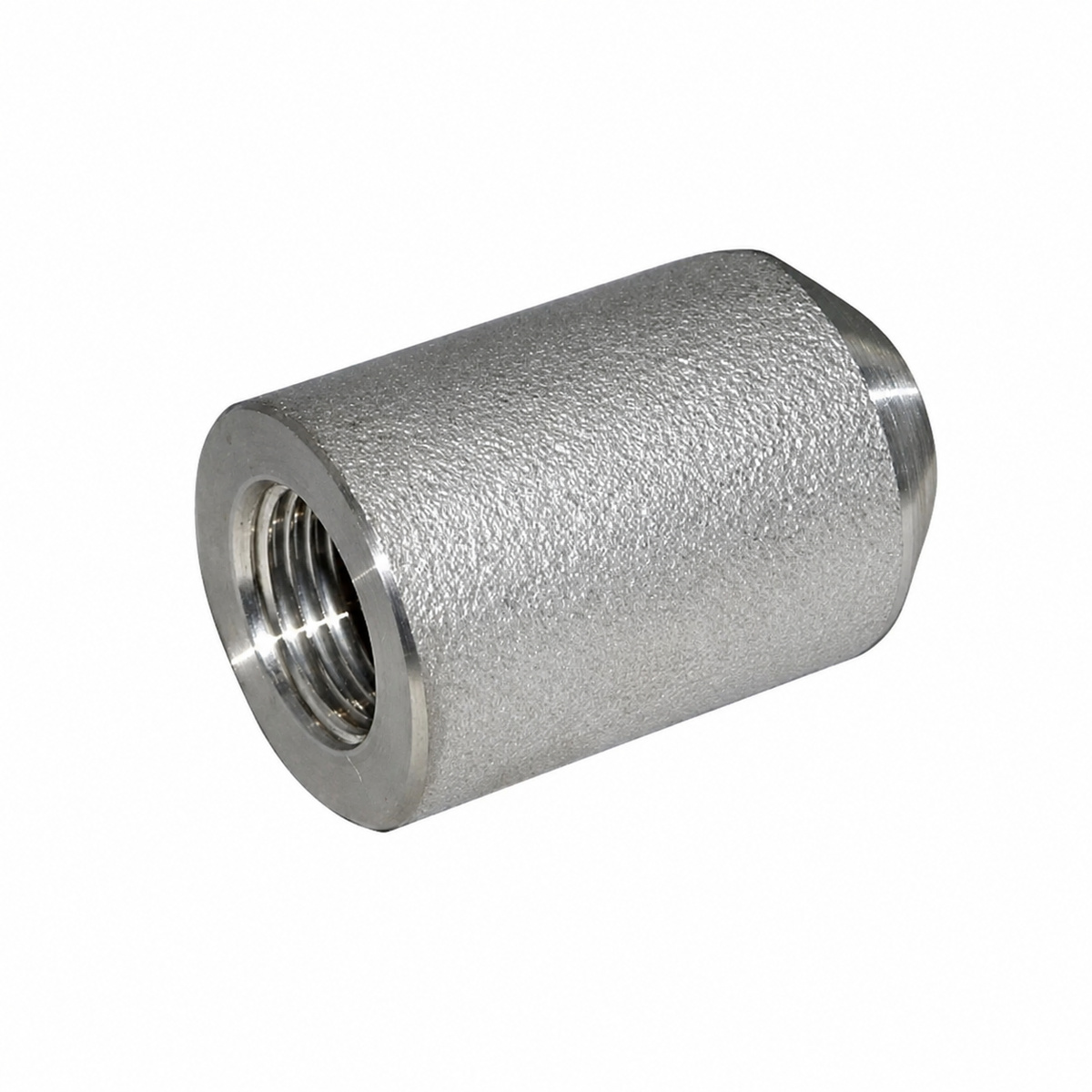

Stainless Threaded Boss
Stainless Threaded Boss is a stainless steel high pressure pipe fitting used for branch connections in threaded and socket-welding piping systems.
Product Details
| Standard | ASME B16.11 |
|---|---|
| Pressure Class | 3000LB / 6000LB |
| Material | A182 F304/L, F304H, F316/L, F316Ti, F321, F5, F11, F22, F51, F55, F91 |
| Connection | Threaded |
Available Sizes
| Pressure Class | Size (in) |
|---|---|
| 3000LB | 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 |
| 6000LB | 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 |

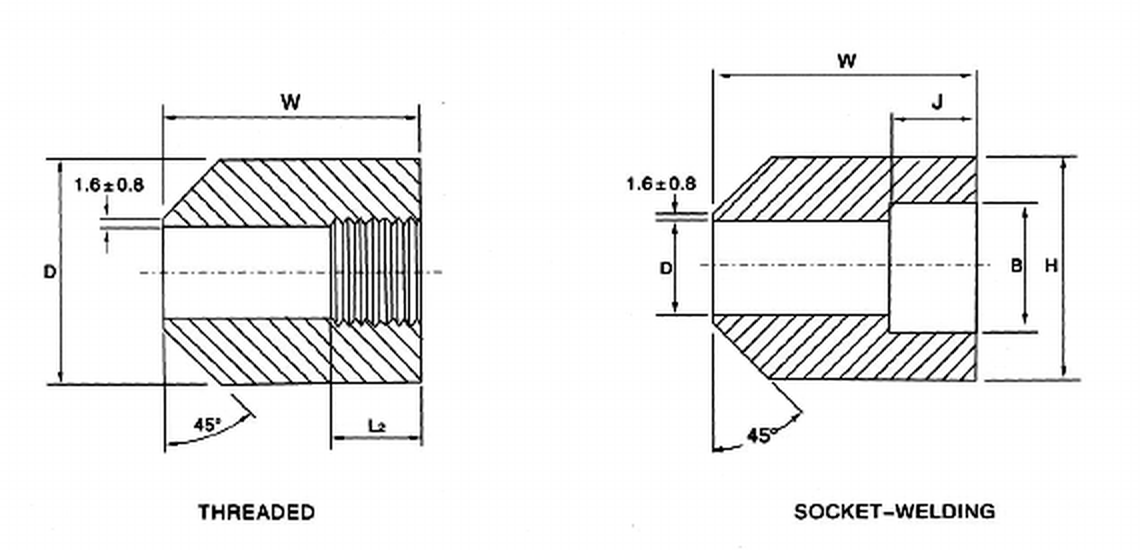

Dimensions Data (mm)
Dimensions are listed in millimeters. Size is shown in inches.
3000LB Threaded Boss
| Size (in) | D | W | L2 (Min) |
|---|---|---|---|
| 1/4 | 22.1 | 39.9 | 10.0 |
| 3/8 | 25.9 | 50.0 | 10.5 |
| 1/2 | 34.0 | 50.0 | 13.5 |
| 3/4 | 39.1 | 50.0 | 14.0 |
| 1 | 48.0 | 50.0 | 17.5 |
| 1-1/4 | 59.9 | 50.0 | 18.0 |
| 1-1/2 | 65.0 | 50.0 | 18.5 |
| 2 | 80.0 | 59.9 | 19.0 |
6000LB Threaded Boss
| Size (in) | D | W | L2 (Min) |
|---|---|---|---|
| 1/4 | 25.9 | 39.9 | 10.0 |
| 3/8 | 36.0 | 50.0 | 10.5 |
| 1/2 | 43.9 | 50.0 | 13.5 |
| 3/4 | 50.0 | 50.0 | 14.0 |
| 1 | 59.9 | 50.0 | 17.5 |
| 1-1/4 | 65.0 | 50.0 | 18.0 |
| 1-1/2 | 80.0 | 50.0 | 18.5 |
| 2 | 95.0 | 59.9 | 19.0 |
