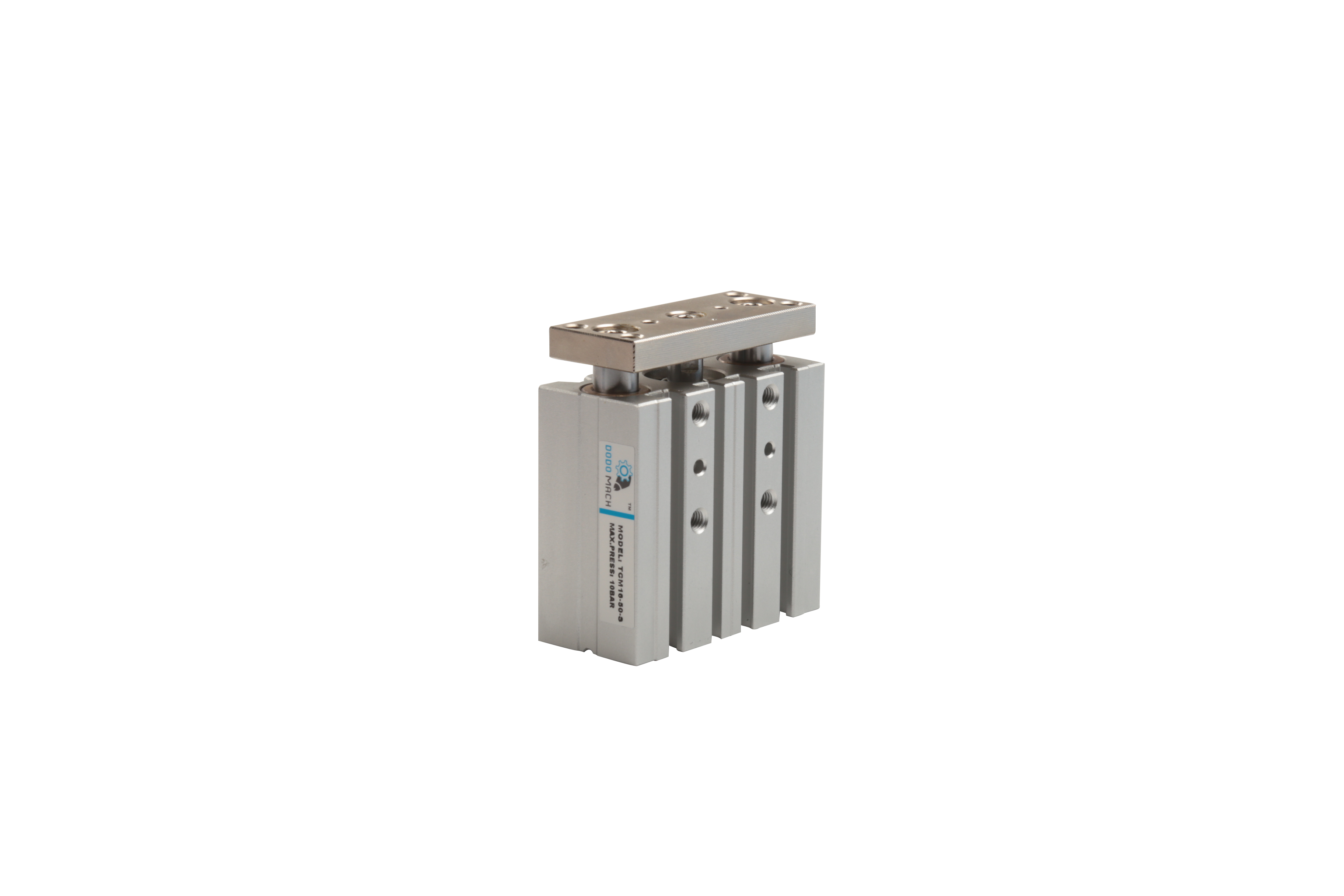

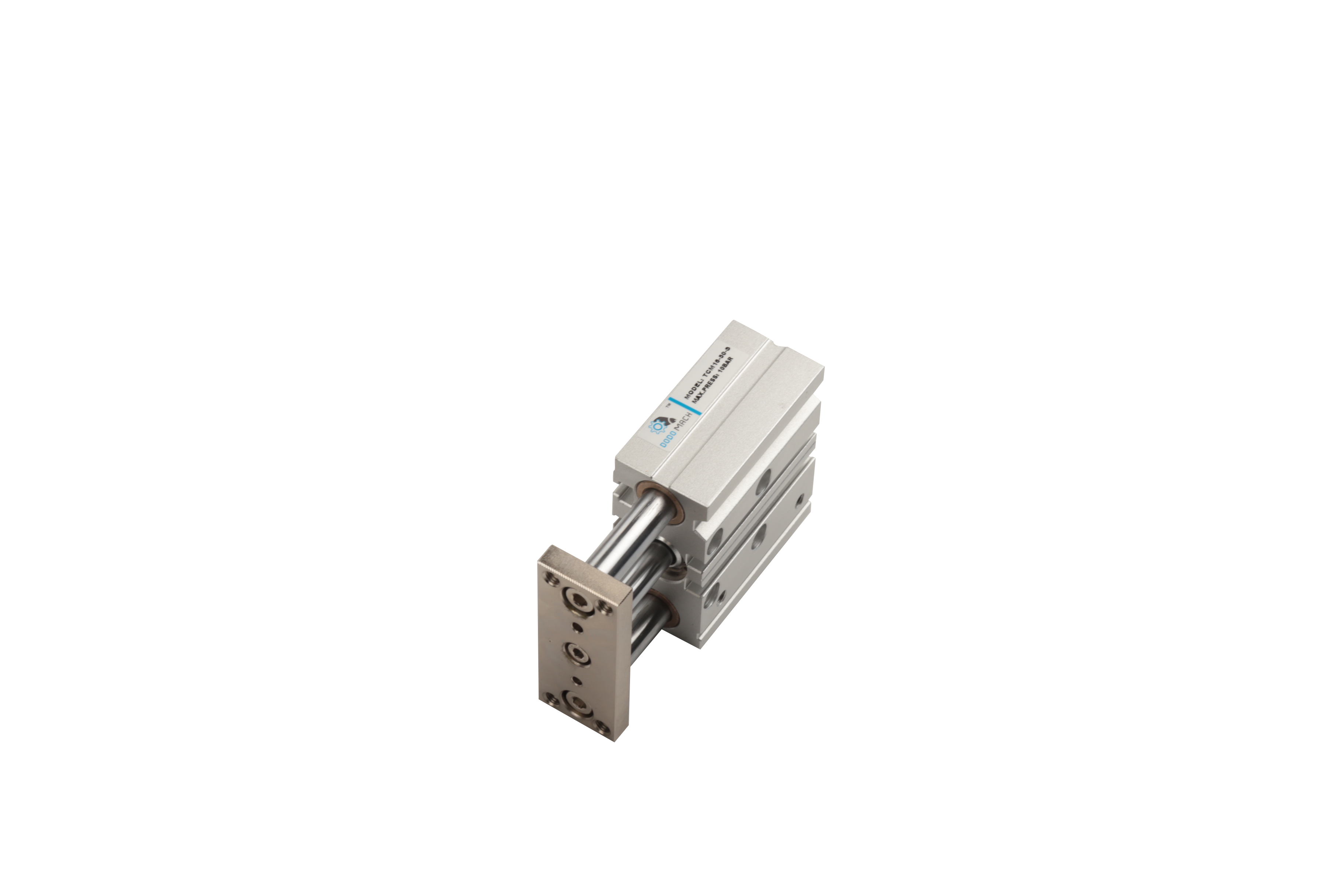

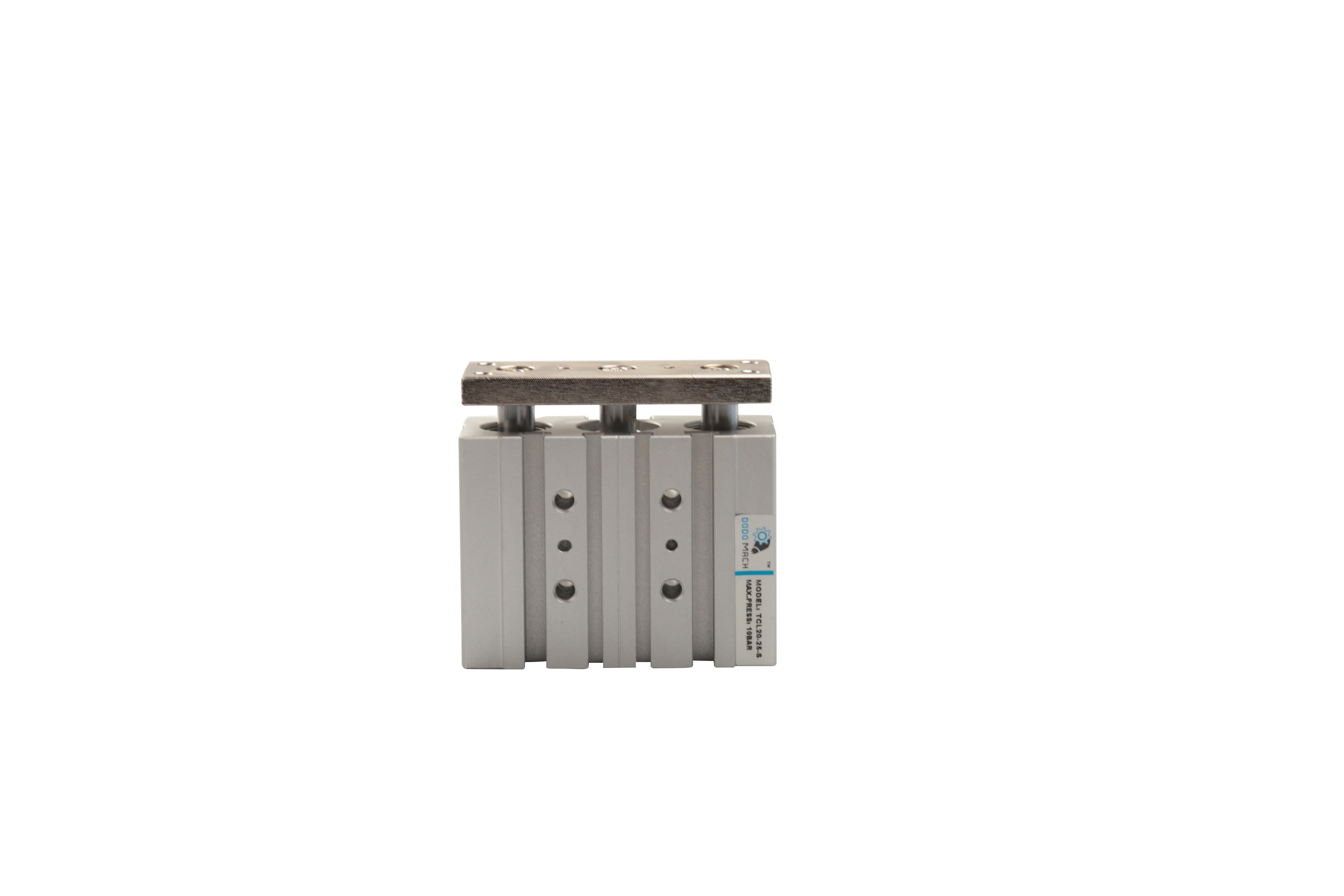

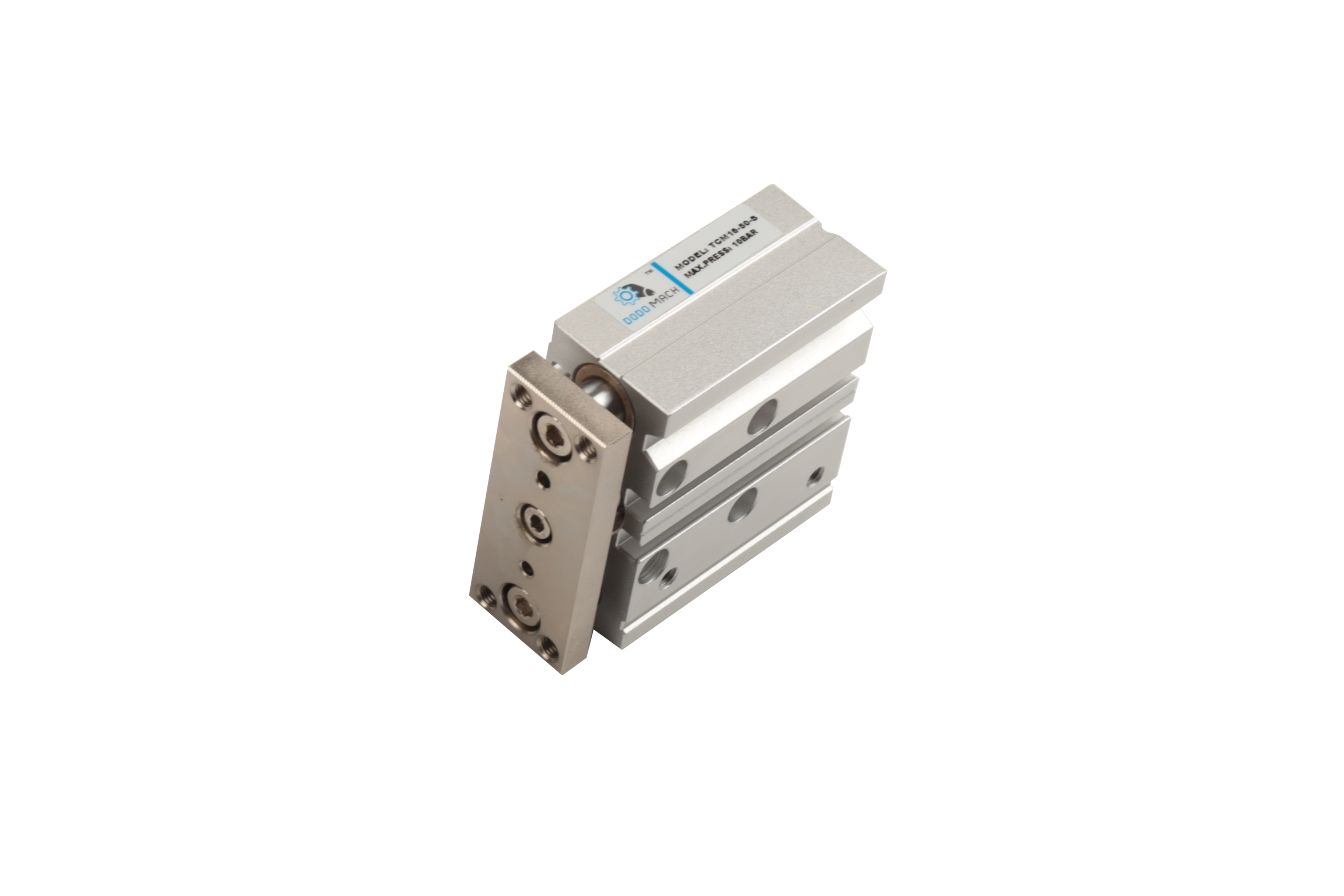

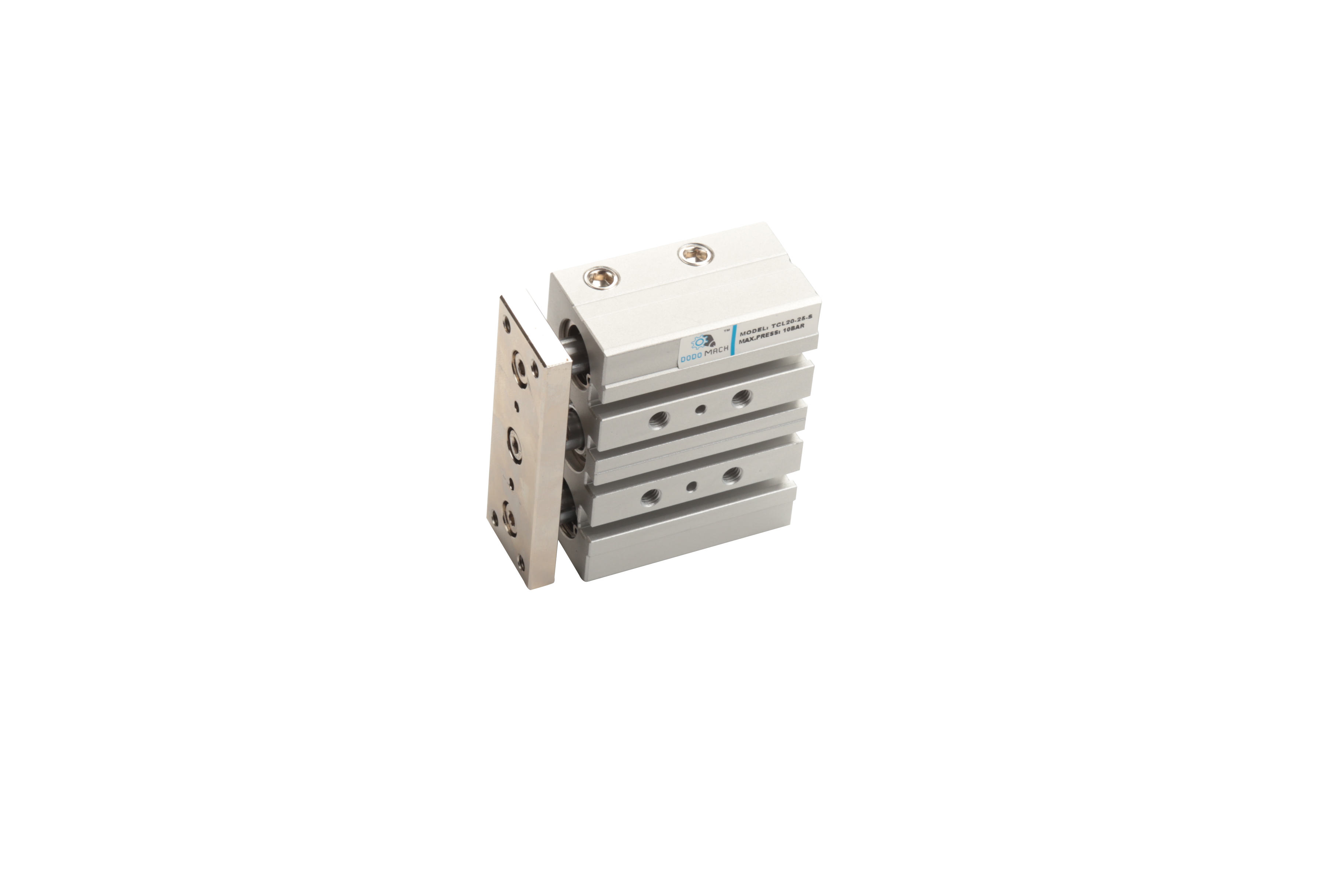

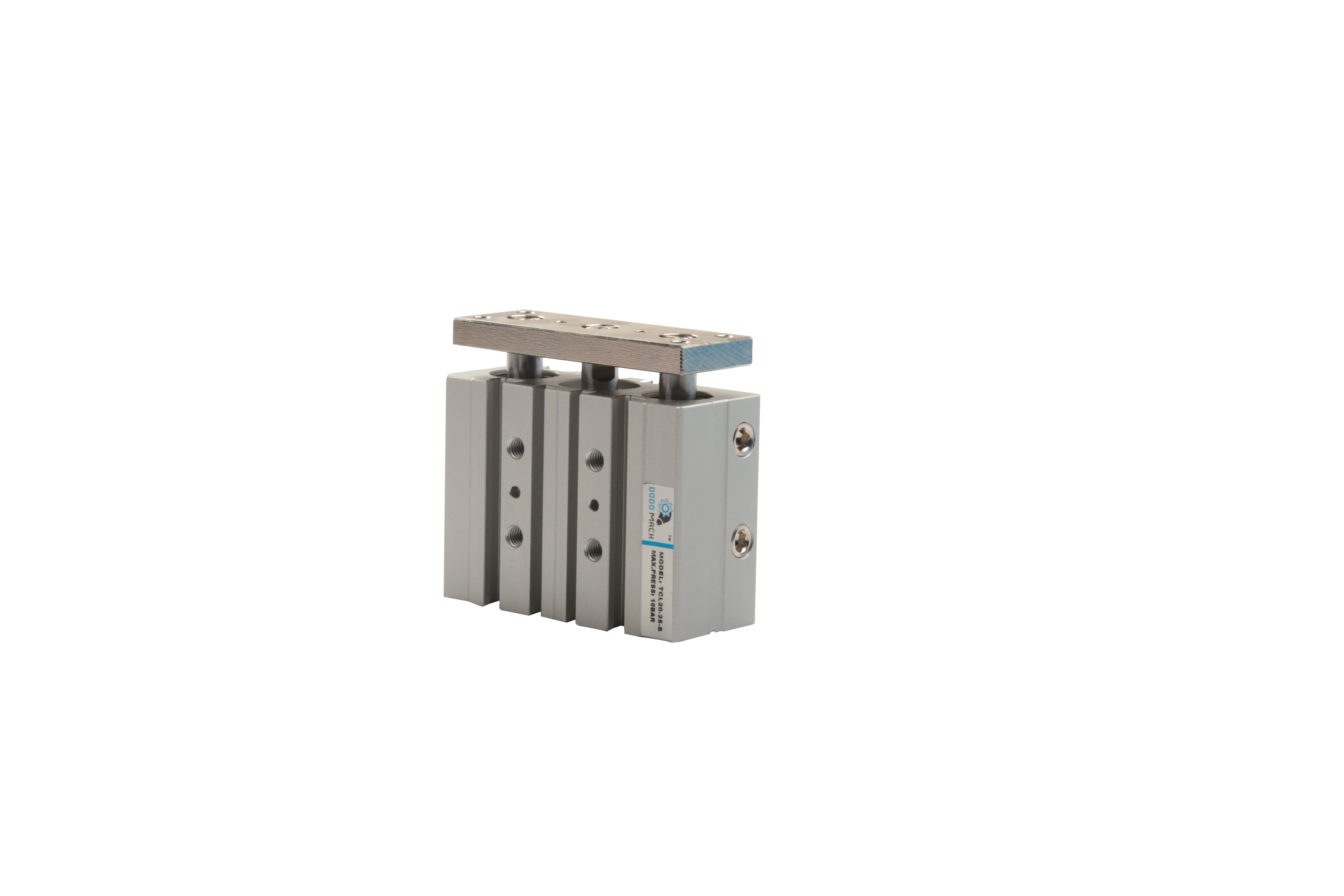

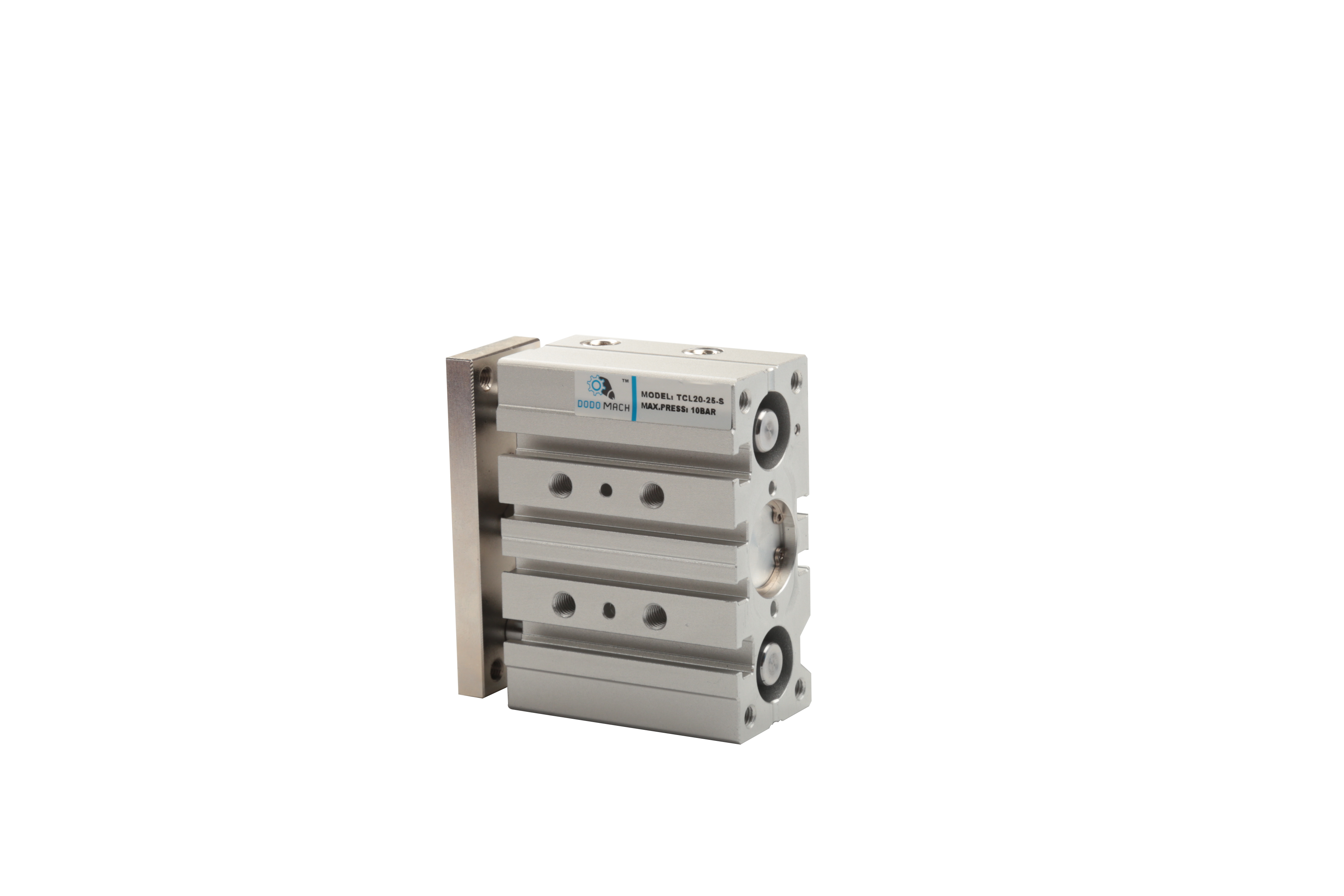

    TC Series

    Model: TCM / TCL

    Operating pressure: 1.5~10 Bar

    Category

    Ordering code

    TC ordering code

    Specification

    Bore size(mm) 6 10 12 16 20 25 32 40 50 63 80 100
    Acting type TCL – Double acting
    TCM Double acting
    Working medium Air(to be filtered by 40µm filter element)
    Operating pressure 2~7 Bar 1.5~10 Bar
    Proof pressure 12 Bar 15 Bar
    Temperature range -20~70℃
    Operating speed range(mm/s) 50~500 30~500 50~400
    Cushion type Bumper
    Port size M3×0.5 M5×0.8 G1/8″ G1/4″ G3/8″

    Dimension

    TCM 6~10

    TCM 6~10 dimension



    Bore A AB AC AD B BA C CA CB D DB G K L LA LB LC LD M MA MB N P PD PF
    6 29.5 6 23.5 5 30 29 14.5 9 6 5 3 20.5 M2.5*0.45 M3*0.5 5 20.5 6 9 6 3 9.5 3.5 M3*0.5 9.5 5.5
    10 32 6 26 5 34 33 18 10 7.5 6 5 23 M3*0.5 M4*0.7 5 23 8 11 8 4 8.5 4.5 M3*0.5 11.5 5



    TCL TCM 12~63

    TCL TCM 12~63 dimension



    Bore A DA MC KC
    TCL TCM TCL /TCM TCL TCM
    Stroke ≤30 ≤50 31(51)~100 101~200 >200 ≤30 31~100 101~200 >200 ≤50 51~100 101~200 >200 ≤30 31~100 101~200 >200 ≤30 31~100 101~200 >200
    12 42 55 85 – 0 13 43 – 0 13 43 – 20 40 110 – 15 25 60 –
    16 46 65 95 – 0 19 49 – 0 19 49 – 24 44 110 – 17 27 60 –
    20 53 80 104 122 0 27 51 69 0 27 51 69 24 44 120 200 29 39 77 117
    25 53.5 82 104.5 122 0 28.5 51 68.5 0 28.5 51 68.5 24 44 120 200 29 39 77 117
    Stroke ≤50 ≤50 51~100 101~200 >200 ≤50 51~100 101~200 >200 ≤50 51~100 101~200 >200 ≤40 41~100 101~200 >200 ≤40 41~100 101~200 >200
    32 65 78 102 118 140 5.5 42.5 58.5 80.5 18.5 42.5 58.5 80.5 24 48 124 200 33 45 83 121
    40 66 78 102 118 140 0 36 52 74 12 36 52 74 24 48 124 200 34 46 84 122
    50 76 89 118 134 161 4 46 62 89 17 46 62 89 24 48 124 200 36 48 86 124
    63 77 89 118 134 161 0 41 57 84 12 41 57 84 28 52 128 200 38 50 88 124



    Bore AB AC AD B BA C CA D(TCL) D(TCM) DB G J JA K KA KB L LA LB LC LD
    12 13 29 8 58 56 26 22 6 8 6 41 3.5 3 3 6 23 M4x0.7 10 50 18 48
    16 13 33 8 64 62 30 25 8 10 6 46 3.5 3 3 6 24 M5x0.8 12 56 22 54
    20 16 37 10 83 81 36 30 10 12 10 54 3.5 3 3 6 28 M5x0.8 13 72 24 70
    25 16 37.5 10 93 91 42 38 12 16 12 64 4.5 3 4 6 34 M6x1.0 15 82 30 78
    32 22 37.5 12 112 110 48 44 16 20 16 78 4.5 3 4 6 42 M8x1.25 20 98 34 96
    40 22 44 12 120 118 54 44 16 20 16 86 4.5 3 4 6 50 M8x1.25 20 106 40 104
    50 28 44 16 148 146 64 60 20 20 20 110 6 4 5 8 66 M10x1.5 22 130 46 130
    63 28 49 16 162 158 78 70 20 20 20 124 6 4 5 8 80 M10x1.5 22 142 58 130



    Bore LE M MA MB N P PA PB PC PD PE PF R RA S U V W X Y
    12 14 8 4.5 5 4.5 M5x0.8 8 18 11 11 13 7.5 M5x0.8 12 37 7.5 4.5 4 2 6.5
    16 16 8 4.5 5 4.5 M5x0.8 10 19 11 11 15 8 M5x0.8 10 38 7.5 4.5 4 2.5 7
    20 18 9.5 5.5 17 5.5 1/8″ 11 25 10.5 10.5 12.5 9 M6x1.0 12 44 8.5 5.5 4.5 3 8
    25 26 9.5 5.5 17 5.5 1/8″ 13.5 28.5 11.5 11.5 12.5 9 M6x1.0 12 50 8.5 5.5 4.5 3 8.5
    32 30 11 7.5 21 6.5 1/8″ 16 34 12.5 12.5 7 9 M8x1.25 16 63 10.5 6.5 5.5 3.5 9.5
    40 30 11 7.5 22 6.5 1/8″ 18 38 14 14 13 10 M8x1.25 16 72 10.5 6.5 5.5 4 11
    50 40 14 9 24 8.5 1/4″ 21.5 47 12 14 9 11 M10x1.5 20 92 13.5 8.5 7.5 4.5 13.5
    63 50 14 9 24 8.5 1/4″ 28 55 16.5 16.5 14 13.5 M10x1.5 20 110 18 11 10 7 18.5



    TCL TCM 80

    TCL TCM 80 dimension



              Stroke
    Item    		 25 30 40 50 60 70 75 80 100 125 150 175 200 225 250
    A TCM=112.5/TCL=106.5 165.5 187.5
    DA TCM=16/TCL=10 69 91
    KC 42 54 92 128
    MC 28 52 128 200



    TCL TCM 100

    TCL TCM 100 dimension



              Stroke
    Item    		 25 30 40 50 60 70 75 80 100 125 150 175 200 225 250
    A TCM=128/TCL=122 186 208
    DA TCM=12/TCL=6 70 92
    KC 35 47 85 121
    MC 48 72 148 220
