Product Details

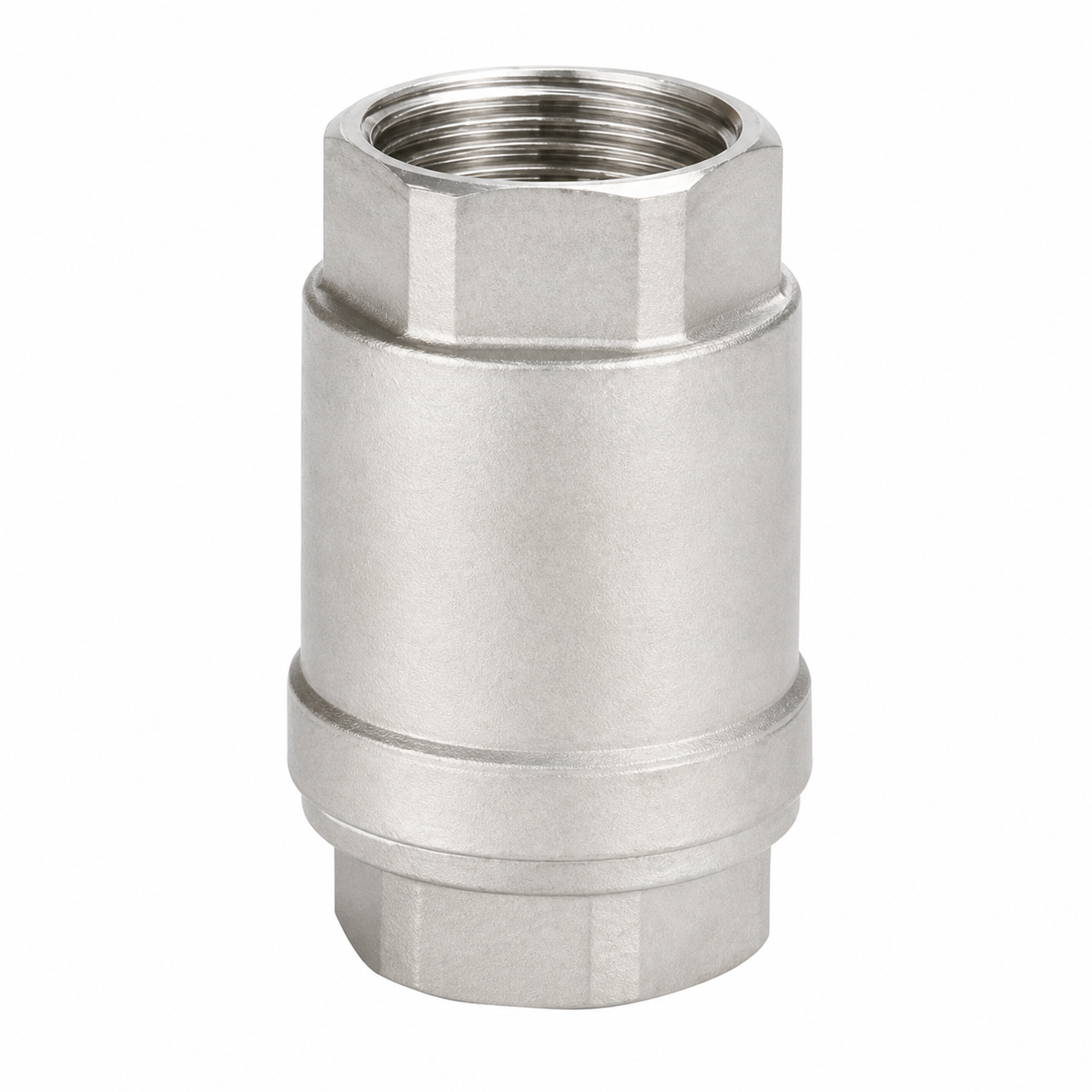

The Threaded Vertical Check Valve is a compact lift-check valve for vertical threaded pipeline installations. It helps prevent reverse flow in fluid-control systems while keeping installation space and connection requirements simple.
Main Parts Material
| Configuration | Body, Guide Sleeve and Disc | Sealing Surface |
|---|---|---|
| A | Chromium Molybdenum Titanium Stainless Steel | Same as body material |
| B | Chromium Nickel Molybdenum Titanium Stainless Steel | Same as body material |
| C | Carbon Steel | Hard Alloy Overlay |

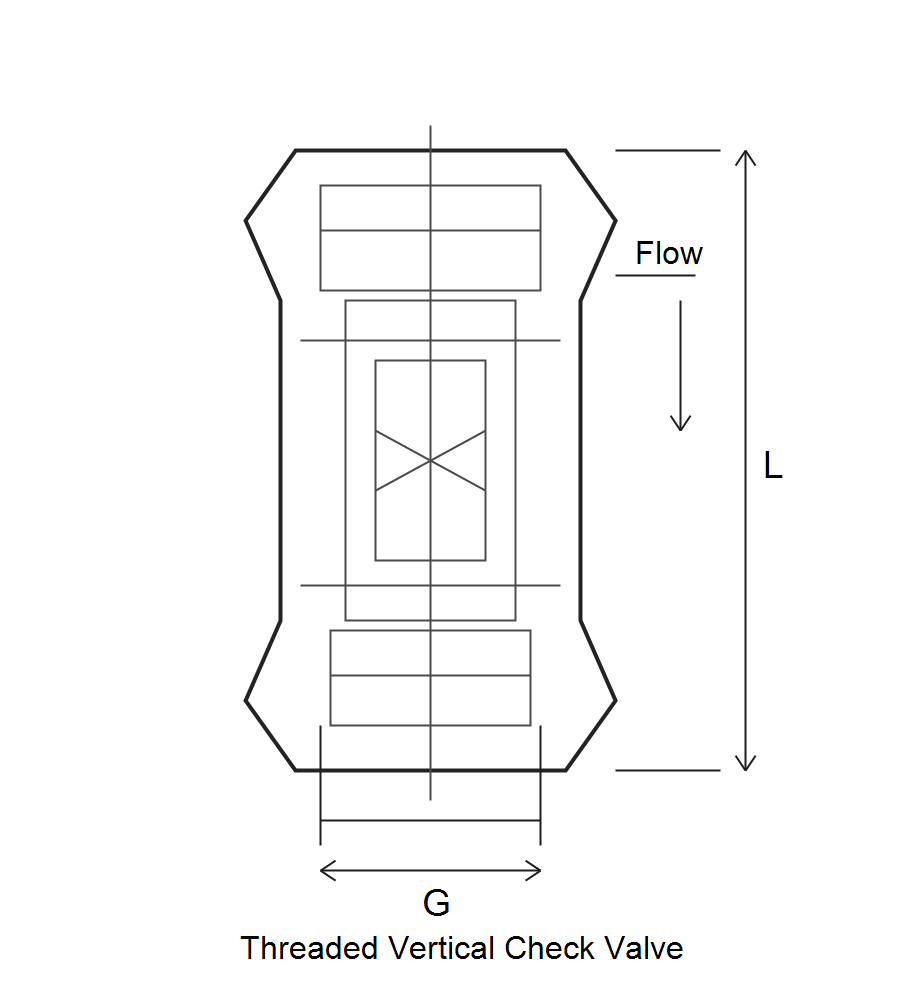

Main Dimensions and Weight
| DN (mm) | G | L (mm) | Weight (g) |
|---|---|---|---|
| 15 | 1/2″ | 60 | 164 |
| 20 | 3/4″ | 63 | 220 |
| 25 | 1″ | 80 | 375 |
| 32 | 1-1/4″ | 87 | 469 |
| 40 | 1-1/2″ | 98 | 751 |
| 50 | 2″ | 110 | 1083 |
