Product Details

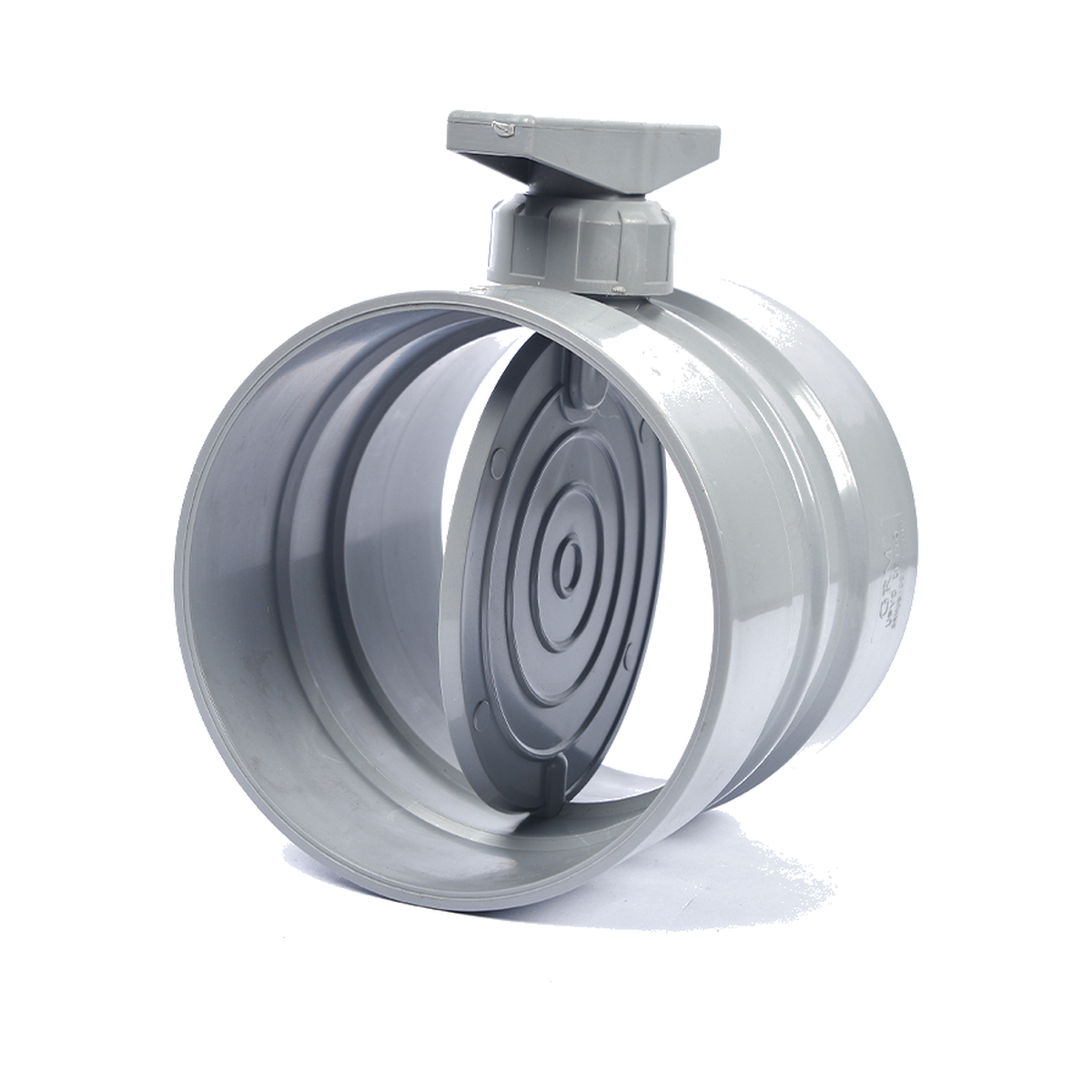

The UPVC Butterfly Valve is designed for plastic duct and low-pressure fluid-control systems. The lightweight UPVC body provides corrosion resistance, while the central disc structure allows simple open-close flow control in ventilation, chemical, water-treatment, and compatible process piping applications.

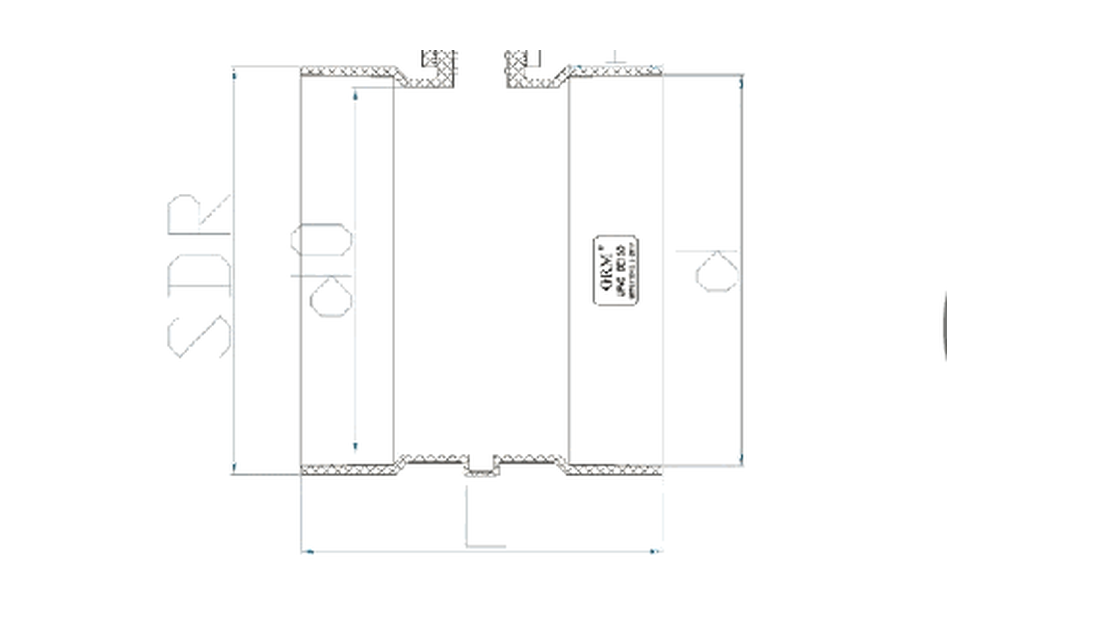

Dimensions (mm)
| Size(d) | d0 | I | L | SDR |
|---|---|---|---|---|
| 63 | 59 | 26 | 90 | 30 |
| 75 | 70 | 28 | 94 | 30 |
| 90 | 85 | 29 | 103 | 30 |
| 110 | 104 | 29 | 112 | 50 |
| 160 | 152 | 38 | 150 | 50 |
| 200 | 192 | 42 | 162 | 60 |
| 250 | 241 | 46 | 190 | 70 |
| 315 | 303 | 50 | 205 | 70 |
