Ordering Code
Specification
| Model | AFR1500 | AFR2000 | BFR2000 | BFR3000 | BFR4000 | |
| Operating Fluid | Air | |||||
| Joint Pipe Bore | G1/8“ | G1/4“ | G1/4“ | G3/8“ | G1/2“ | |
| Range of Adjustable Pressure | 0.05~0.85MPa | |||||
| Max.Adjustable Pressure | 0.95MPa | |||||
| Ensured Pressure Resistance | 1.5MPa | |||||
| Operating Temperature Range | 5~60℃ | |||||
| Capacity of Oil Feed Cup | 15cc | 60cc | ||||
| Weight | 0.26KG | 0.4KG | ||||
| Material | Body | Aluminum Die-casting Forming | ||||
| Container Cup | PE | |||||
| Protective Cup Cover | – | Iron | ||||

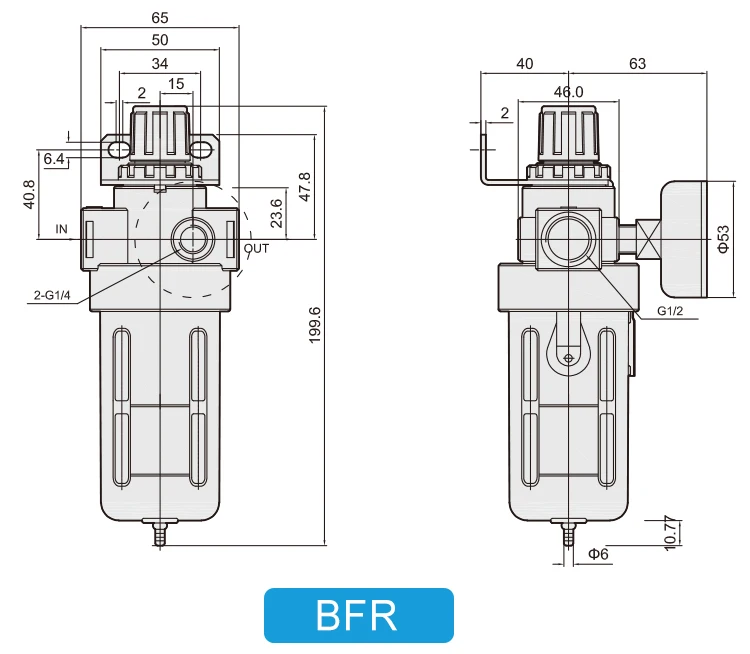

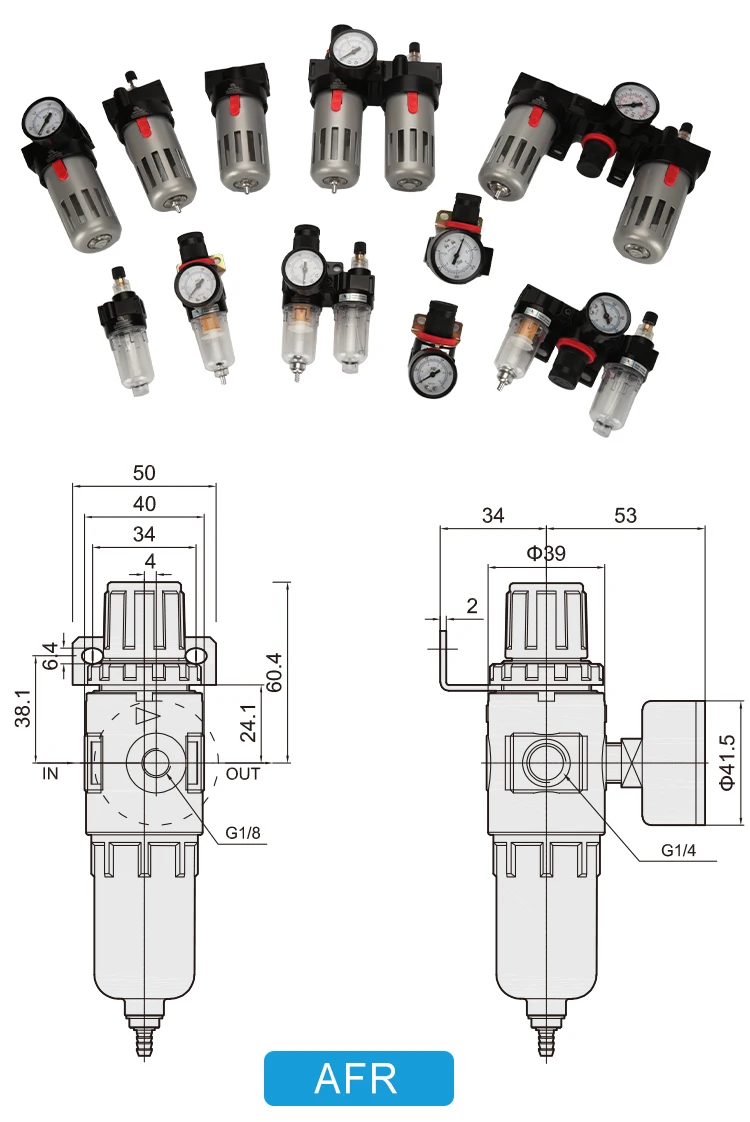

Dimension
