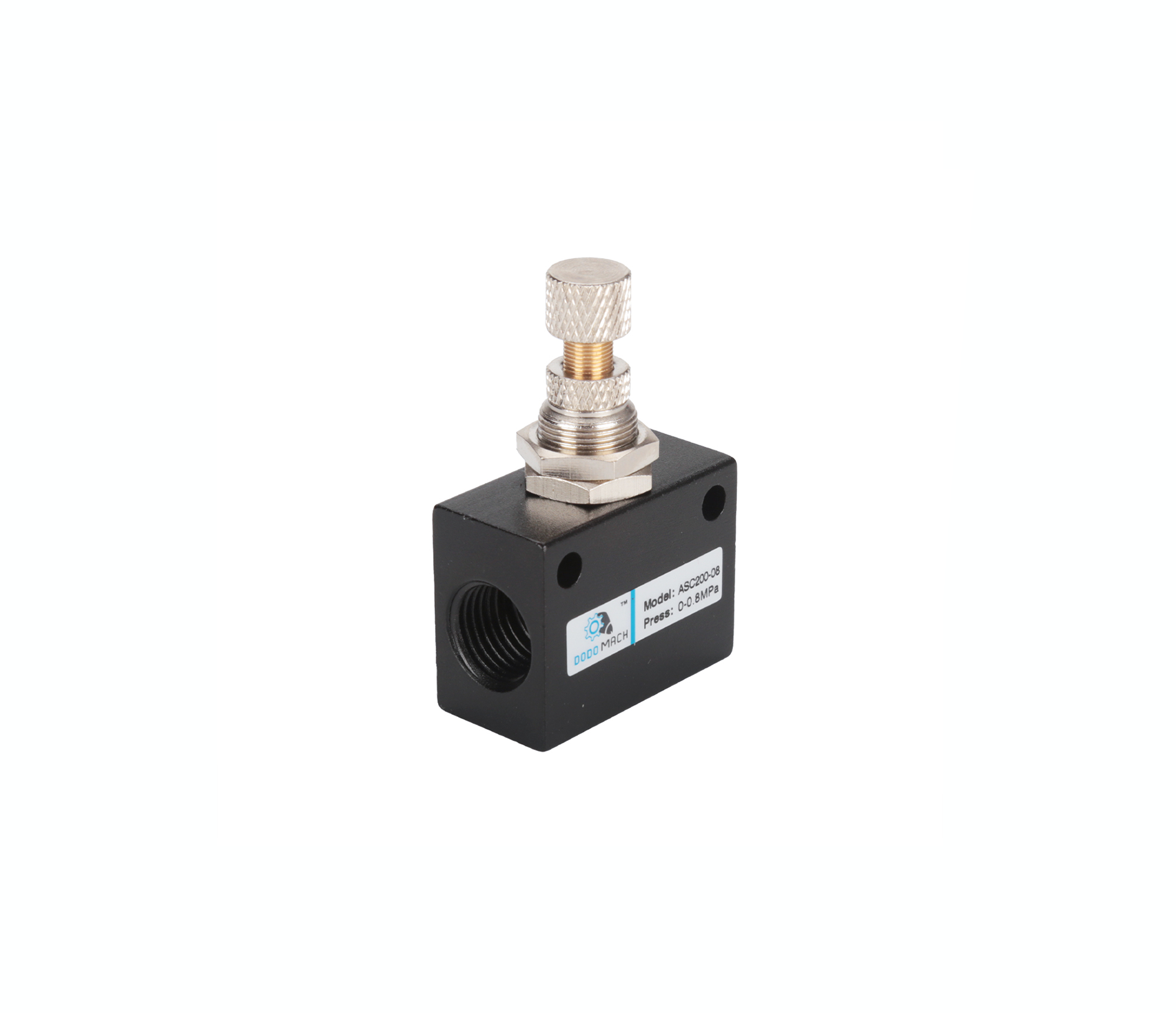

Ordering Code
Specification
| Model | ASC100-06 | ASC200-08 | ASC300-10 | ASC300-15 | |
| Port Size | 1/8″ | 1/4″ | 3/8″ | 1/2″ | |
| Working Medium | Air(to be filtered by 40μm filter element) | ||||
| Working Pressure | 0.05～0.95 MPa | ||||
| Proof Pressure | 1.5 MPa | ||||
| Temperature | -20～70℃ | ||||
| Material of body | Aluminum alloy | ||||
| Flow (L/min) |
Control flow | 200 | 450 | 1250 | 1650 |
| Free flow | 400 | 800 | 1500 | 2500 | |
ASC Dimension
| Model | A | B | C | CA | CB | CD | D | E | F | K | KA | KB | L | P | PA |
| ASC100-06 | 32 | 18 | 52.5 | 47 | 26 | 8.6 | 23 | M6x0.5 | M12x0.75 | 4.3 | 22 | 18 | M4x0.7 | 1/8″ | 10.0 |
| ASC200-08 | 36 | 18 | 56.5 | 51 | 30 | 8.6 | 27 | M6x0.5 | M12x0.75 | 4.3 | 26 | 23 | M4x0.7 | 1/4″ | 13.5 |
| ASC300-10 | 50 | 28 | 74 | 65 | 40.5 | 10 | 37 | M8x0.75 | M16x1.0 | 5.3 | 35 | 32 | M4x0.7 | 3/8″ | 17.5 |
| ASC300-15 | 50 | 28 | 74 | 65 | 40.5 | 10 | 37 | M8x0.75 | M16x1.0 | 5.3 | 35 | 32 | M4x0.7 | 1/2″ | 17.5 |
