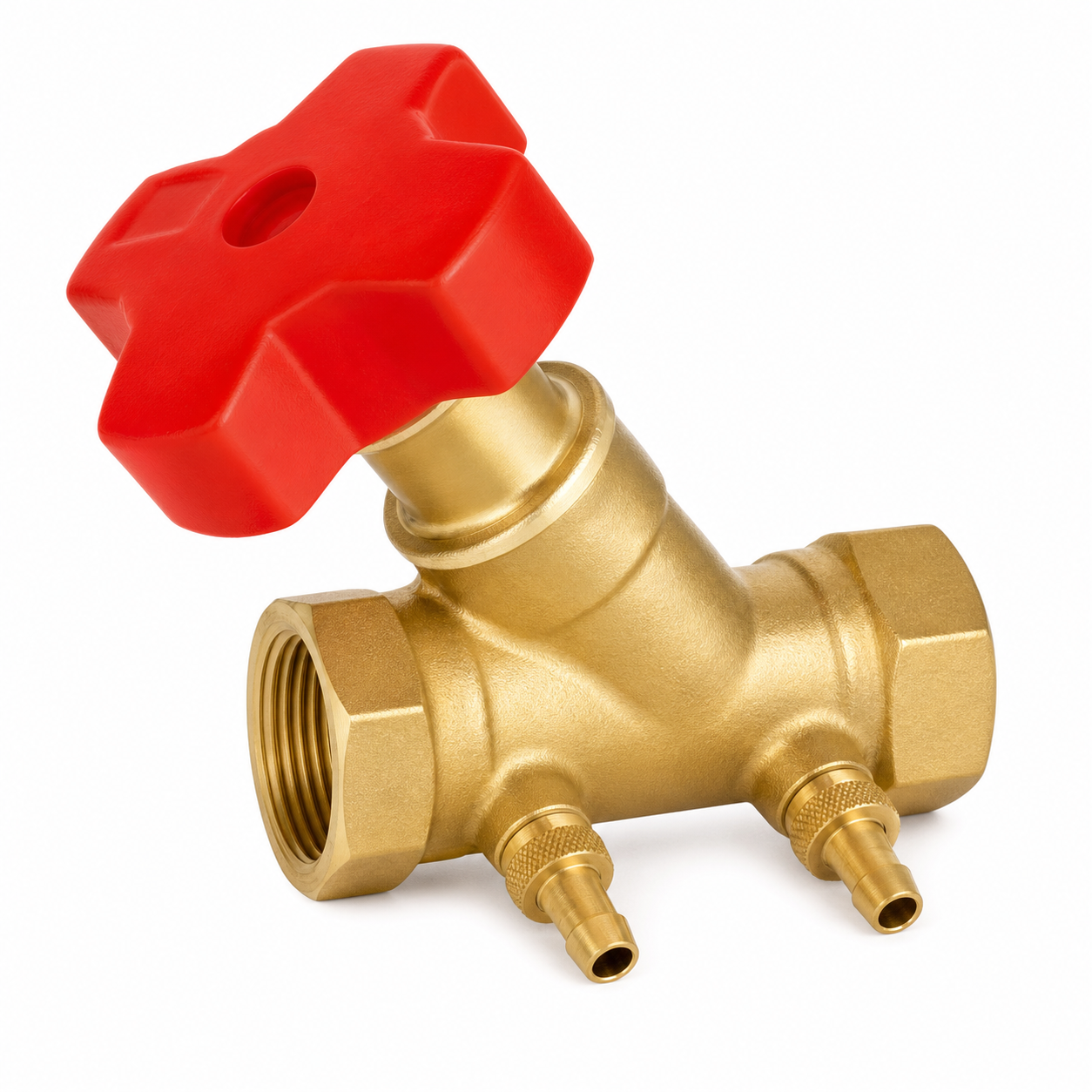

The Angled Brass Balance Valve With Red Handwheel is designed for water, oil, and heating service. The angled balancing structure includes threaded end connections and lower test ports for system balancing applications.

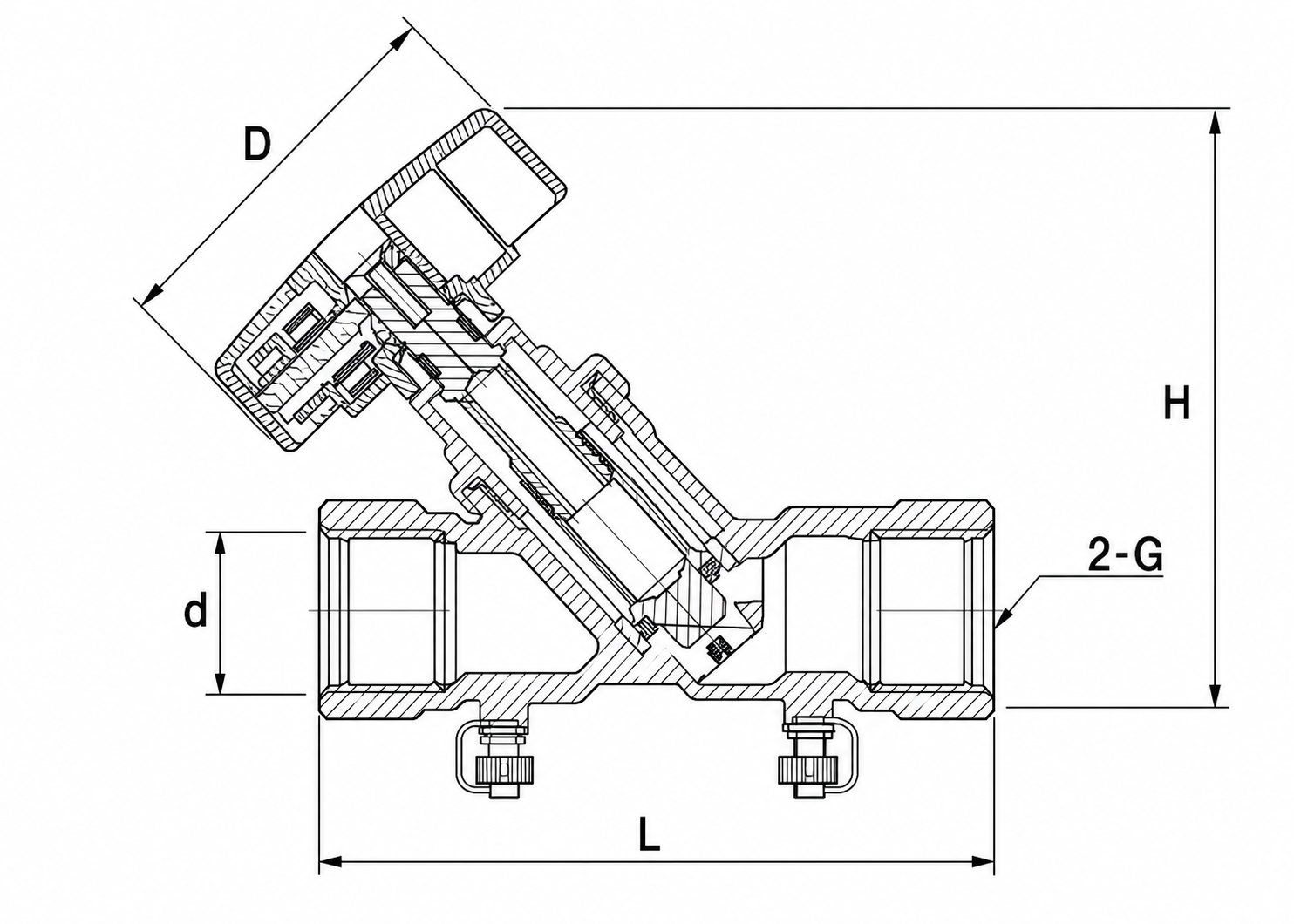

Main Dimensions
| DN | Size | L | H | D |
|---|---|---|---|---|
| 15 | 1/2" | |||
| 20 | 3/4" | 80 | 89.5 | 70 |
| 25 | 1" | 93 | 92.5 | 70 |
| 32 | 1-1/4" | 85 | 94 | 70 |
| 40 | 1-1/2" | 98 | 110 | 70 |
| 50 | 2" | 110 | 120 | 70 |
Technical Standard
| Normal Pressure | 1.6 MPa |
|---|---|
| Working Medium | Water, oil, heating |
| Working Temperature | -20 C ≤ T ≤ 120 C |
| Thread Standard | ISO 228 |
